Bosch DICENTIS DCNM-DSL Capabilities
Explore the key capabilities of the DCNM-DSL for professional conference applications.
Flexible User Modes
Configure the device for single participant, dual-use, or chairperson operation.
Clear Speech Intelligibility
High signal-to-noise performance supports clear speech, with loudspeaker and microphone operation at the same time.
Secure Communication
System encryption helps keep conference information confidential during communication.
NFC Identification
Built-in NFC reader supports fast participant identification with compatible contactless tags.
Language Selection
The integrated 1.44-inch LCD supports participant language selection for listening to the preferred language.
Flexible Interconnections
Supports a pluggable microphone, dual stereo headphone sockets, two RJ45 connections, and hot plug-and-play.
Bosch DICENTIS DCNM-DSL Language Selection & Delegate Identification
Delegates can select an available language on the DCNM-DSL display and listen through headphones. The built-in NFC reader supports participant identification, while individual volume controls let delegates adjust their listening level.
Clear Language Selection
The 1.44-inch display shows the selected language in its native characters, making it easier for delegates to find the language they need.
NFC Participant Identification
The built-in NFC reader supports identification with a compatible registration card.
Microphone Participation Controls
The device provides microphone controls and status indicators for requesting and taking the floor.
Personal Headphone Listening
Two headphone connections and separate volume controls let participants adjust their own listening level.
DICENTIS tabletop conference devices
DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.
DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.

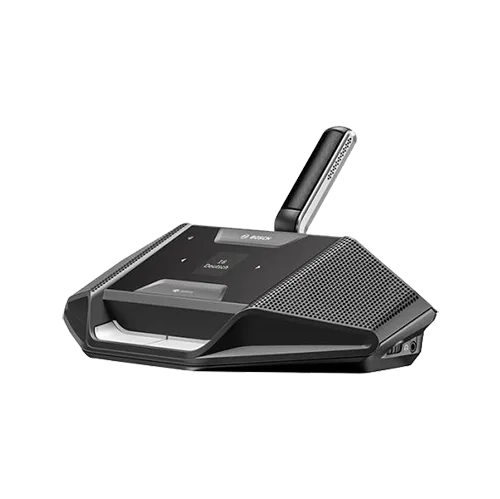

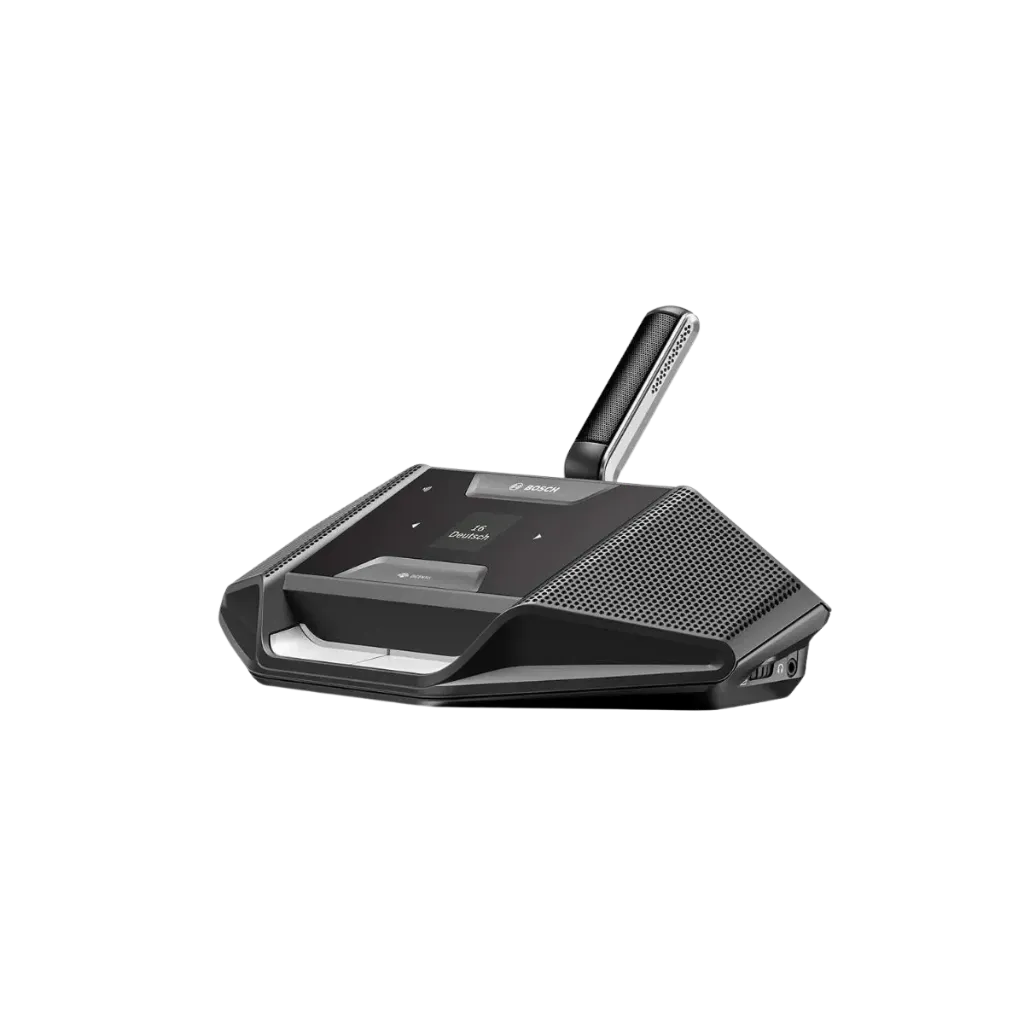

DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.
DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.
DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.
Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- 1.44-inch LCD language selector
- NFC reader (ISO/IEC 14443 Type A)
- Language select and ID with Premium
- Single, dual use or chairperson
- Built-in loudspeaker, encrypted audio
- 2 headphone sockets, separate volume
- 2 x RJ45, 48 VDC, 3.6 W
- Microphone sold separately
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
