DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
Bosch DICENTIS DCNM-DE Capabilities
Explore the key capabilities of the DCNM-DE for professional conference applications.
4.3-Inch Touchscreen
Capacitive multitouchscreen provides an intuitive interface for supported DICENTIS functions.
Built-In NFC Reader
Integrated NFC reader supports participant identification with compatible DICENTIS software licenses.
Flexible User Modes
Configure the device for single-use, dual-use or chairperson operation as required.
Interactive Conference Functions
Access the speaker and request list, speech countdown and other supported conference functions.
Headphone Connectivity
Two 3.5 mm stereo headphone connections support compatible headphones with adjustable volume.
IP-Based Connectivity
Two RJ45 connections provide DICENTIS system communication and power connectivity.

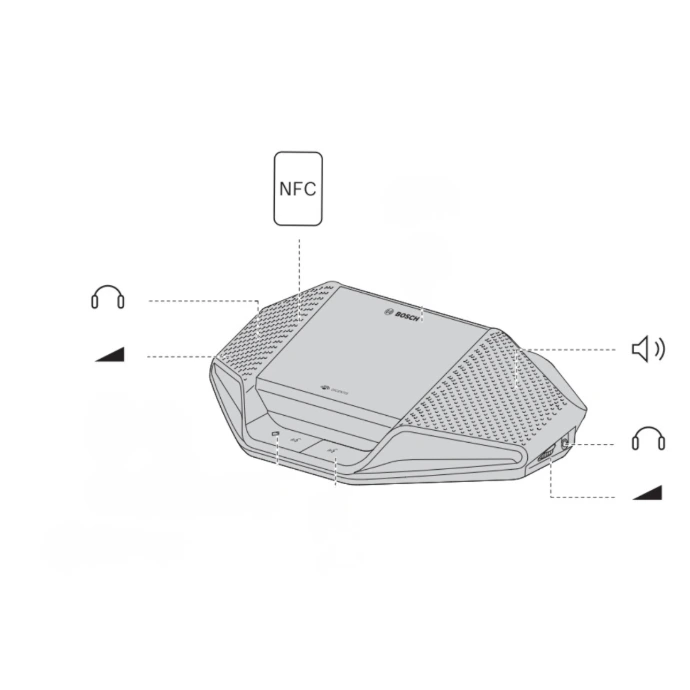

Touchscreen Controls & Personal Listening
The Bosch DCNM-DE combines intuitive touchscreen controls, participant identification, built-in loudspeaker and individual headphone adjustment to help participants follow and actively engage in the meeting.
Touchscreen Meeting Controls
Use the 4.3-inch capacitive touchscreen to view meeting information, including the current speaker, request list and available discussion functions.
NFC Participant Identification
The built-in NFC reader enables fast participant identification and supports convenient access to personalized meeting functions.
Individual Headphone Control
Headphone connections on both sides provide independent volume adjustment, allowing participants to set their preferred listening level.
Built-In Loudspeaker
Listen through the integrated loudspeaker, with built-in feedback suppression supporting simultaneous microphone and loudspeaker operation.
DICENTIS tabletop conference devices
DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.
DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.
DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.
DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.
DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.
Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- 4.3-inch capacitive touchscreen
- NFC reader (ISO/IEC 14443 Type A)
- Single, dual use or chairperson
- Speaker and request list on screen
- Voting, language, ID with Premium
- Built-in loudspeaker, 2 headphone sockets
- 2 x RJ45, 48 VDC, 5 W
- Microphone sold separately
|
Electrical |
|
|
Supply voltage |
48 VDC |
|
Power consumption |
5 W |
|
Frequency response |
100 Hz to 20 kHz (-3 dB at nominal level) |
|
THD at nominal level |
< 0.1 % |
|
Dynamic range |
> 90 dB |
|
Signal‑to‑noise ratio |
> 90 dB |
|
Audio inputs |
|
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
Loudspeaker maximum output |
87 dB SPL |
|
Audio outputs |
|
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
Loudspeaker maximum output |
87 dB SPL |
|
Headphone nominal output |
0 dBV |
|
Headphone maximum output |
3 dBV |
|
Headphone load impedance |
> 32 ohm <1k ohm |
|
Headphone output power |
65 mW |
|
General |
|
|
Screen size |
109.22 mm (4.3 in) |
|
Screen type |
Capacitive multi-touch |
|
Supported contactless NFC tag |
According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
|
Mechanical |
|
|
Mounting |
Tabletop |
|
Dimensions (H x W x D) without microphone |
72 x 259 x 139 mm (2.8 x 10.2 x 5.5 in) |
|
Color (top and base) |
Traffic black (RAL 9017) |
|
Weight |
Approx. 1035 g (2.3 lb) |
|
Environmental |
|
|
Operating temperature Storage and transport temperature |
5 ºC to +45 ºC |
|
-30 ºC to +70 ºC |
|
|
Relative humidity |
< 90 %, > 5% |
Know before you buy
Quick answers about the DCNM-DE, and how it compares.
What can participants do on the DCNM-DE touchscreen?
The 4.3-inch capacitive touchscreen shows the current speaker, the request list and the speech countdown timer, with interface languages in their original characters. With a Premium license, participants can also vote (Present, For, Against, Abstain, DNPV) and choose their interpretation language on the screen.
In dual use, the two participants sharing one DE can each listen in their own language and cast their own vote.
Which DICENTIS discussion device should I choose?
| Model | Screen | NFC ID | Voting | Language select | Dual use |
|---|---|---|---|---|---|
| DCNM-D | No | No | No | No | Yes |
| DCNM-DE | 4.3-inch touch | Yes | On screen | On screen | Yes |
| DCNM-DSL | 1.44-inch LCD | Yes | No | Yes | Yes |
| DCNM-DVT | No | Yes | 5 buttons | No | No |
All four have a request-to-speak button, a built-in loudspeaker, two headphone sockets with their own volume, encrypted audio, and two network sockets for loop-through cabling. All can be set as a chairperson device. Discussion, chairperson and dual use work without a license. NFC ID, voting and language selection need a Premium license.
Do DICENTIS discussion devices need a software license?
For the wired DICENTIS Conference System, basic discussion works without a license once the system is registered: request to speak, chairperson priority, dual use (two participants on one device), camera control and interpretation from the interpreter desk. These seat functions need a Premium or Ultimate license:
| Device | Works without a license | Needs Premium for |
|---|---|---|
| DCNM-D | Discussion, dual use, chairperson | Speech timer, response mode, agenda |
| DCNM-DE | Discussion, dual use, chairperson | NFC ID, voting and language on screen |
| DCNM-DSL | Discussion, dual use, chairperson | Language selection, NFC ID |
| DCNM-DVT | Discussion, chairperson | Voting buttons, NFC ID |
| DCNM-MMDOCK | Discussion, chairperson | NFC ID, voting, language selection |
| DCNM-MMFF | Discussion, chairperson | NFC ID, voting, language selection |
The DCNM-DVT voting buttons do not work without a Premium license.
Order one license per participant in the meeting (a dual use seat counts as two). Two ways to buy:
- Perpetual, pay once: Premium DCNM-LPP-PE or Ultimate DCNM-LPU-PE. The license is yours permanently. Software maintenance (updates) is included for the first year, then renewed yearly with DCNM-LPSMA-PE.
- Professional, pay yearly: the same Premium or Ultimate features, renewed every year. Software maintenance and the Participant App are included in the yearly fee.
DICENTIS Wireless (DCNM-WD / DCNM-WDE) works differently: it still uses per-seat licenses, such as DCNM-LSDU for dual use, DCNM-LSVT for voting and DCNM-LSID for identification.
Does the DCNM-DE identify participants?
Yes. Its built-in NFC reader (ISO/IEC 14443 Type A) reads a participant card, so each person is recognised at their seat. Identification needs a Premium license.
Is a microphone included?
No. DICENTIS discussion devices come without a microphone, so you choose one for each seat: the DCNM-HDMIC high directive microphone, or the DCNM-MICS (short) or DCNM-MICL (long) stem microphone. All three click into the same socket.
The screw-lock DCNM-MICSLS / DCNM-MICSLL are for flush seats and do not fit these devices.
What are loop-through and cable redundancy?
DICENTIS devices are daisy-chained: each device connects to the next with one network cable. The last device in the loop can be connected back to a DCNM-APS2 or DCNM-PS2, so the loop is fed from both ends. If one cable is damaged, the devices stay powered and connected from the other side.
Who supplies Bosch DICENTIS in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch DICENTIS across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
