Acoustically Challenging Rooms
Designed for clear speech pickup in noisy or acoustically difficult conference environments.
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow

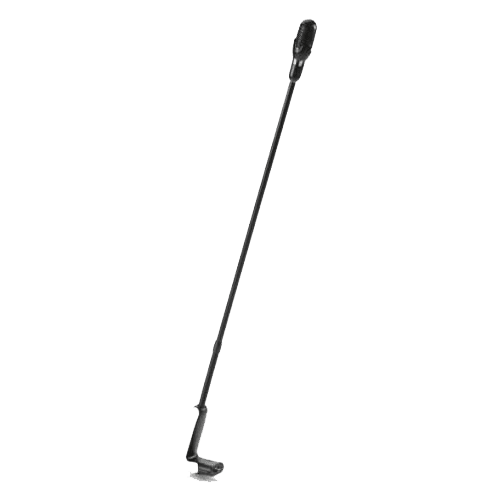

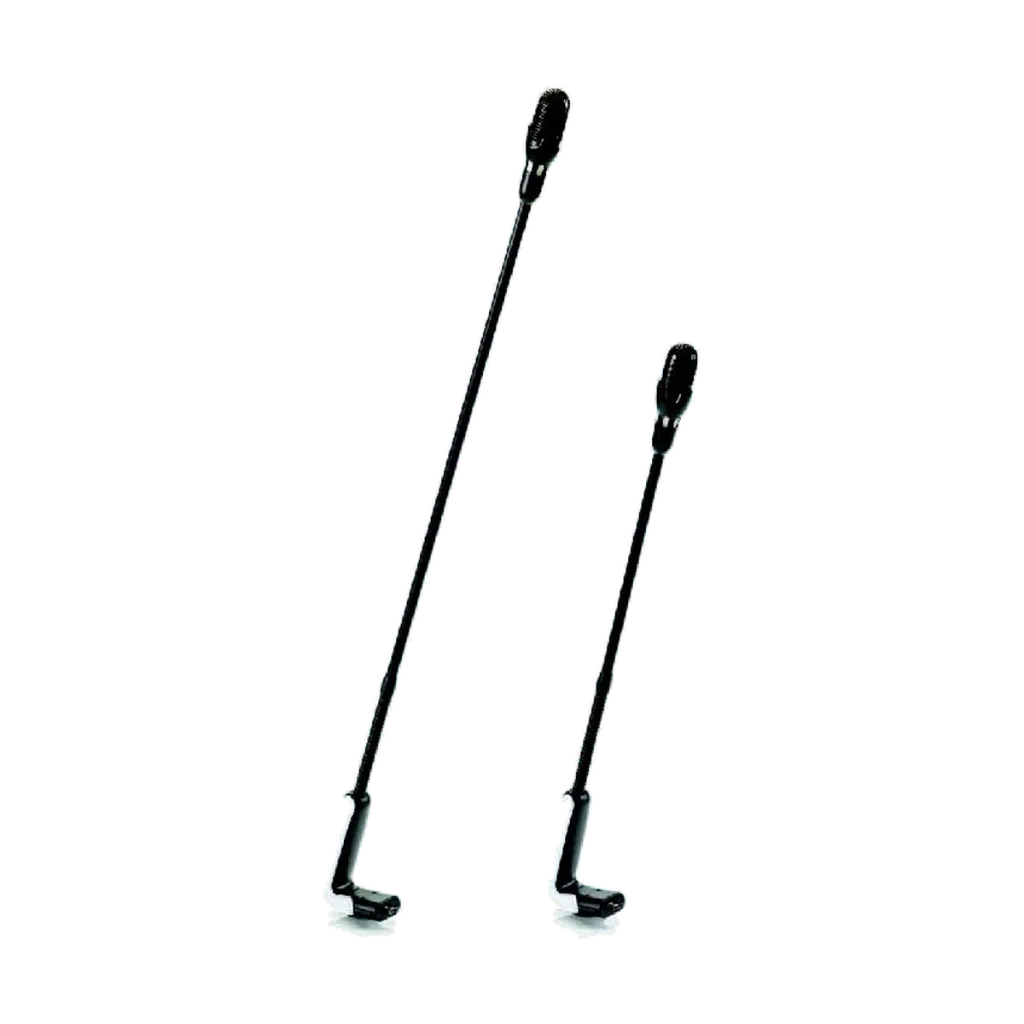

Bosch DCNM-MICS Product Highlights
Explore the key features of the Bosch DCNM-MICS Short Stem Microphone, designed for clear speech pickup, easy connection and reliable use in professional DICENTIS environments.
Uni-Directional Pickup
The uni-directional microphone focuses on the speaker’s voice and is designed for optimum performance in noisy or acoustically challenging rooms.310 mm Adjustable Short Stem
The microphone features an adjustable 310 mm short stem, providing flexible positioning while maintaining a compact conference setup.
Built-In Plop & Windshield
The DCNM-MICS includes a built-in plop and windshield as part of its microphone design.
Low Mobile Phone Susceptibility
The microphone is designed with low susceptibility to interference from mobile phones, supporting reliable conference operation.
Red & Green Status Illumination
Integrated illumination provides clear status feedback: red indicates the microphone is active, while green indicates an accepted speech request.
DICENTIS & Wireless Compatibility
The microphone uses a plug-and-fasten connection and is specified for both the DICENTIS Conference System and DICENTIS Wireless Conference System.
Bosch DCNM-MICS Components & Connection
Understand the key components and guided locking connection of the Bosch DCNM-MICS Short Stem Microphone for compatible DICENTIS devices.
DICENTIS microphone components and connection references
Connector alignment and locking mechanism detail
1
LED Indicator
Provides visual microphone and speech-request status.
2
Microphone Grill
Houses the microphone pickup section at the top of the stem.
3
Adjustable Stem
Allows the microphone position to be adjusted for the speaker.
4
Connection Guidance
Helps correctly align the microphone with the device connector.
5
Slider Guidance
Guides the locking mechanism during connection and release.
6
Connector Plug
Connects the microphone directly to the DICENTIS device.
7
Lock Slider
Slides toward the device when releasing the microphone.
8
Connection Lock
Secures the microphone connector after it clicks into place.
9
Device Connector
Receives the microphone connector on a compatible DICENTIS device.
Plug-and-Lock Connection
Align the connection guidance with the DICENTIS microphone connector, then gently push the connector plug until the lock clicks into place. To remove the microphone, operate the lock slider and pull the microphone out carefully.
DICENTIS microphone components and connection references
Connector alignment and locking mechanism detail
1
LED Indicator
Provides visual microphone and speech-request status.
2
Microphone Grill
Houses the microphone pickup section at the top of the stem.
3
Adjustable Stem
Allows the microphone position to be adjusted for the speaker.
4
Connection Guidance
Helps correctly align the microphone with the device connector.
5
Slider Guidance
Guides the locking mechanism during connection and release.
6
Connector Plug
Connects the microphone directly to the DICENTIS device.
7
Lock Slider
Slides toward the device when releasing the microphone.
8
Connection Lock
Secures the microphone connector after it clicks into place.
9
Device Connector
Receives the microphone connector on a compatible DICENTIS device.
Plug-and-Lock Connection
Align the connection guidance with the DICENTIS microphone connector, then gently push the connector plug until the lock clicks into place. To remove the microphone, operate the lock slider and pull the microphone out carefully.
Applications of Bosch DCNM-MICS
Explore where the Bosch DCNM-MICS Short Stem Microphone is best suited, from acoustically challenging spaces and standing speaker positions to flexible DICENTIS Wireless setups.
Standing Speakers & Rostrum Use
The adjustable stem can be set for participants who stand to speak.
DICENTIS Wireless Setups
Compatible with DICENTIS Wireless Conference System devices for flexible meeting configurations.
Acoustically Challenging Rooms
Designed for clear speech pickup in noisy or acoustically difficult conference environments.
Standing Speakers & Rostrum Use
The adjustable stem can be set for participants who stand to speak.
DICENTIS Wireless Setups
Compatible with DICENTIS Wireless Conference System devices for flexible meeting configurations.
Key specs
- Uni-directional, 125 Hz to 15 kHz
- 310 mm adjustable stem, 91 g
- Click lock, DICENTIS tabletop and Wireless
- Max input 115 dB SPL, noise 15 dB SPL
- Dynamic range over 100 dB
- Built-in plop and windshield
- Red/green speaking indicator
- 5 VDC, 0.1 W
|
Electrical |
| |
|
Power supply |
5 VDC |
|
|
Power consumption |
0.1 W |
|
|
Bandwidth |
125 Hz - 15 kHz |
|
|
Dynamic range |
>100 dB |
|
|
Nominal input |
85 dB SPL |
|
|
Maximum input |
115 dB SPL |
|
|
Equivalent noise |
15 dB SPL |
|
|
Mechanical |
| |
|
Mounting |
Plug and fasten into DICENTIS device and DICENTIS Wireless Devices. |
|
|
Length |
480 mm (19.90 in) |
|
|
Connector |
77.15 x 60.47 mm (3.40 x 2.38 in) |
|
|
Weight |
108 g (0.24 lb) |
|
|
Color: |
Pearl light grey RAL 9022 |
|
|
Environmental |
| |
|
Operating temperature |
0 ºC to +45 ºC (32 ºF to +113 ºF) | |
|
Storage and transport temperature |
-20 ºC to +70 ºC (-4 ºF to +158 ºF) | |
|
Relative humidity |
< 95 %, > 5% | |
