Full-Function Multimedia Participation
The Bosch DCNM-MMFF brings meeting content, live video, secure identification, clear audio and essential participant controls together in one DICENTIS multimedia device.
10-Inch Multimedia Screen
Capacitive touchscreen for meeting data, documents, live video and internet access.
Android App Flexibility
Supports compatible third-party and custom apps for expanded meeting functionality.NFC Participant Identification
Built-in NFC reader and card slot support licensed participant identification workflows.
Integrated MEMS Microphones
Six built-in MEMS microphones provide unobtrusive audio capture and speaking freedom.
Accessible Haptic Controls
Haptic touch buttons and braille indications support intuitive meeting interaction.
Flexible Table Integration
Install the device on a tabletop or flush-mounted into a conference table.

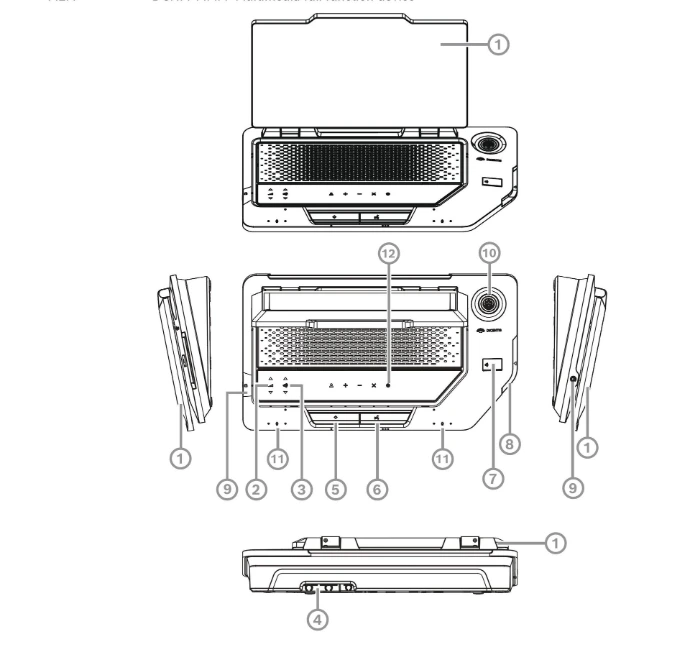

Bosch DCNM-MMFF Controls & Connections
Explore the integrated display, audio, identification and meeting controls that support full-function DICENTIS multimedia participation.
DICENTIS tabletop conference devices
DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.
DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.
DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.
DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.

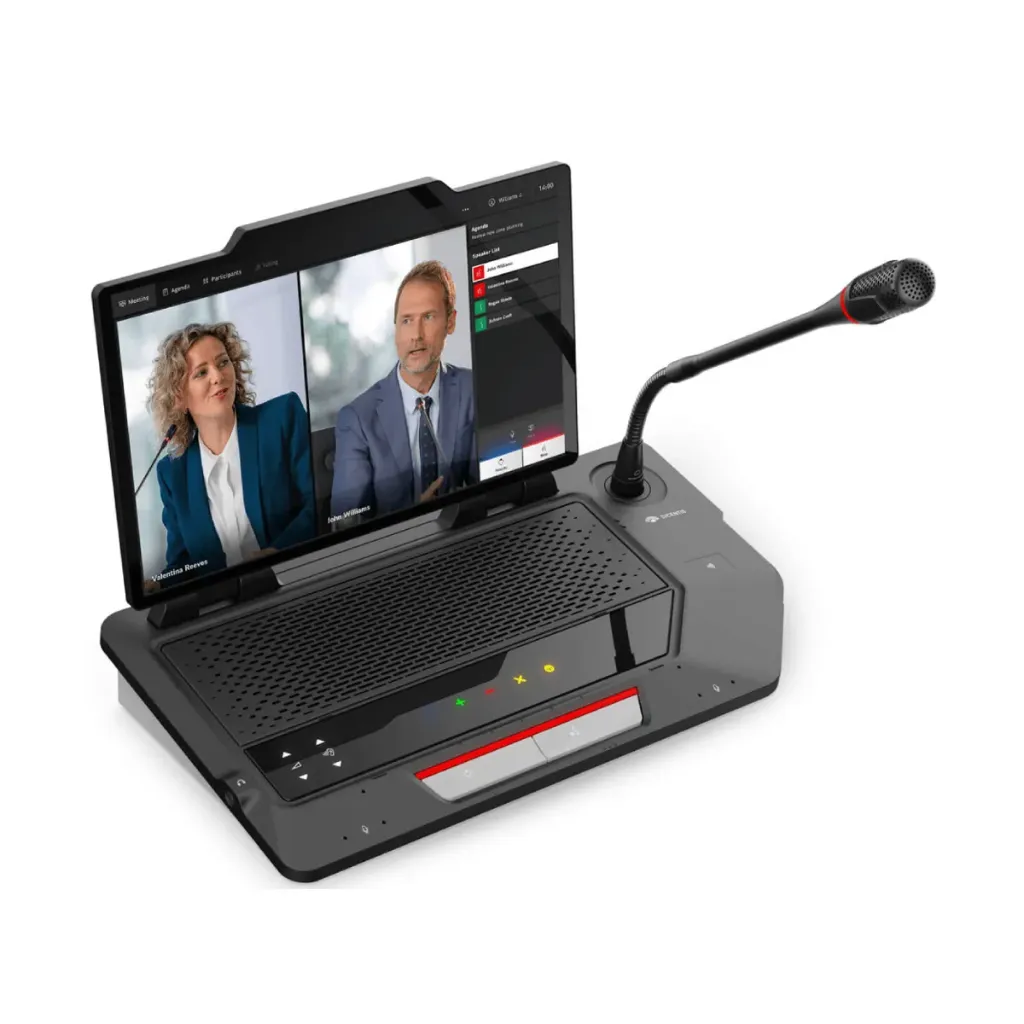

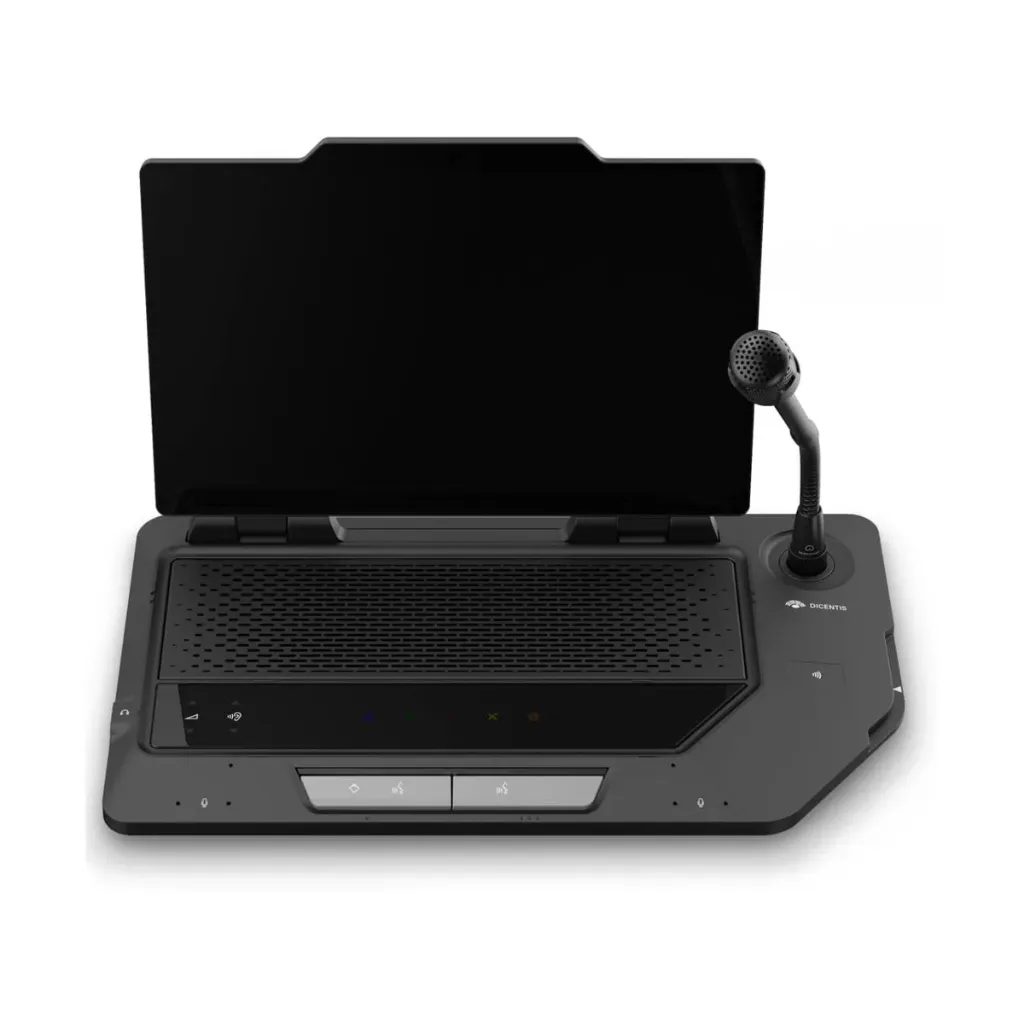

DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.
Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- 10-inch Android touchscreen, 1200 x 1920
- Agenda, documents, live video, apps
- 6 built-in MEMS microphones
- NFC reader with card slot
- Haptic buttons with Braille
- Socket for screw-lock microphone
- PoE+ 48 VDC, 18 W
- Tabletop or flush mount, 2.5 kg
Bosch DCNM-MMFF DICENTIS Multimedia Full Function Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / Series | Bosch / DICENTIS |
| Model | DCNM-MMFF |
| Official product type | Multimedia full function |
| Material number | F.01U.425.436 |
| Display & Multimedia | |
| Display size | 10 in |
| Display resolution | 1200 × 1920 px |
| Touchscreen | Capacitive multitouch |
| Camera | 13 MP |
| Operating system | Android-based device |
| Screen adjustment | 0° to 180° |
| Supported content | Meeting data, documents, live video, internet access, third-party and custom apps |
| Electrical Performance | |
| Input voltage | 48 VDC |
| PoE input | PoE+ IEEE 802.3at Type 2, Class 4 |
| Power consumption — without tablet / locally powered via USB-C adapter | 12 W |
| Power consumption — with tablet / not powered locally | 18 W |
| Frequency response (−3 dB) | 100 Hz – 20,000 Hz |
| Total harmonic distortion + noise | 0.05% |
| Dynamic range | 96 dB |
| Minimum signal-to-noise ratio | 66 dB |
| NFC & Touch Functions | |
| NFC reader frequency | 13.56 MHz |
| Supported contactless NFC tag | ISO/IEC 14443 Type A (106–848 kbps); MIFARE (106 kbps) |
| Touch controls | Haptic-feedback controls for voting and language selection |
| Accessibility | Braille indications |
| Licence-dependent functions | Identification, voting and language selection require DICENTIS Premium or Ultimate licences |
| Audio Inputs | |
| Built-in microphones | 6 MEMS microphones |
| Nominal acoustic input level | 85 dB SPL, according to ISO 22259 (IEC 60914) |
| Maximum acoustic input level | 115 dB SPL, according to ISO 22259 (IEC 60914) |
| External microphone nominal input | −41 dBV |
| External microphone maximum input | −11 dBV |
| Audio Outputs | |
| Loudspeaker nominal output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Controls & Connections | |
| Base controls | Microphone on/off or request-to-speak; microphone mute or chairperson priority; power button |
| Status indications | Microphone on, request-to-speak and possible-to-speak |
| Pluggable microphone | Socket for compatible DICENTIS microphone |
| System connections | 2 × RJ45-compatible connections for system communication and power |
| Headphone / external microphone | 3.5 mm stereo jack |
| Connection method | Hot plug-and-play |
| Mechanical | |
| Mounting type | Tabletop or flush-mounted |
| Tabletop dimensions, open screen (H × W × D) | 222 × 310 × 179 mm (8.74 × 12.2 × 7.05 in) |
| Tabletop dimensions, closed screen (H × W × D) | 60 × 310 × 179 mm (2.36 × 12.2 × 7.05 in) |
| Flush-mounted dimensions, open screen (H × W × D) | 181 × 310 × 179 mm (7.13 × 12.2 × 7.05 in) |
| Flush-mounted dimensions, closed screen (H × W × D) | 19 × 310 × 179 mm (0.75 × 12.2 × 7.05 in) |
| Weight | 2.5 kg (5.5 lb) |
| Colour | Traffic black (RAL 9017) / Pearl light grey (RAL 9022) |
| Environmental Conditions | |
| Operating temperature | 0 °C – 35 °C (32 °F – 95 °F) |
| Storage temperature | −20 °C – 60 °C (−4 °F – 140 °F) |
| Operating relative humidity, non-condensing | 5% – 90% |
Know before you buy
Quick answers about the DCNM-MMFF, and how it compares.
What can participants do on the DCNM-MMFF screen?
The 10-inch capacitive touchscreen (1200 x 1920, Android) shows:
- Agenda and meeting data
- Documents: Word, Excel, PowerPoint, PDF, RTF and plain text
- Live video, for example of the current speaker (H.264 / H.265, .mp4 / .3gp)
- Internet browsing
- Meeting management for the chairperson
- Third-party and custom apps
The screen tilts from 0° to 180°, for a clear view even when standing and without reflections. The device also has a 13 MP camera.
DCNM-MMDOCK or DCNM-MMFF: which multimedia seat should I choose?
| DCNM-MMDOCK | DCNM-MMFF | |
|---|---|---|
| Screen | Your own 10 to 14-inch tablet | Built-in 10-inch Android touchscreen (1200 x 1920) |
| On the screen | DICENTIS Participant App on the tablet | Agenda, documents, live video, internet, third-party and custom apps |
| Without the screen | All functions also on the base | Key functions on both screen and base |
| Screen angle | 0 to 120° | 0 to 180° |
| Microphones | 6 built-in MEMS microphones, plus a socket for a screw-lock microphone | |
| Identification | NFC reader with card slot | |
| Buttons | Haptic touch buttons with Braille indications | |
| Power (PoE+, 48 VDC) | 11 W, or 18 W when charging the tablet from the system | 18 W |
| Mounting | Tabletop or flush in the table | |
| Weight | 2.2 kg | 2.5 kg |
Choose the MMDOCK to use tablets you pick and replace yourself. Choose the MMFF for a ready, all-in-one seat with its own screen.
What happens if the screen is busy or not in use?
All critical meeting functions are built in twice, on the screen and on the base, so the meeting is not disturbed. The base has the microphone / request-to-speak button, mute or chairperson priority, haptic voting and language buttons, and the NFC reader with card slot.
Do DICENTIS discussion devices need a software license?
For the wired DICENTIS Conference System, basic discussion works without a license once the system is registered: request to speak, chairperson priority, dual use (two participants on one device), camera control and interpretation from the interpreter desk. These seat functions need a Premium or Ultimate license:
| Device | Works without a license | Needs Premium for |
|---|---|---|
| DCNM-D | Discussion, dual use, chairperson | Speech timer, response mode, agenda |
| DCNM-DE | Discussion, dual use, chairperson | NFC ID, voting and language on screen |
| DCNM-DSL | Discussion, dual use, chairperson | Language selection, NFC ID |
| DCNM-DVT | Discussion, chairperson | Voting buttons, NFC ID |
| DCNM-MMDOCK | Discussion, chairperson | NFC ID, voting, language selection |
| DCNM-MMFF | Discussion, chairperson | NFC ID, voting, language selection |
The DCNM-DVT voting buttons do not work without a Premium license.
Order one license per participant in the meeting (a dual use seat counts as two). Two ways to buy:
- Perpetual, pay once: Premium DCNM-LPP-PE or Ultimate DCNM-LPU-PE. The license is yours permanently. Software maintenance (updates) is included for the first year, then renewed yearly with DCNM-LPSMA-PE.
- Professional, pay yearly: the same Premium or Ultimate features, renewed every year. Software maintenance and the Participant App are included in the yearly fee.
DICENTIS Wireless (DCNM-WD / DCNM-WDE) works differently: it still uses per-seat licenses, such as DCNM-LSDU for dual use, DCNM-LSVT for voting and DCNM-LSID for identification.
Do I need a pluggable microphone?
No. Six built-in MEMS microphones can be the main meeting microphone or a backup. If you want a visible microphone, add a screw-lock one: DCNM-MICSC (short) or DCNM-MICLC (long) with a cardioid pattern, or DCNM-MICSWC / DCNM-MICLWC with a wide cardioid pattern. The 3.5 mm jack also takes headphones, an external microphone or a headset microphone.
Can visually impaired participants use it?
Yes. The touch buttons for voting and language selection give haptic feedback, and Braille indications mark them. Indicators show when the microphone is on, when a request to speak is waiting, and when the participant may speak.
Who supplies Bosch DICENTIS in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch DICENTIS across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
