Designed for Structured, Accountable Decisions
The Bosch DCNM-DVT combines focused discussion, participant recognition and clear voting controls for professionally managed DICENTIS meetings.
Five-Option Voting
Five colour coded capacitive buttons support Present, For, Against, Abstain and DNPV voting choices.
Chairperson Ready
Configure the device through DICENTIS software for single participant or chairperson use in each meeting.NFC Identification
The built-in NFC reader supports fast participant recognition with compatible contactless identification cards.
Clear Speech Audio
The loudspeaker and microphone can operate together, with feedback suppression for face-to-face discussions.
Encrypted Communication
DICENTIS encryption protects meeting information as it moves across the connected conference system.
Flexible Connections
Connect a pluggable microphone, two headphones and system cabling through dedicated device connections.

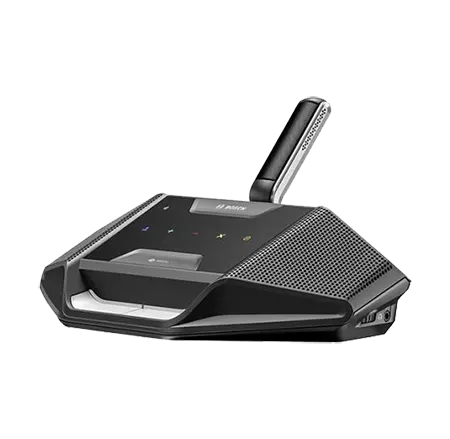

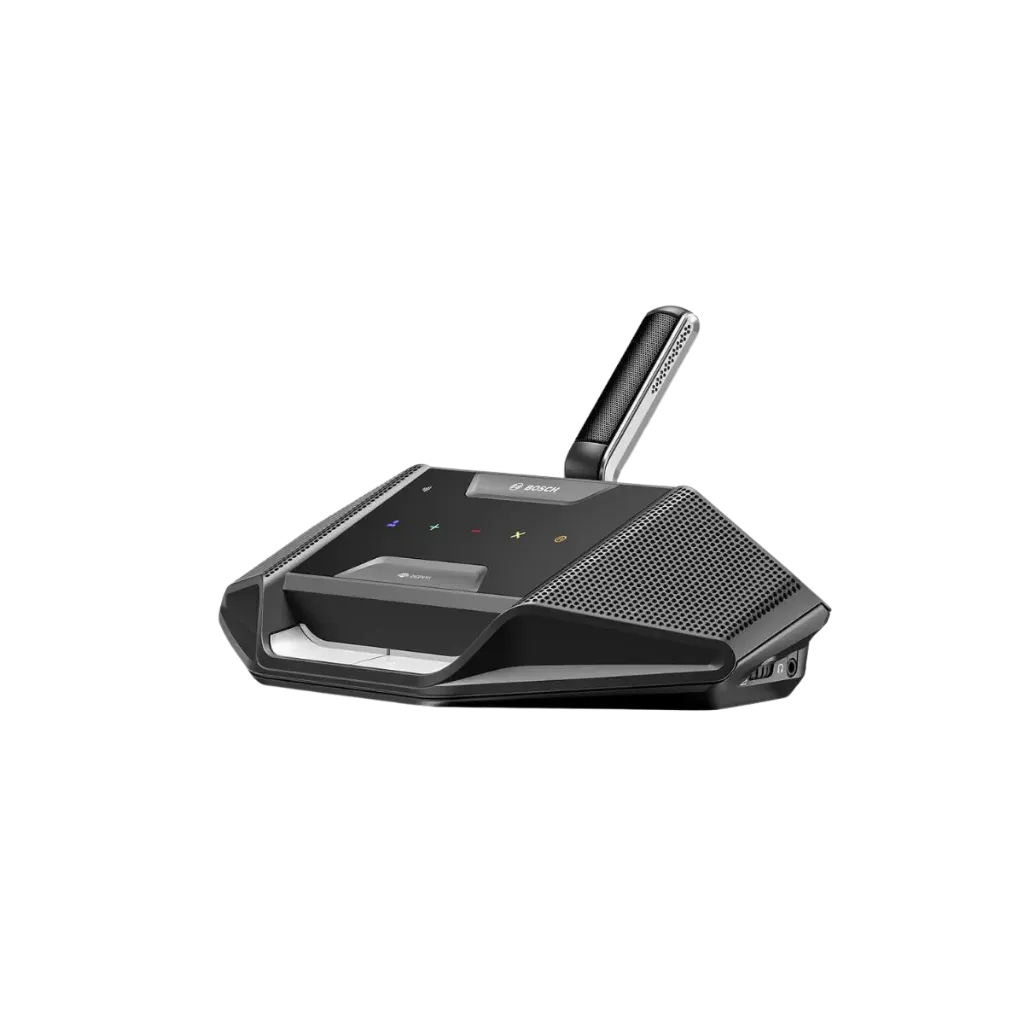

Bosch DICENTIS DCNM-DVT Voting & Participant Identification
The DCNM-DVT combines colour coded voting controls, NFC participant recognition, accessible voting feedback and clear status indications for well-managed DICENTIS meetings.
NFC Participant Identification
Built-in NFC reader supports fast and secure participant identification using compatible registration cards.
Colour Coded Voting
Five illuminated capacitive buttons clearly guide participants through each available voting choice.
Possible-to-Speak Indication
Clear status indicators show when a participant can activate the microphone and begin speaking.
Accessible Voting Feedback
Audible confirmation through headphones can provide voting feedback for visually impaired participants when the system has a DICENTIS Premium license.
DICENTIS tabletop conference devices
DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.
DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.
DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.
DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.
DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.
Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- 5 colour-coded voting buttons
- NFC reader for identified voting
- Voting and ID need Premium license
- Single participant or chairperson
- Built-in loudspeaker, feedback suppression
- 2 headphone sockets, separate volume
- 2 x RJ45, 48 VDC, 3.7 W
- Microphone sold separately
Electrical | |
Supply voltage | 48 VDC |
Power consumption | 3.7 W |
Frequency response | 100 Hz to 20 kHz (-3 dB at nominal level) |
THD at nominal level | < 0.1 % |
Dynamic range | > 90 dB |
Signal‑to‑noise ratio | > 90 dB |
Audio inputs | |
Nominal microphone input | 80 dB SPL according IEC60914 |
Maximum microphone input | 110 dB SPL according IEC60914 |
Audio outputs | |
Loudspeaker nominal output | 72 dB SPL at 0.5 m |
Loudspeaker maximum output | 87 dB SPL |
Headphone nominal output | 0 dBV |
Headphone maximum output | 3 dBV |
Headphone load impedance | > 32 ohm <1k ohm |
Headphone output power | 65 mW |
General | |
Touch buttons | Capacitive touch buttons |
Supported contactless NFC tag | According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
Mechanical | |
Mounting | Tabletop |
Dimensions (H x W x D) without microphone | 72 x 259 x 139 mm (2.8 x 10.2 x 5.5 in) |
Color (top and base) | Traffic black (RAL 9017) |
Weight | Approx. 955 g (2.1 lb) |
Environmental | |
Operating temperature | 5 ºC to +45 ºC (41 ºF to +113 ºF) |
Storage and transport temperature | -30 ºC to +70 ºC (-22 ºF to +158 ºF) |
Relative humidity | < 90 %, > 5% |
