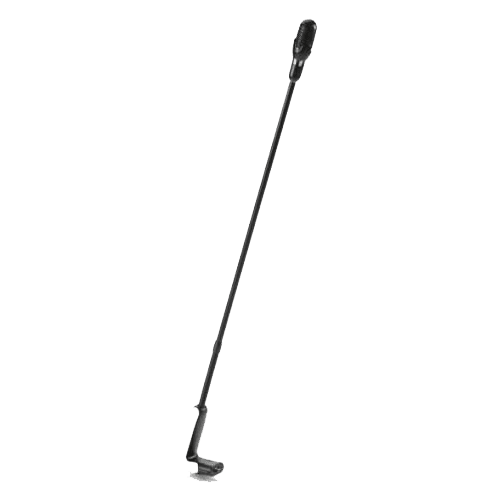

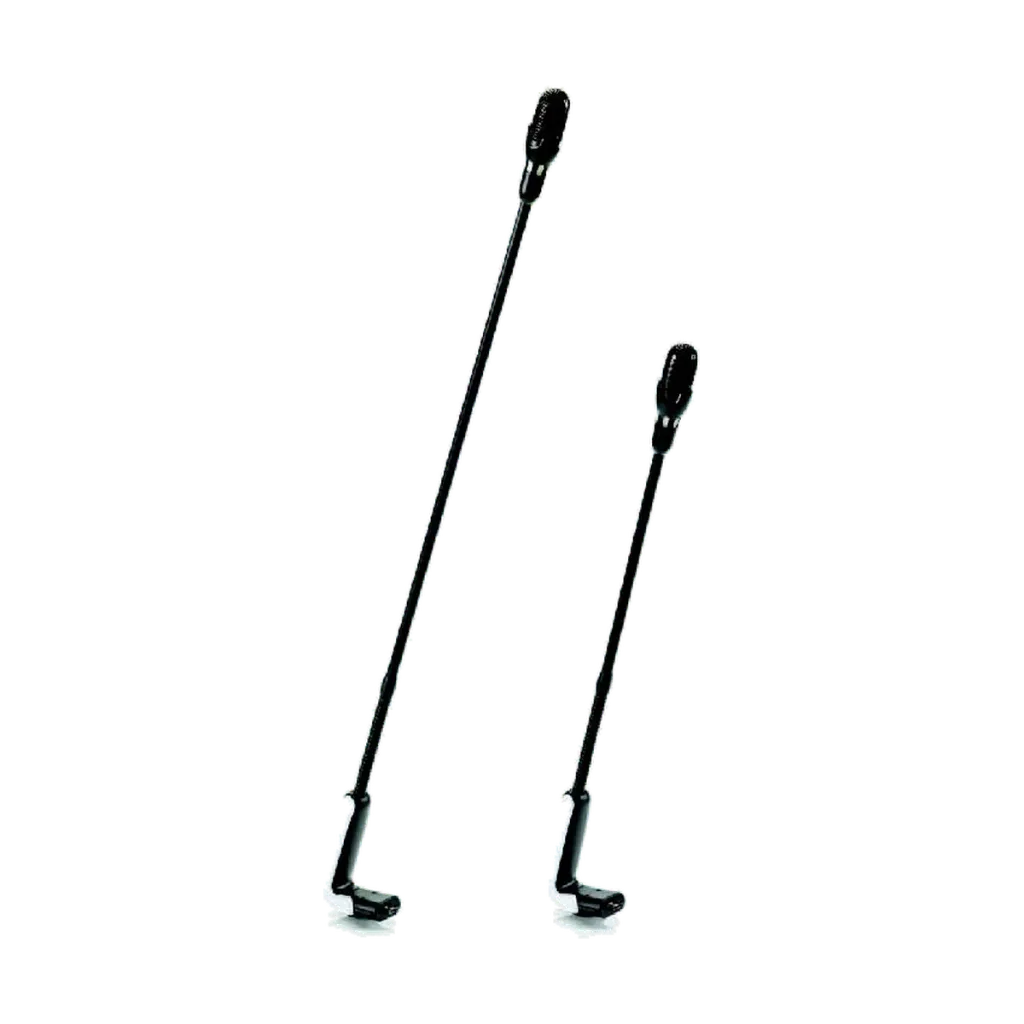

Bosch DCNM-MICL Product Highlights
Explore the key features of the Bosch DCNM-MICL Long Stem Microphone, designed for clear speech pickup in professional DICENTIS conference environments.
Uni-Directional Pickup
The uni-directional microphone pattern helps focus on the speaker’s voice and supports clear performance in acoustically challenging spaces.480 mm Adjustable Long Stem
The microphone features an adjustable 480 mm long stem, making it suitable for locations where users may speak while standing upright.
Built-In Plop & Windshield
A built-in plop and windshield helps reduce unwanted breath and air noise during speech.
Mobile Phone Interference Resistance
Designed with low susceptibility to mobile phone interference, helping maintain stable audio performance during meetings.
Red & Green Status Illumination
A red indicator shows when the microphone is active, while green indicates that a request to speak has been accepted.
DICENTIS & Wireless Compatibility
Designed to plug and fasten into compatible DICENTIS Conference System and DICENTIS Wireless Conference System devices.
Bosch DCNM-MICL Components & Connection
Understand the key components and guided locking connection of the Bosch DCNM-MICL Long Stem Microphone for compatible DICENTIS devices.
DICENTIS microphone components and connection references
Connector alignment and locking mechanism detail
1
LED Indicator
Provides visual microphone and speech-request status.
2
Microphone Grill
Houses the microphone pickup section at the top of the stem.
3
Adjustable Stem
Allows the microphone position to be adjusted for the speaker.
4
Connection Guidance
Helps correctly align the microphone with the device connector.
5
Slider Guidance
Guides the locking mechanism during connection and release.
6
Connector Plug
Connects the microphone directly to the DICENTIS device.
7
Lock Slider
Slides toward the device when releasing the microphone.
8
Connection Lock
Secures the microphone connector after it clicks into place.
9
Device Connector
Receives the microphone connector on a compatible DICENTIS device.
Plug-and-Lock Connection
Align the connection guidance with the DICENTIS microphone connector, then gently push the connector plug until the lock clicks into place. To remove the microphone, operate the lock slider and pull the microphone out carefully.
DICENTIS microphone components and connection references
Connector alignment and locking mechanism detail
1
LED Indicator
Provides visual microphone and speech-request status.
2
Microphone Grill
Houses the microphone pickup section at the top of the stem.
3
Adjustable Stem
Allows the microphone position to be adjusted for the speaker.
4
Connection Guidance
Helps correctly align the microphone with the device connector.
5
Slider Guidance
Guides the locking mechanism during connection and release.
6
Connector Plug
Connects the microphone directly to the DICENTIS device.
7
Lock Slider
Slides toward the device when releasing the microphone.
8
Connection Lock
Secures the microphone connector after it clicks into place.
9
Device Connector
Receives the microphone connector on a compatible DICENTIS device.
Plug-and-Lock Connection
Align the connection guidance with the DICENTIS microphone connector, then gently push the connector plug until the lock clicks into place. To remove the microphone, operate the lock slider and pull the microphone out carefully.
Applications of Bosch DCNM-MICL
Explore where the Bosch DCNM-MICL Long Stem Microphone is best suited, from acoustically challenging spaces and standing speaker positions to flexible DICENTIS Wireless setups.
Standing Speakers & Rostrum Use
The long adjustable stem is well suited to speaking positions where users remain standing.
DICENTIS Wireless Setups
Compatible with DICENTIS Wireless Conference System devices for flexible meeting configurations.
Acoustically Challenging Rooms
Designed for clear speech pickup in noisy or acoustically difficult conference environments.
Standing Speakers & Rostrum Use
The long adjustable stem is well suited to speaking positions where users remain standing.
DICENTIS Wireless Setups
Compatible with DICENTIS Wireless Conference System devices for flexible meeting configurations.
Key specs
- Uni-directional, 125 Hz to 15 kHz
- 480 mm adjustable stem, 108 g
- Click lock, DICENTIS tabletop and Wireless
- Max input 115 dB SPL, noise 15 dB SPL
- Dynamic range over 100 dB
- Built-in plop and windshield
- Red/green speaking indicator
- 5 VDC, 0.1 W
|
Electrical |
| |
|
Power supply |
5 VDC |
|
|
Power consumption |
0.1 W |
|
|
Bandwidth |
125 Hz - 15 kHz |
|
|
Dynamic range |
>100 dB |
|
|
Nominal input |
85 dB SPL |
|
|
Maximum input |
115 dB SPL |
|
|
Equivalent noise |
15 dB SPL |
|
|
Mechanical |
| |
|
Mounting |
Plug and fasten into DICENTIS device and DICENTIS Wireless Devices. |
|
|
Length |
480 mm (19.90 in) |
|
|
Connector |
77.15 x 60.47 mm (3.40 x 2.38 in) |
|
|
Weight |
108 g (0.24 lb) |
|
|
Color: |
Pearl light grey RAL 9022 |
|
|
Environmental |
| |
|
Operating temperature |
0 ºC to +45 ºC (32 ºF to +113 ºF) | |
|
Storage and transport temperature |
-20 ºC to +70 ºC (-4 ºF to +158 ºF) | |
|
Relative humidity |
< 95 %, > 5% | |
