DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
Built for Flexible Multimedia Meetings
The Bosch DCNM-MMDOCK combines tablet flexibility, built-in conference controls and accessible participant interaction in one DICENTIS docking unit.
Flexible Tablet Docking
Holds a third-party 10 to 14-inch tablet, with a docking angle adjustable from 0° to 120°.
USB-C Pairing & Charging
Pairs a compatible tablet through USB-C and supports fast charging when local USB-C power is connected.
Built-In NFC Reader
An integrated NFC reader with card slot supports participant identification when used with the required DICENTIS licence.
Integrated MEMS Audio
Six built-in MEMS microphones provide unobtrusive speech pickup, with a loudspeaker and acoustical chamber for listening.
Accessible Touch Controls
Haptic touch buttons and braille indications support voting, language selection and accessible device operation.
Independent Base Controls
Core meeting controls remain available on the docking base, even when a participant’s tablet is unavailable.

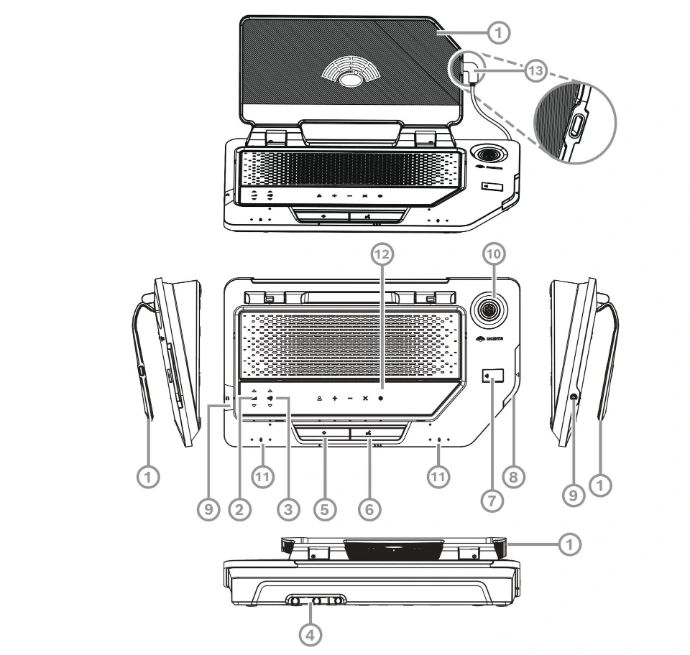

Bosch DCNM-MMDOCK Controls & Connections
Explore the integrated tablet, microphone, NFC, voting and personal-listening controls that support organised multimedia conference participation.
DICENTIS tabletop conference devices

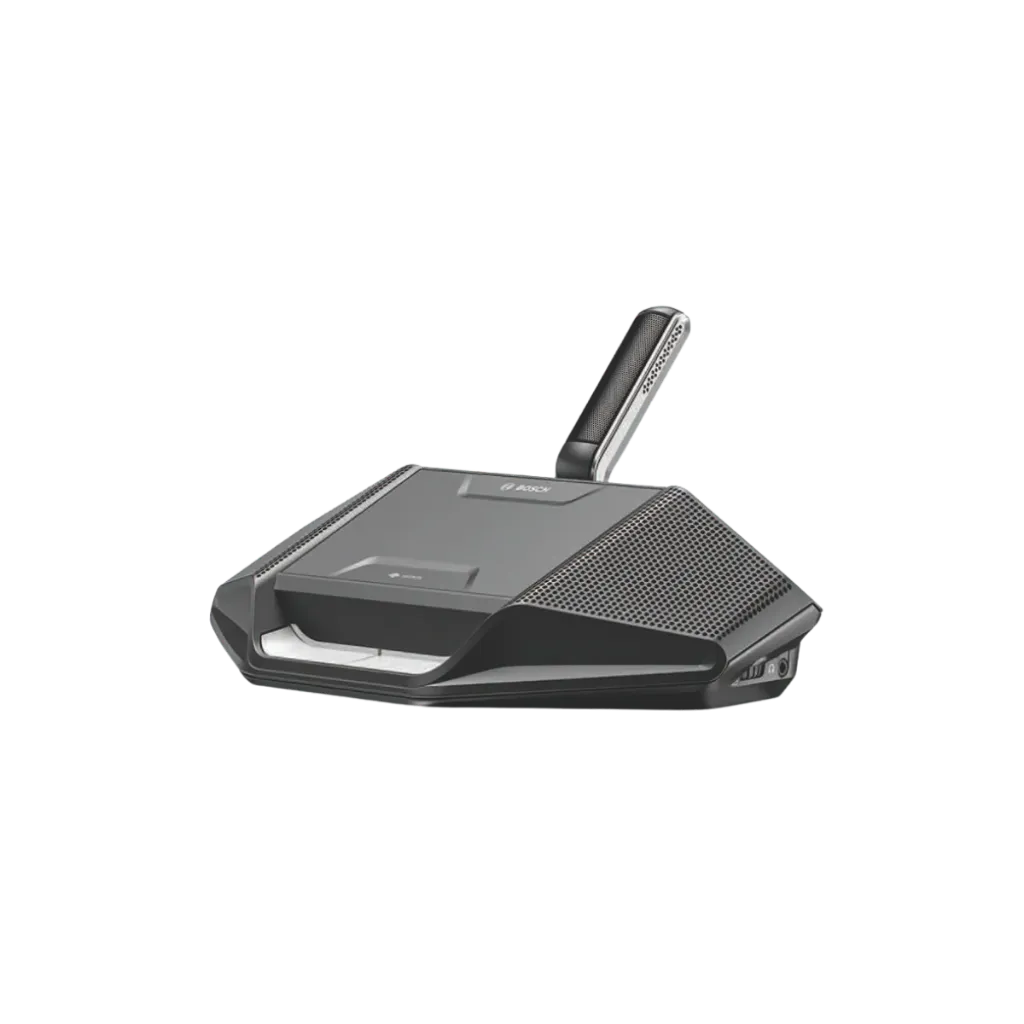

DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.

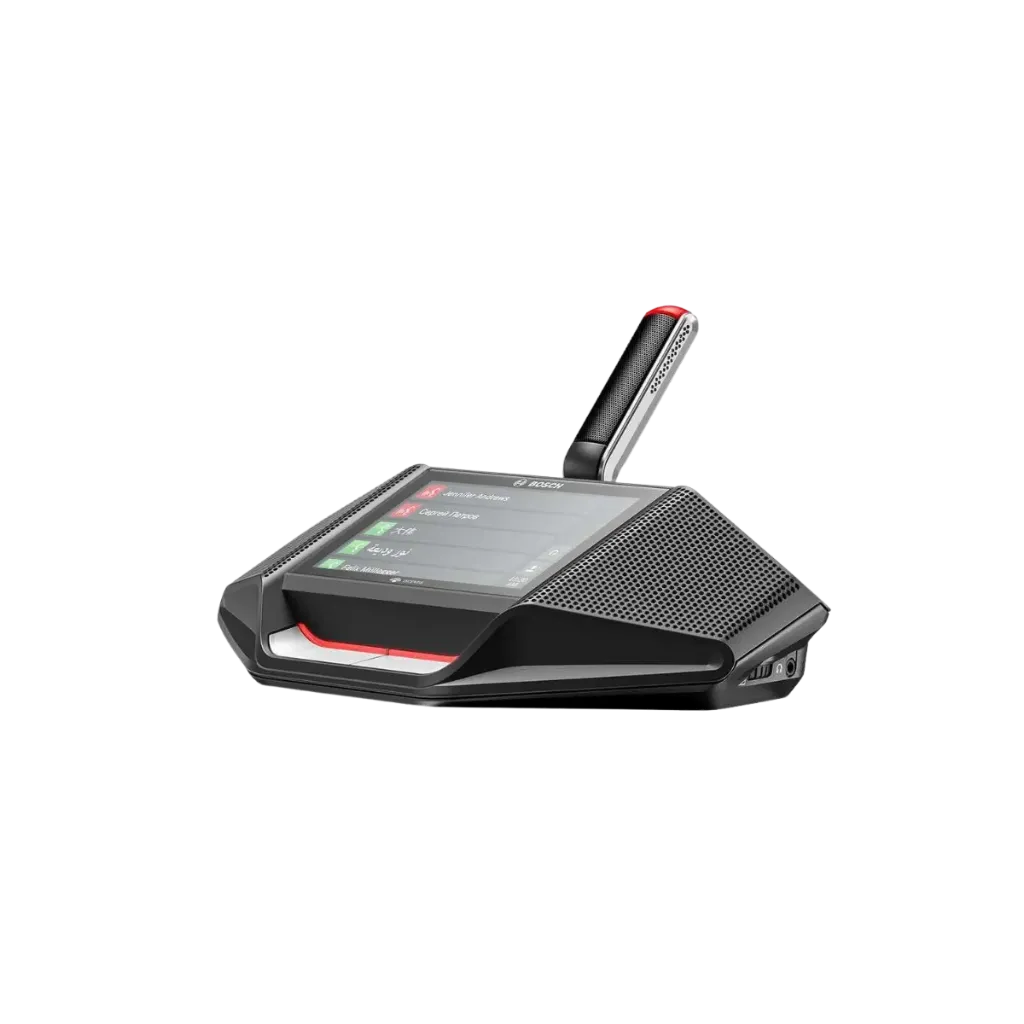

DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.

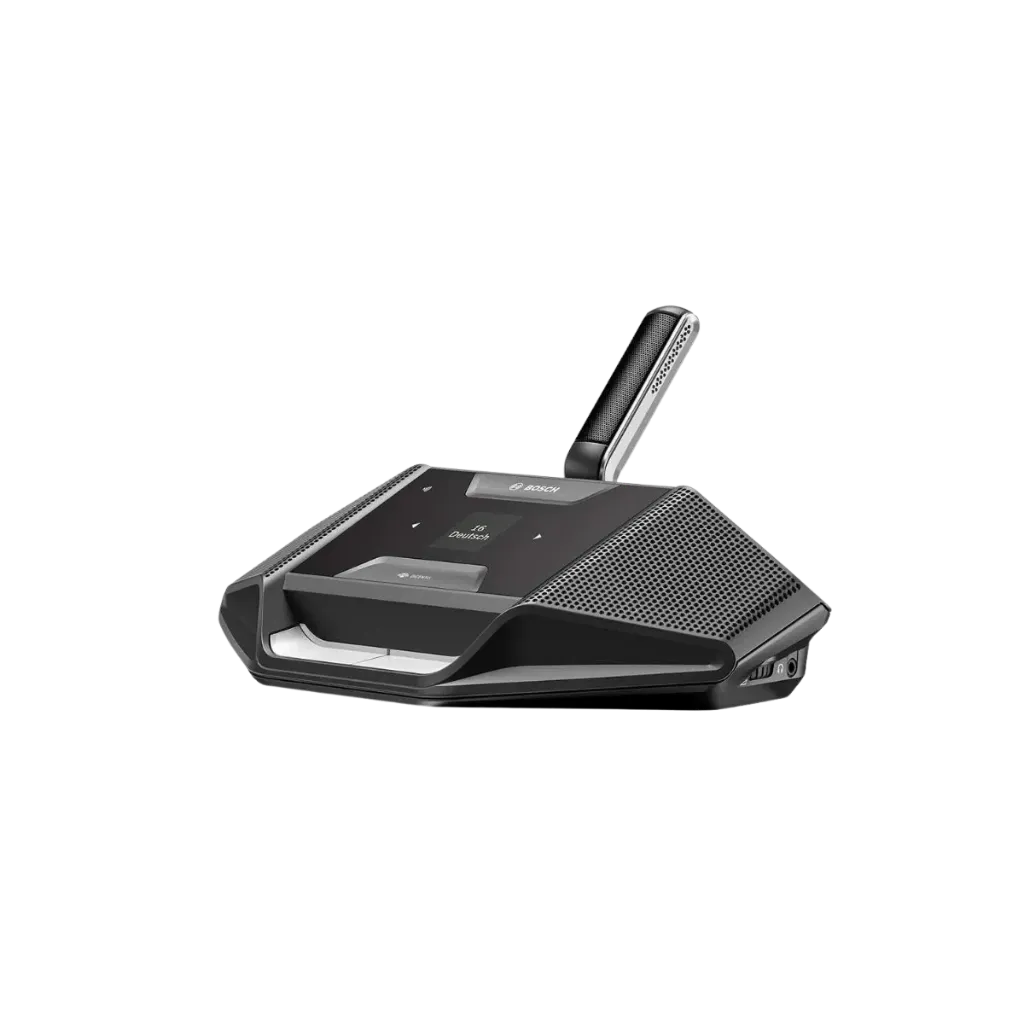

DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.

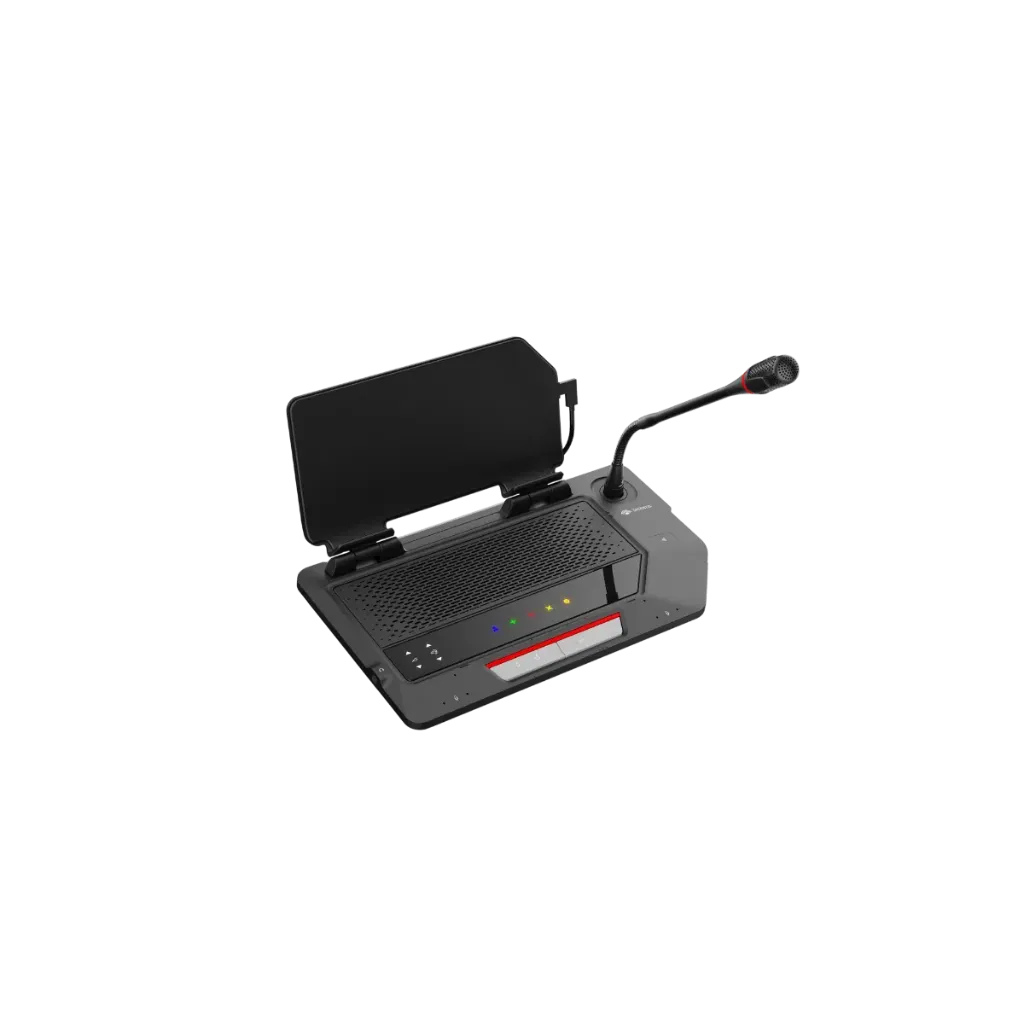

DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.

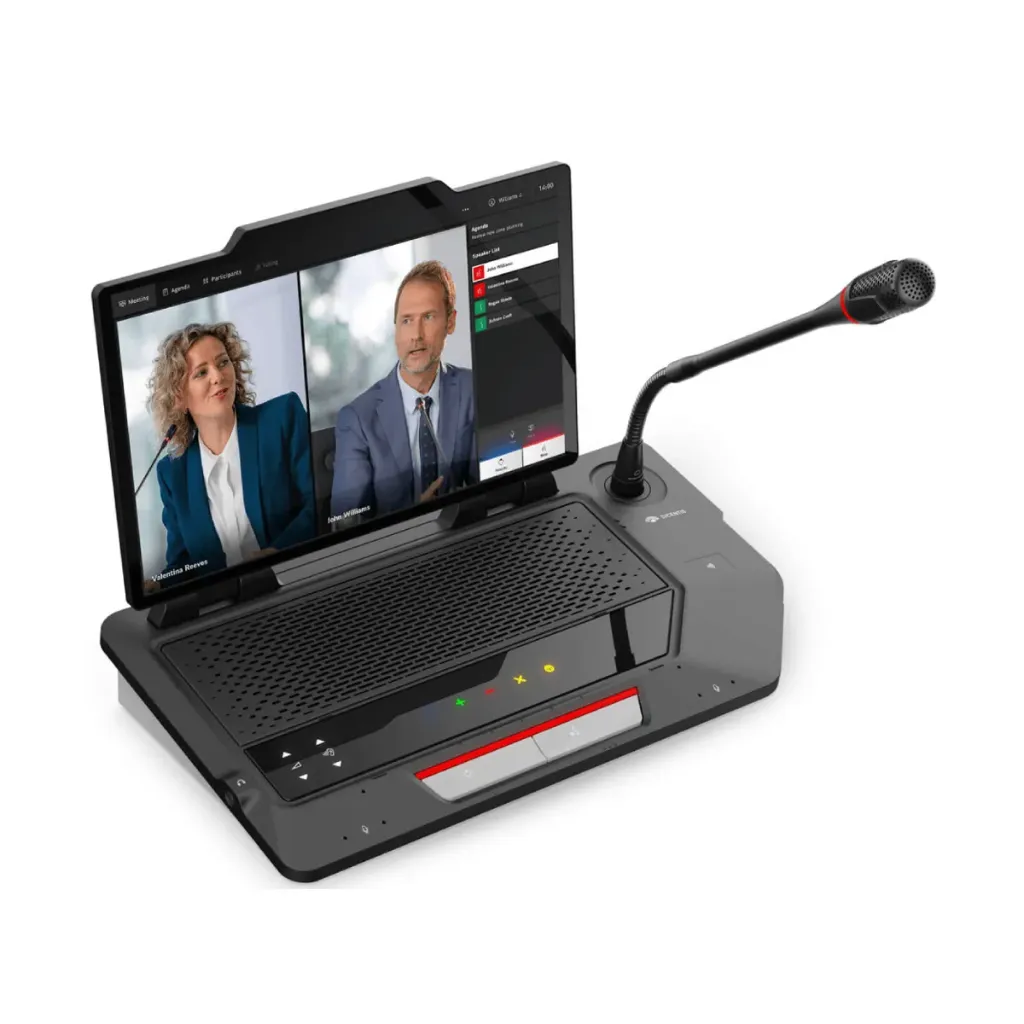

DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.

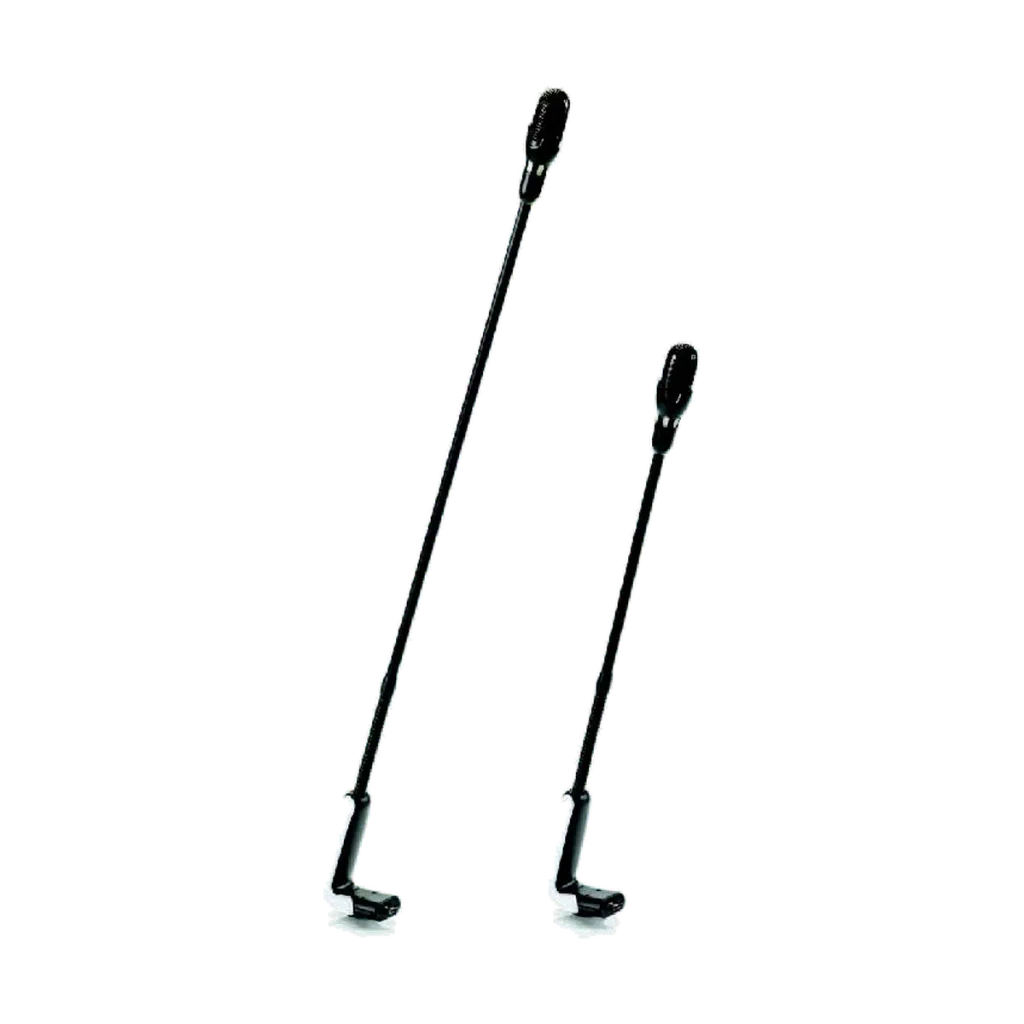

Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- Holds a 10 to 14-inch tablet, 0 to 120°
- USB-C pairing and fast charging
- 6 built-in MEMS microphones
- NFC reader with card slot
- Haptic buttons with Braille
- Socket for screw-lock microphone
- PoE+ 48 VDC, 11 to 18 W
- Tabletop or flush mount, 2.2 kg
Bosch DCNM-MMDOCK Multimedia Docking Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / Series | Bosch / DICENTIS |
| Model | DCNM-MMDOCK |
| Product type | Multimedia docking |
| Tablet compatibility | Third-party tablet, 10–14 inch |
| Docking angle | 0° to 120° adjustable |
| Mounting type | Tabletop; Flush-mounted |
| Electrical & Network | |
| Input voltage | 48 VDC |
| PoE input | PoE+ IEEE 802.3at Type 2, Class 4 |
| Power consumption — tablet not connected / locally powered | 11 W |
| Power consumption — tablet connected without local USB-C power | 18 W, including maximum 7 W for powering the tablet |
| Frequency response (−3 dB) | 100 Hz–20,000 Hz |
| Total harmonic distortion + noise | 0.05% |
| Dynamic range | 96 dB |
| Minimum signal-to-noise ratio | 66 dB |
| NFC reader frequency | 13.56 MHz |
| Audio Inputs | |
| Nominal acoustic input level — microphone | 85 dB SPL, according to ISO 22259 (IEC 60914) |
| Maximum acoustic input level — microphone | 115 dB SPL, according to ISO 22259 (IEC 60914) |
| Nominal input level — external microphone | −41 dBV |
| Maximum input level — external microphone | −11 dBV |
| Built-in microphones | 6 MEMS microphones |
| Audio Outputs | |
| Loudspeaker nominal acoustic output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum acoustic output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Controls & Indicators | |
| Touch controls | Touch buttons with haptic feedback for voting and language selection |
| Accessibility markings | Braille indications |
| NFC identification | Built-in NFC card reader with card slot |
| Microphone controls | Microphone on/off or request-to-speak; microphone mute or chairperson priority |
| Status indications | Microphone on, request-to-speak and possible-to-speak |
| Connectivity | |
| Tablet connection | 1 × USB-C cable for third-party tablet |
| Local power / charging input | 1 × USB-C socket for USB-C charger |
| Pluggable microphone | Socket for pluggable microphone |
| System connections | 2 × RJ45-compatible connections for system communication and power |
| Headset / external microphone | 3.5 mm stereo jack |
| Connection handling | Hot plug-and-play |
| Physical Specifications | |
| Tabletop dimensions — open dock (H × W × D) | 148 × 310 × 179 mm (5.83 × 12.2 × 7.05 in) |
| Tabletop dimensions — closed dock (H × W × D) | 80 × 310 × 179 mm (3.15 × 12.2 × 7.05 in) |
| Flush-mount dimensions — open dock (H × W × D) | 107 × 310 × 179 mm (4.2 × 12.2 × 7.05 in) |
| Flush-mount dimensions — closed dock (H × W × D) | 40 × 310 × 179 mm (1.57 × 12.2 × 7.05 in) |
| Weight | 2.2 kg (4.85 lb) |
| Colour | Traffic Black (RAL 9017) / Pearl Light Grey (RAL 9022) |
| Environmental Conditions | |
| Operating temperature | 0°C–35°C (32°F–95°F) |
| Storage temperature | −20°C–60°C (−4°F–140°F) |
| Operating relative humidity, non-condensing | 5%–90% |
Know before you buy
Quick answers about the DCNM-MMDOCK, and how it compares.
How does the tablet connect to the DCNM-MMDOCK?
Install the DICENTIS Participant App on the tablet and connect it with the dock's USB-C cable: tablet and dock are then paired. The dock holds tablets from 10 to 14 inches and tilts from 0° to 120°. When not in use, the USB-C cable has its own parking space in the base.
On a perpetual system, each tablet using the app needs one DCNM-LPAPP-PE (one is included with the system). Professional plans include the app.
DCNM-MMDOCK or DCNM-MMFF: which multimedia seat should I choose?
| DCNM-MMDOCK | DCNM-MMFF | |
|---|---|---|
| Screen | Your own 10 to 14-inch tablet | Built-in 10-inch Android touchscreen (1200 x 1920) |
| On the screen | DICENTIS Participant App on the tablet | Agenda, documents, live video, internet, third-party and custom apps |
| Without the screen | All functions also on the base | Key functions on both screen and base |
| Screen angle | 0 to 120° | 0 to 180° |
| Microphones | 6 built-in MEMS microphones, plus a socket for a screw-lock microphone | |
| Identification | NFC reader with card slot | |
| Buttons | Haptic touch buttons with Braille indications | |
| Power (PoE+, 48 VDC) | 11 W, or 18 W when charging the tablet from the system | 18 W |
| Mounting | Tabletop or flush in the table | |
| Weight | 2.2 kg | 2.5 kg |
Choose the MMDOCK to use tablets you pick and replace yourself. Choose the MMFF for a ready, all-in-one seat with its own screen.
Does the DCNM-MMDOCK charge the tablet?
Yes, it fast-charges the tablet over USB-C when the base has local power from a USB-C charger of 15 W or more, PD3.0 or newer. Bosch highly recommends this: the base then draws 11 W from the system.
Without local power, the dock feeds the tablet from the system cable: 18 W in total, of which at most 7 W goes to the tablet. Some tablets need more than that.
What if a participant forgets the tablet, or its battery is flat?
The meeting goes on. Every function is also on the base, which has the microphone / request-to-speak button, mute or chairperson priority, haptic voting and language buttons, and the NFC reader with card slot.
Do DICENTIS discussion devices need a software license?
For the wired DICENTIS Conference System, basic discussion works without a license once the system is registered: request to speak, chairperson priority, dual use (two participants on one device), camera control and interpretation from the interpreter desk. These seat functions need a Premium or Ultimate license:
| Device | Works without a license | Needs Premium for |
|---|---|---|
| DCNM-D | Discussion, dual use, chairperson | Speech timer, response mode, agenda |
| DCNM-DE | Discussion, dual use, chairperson | NFC ID, voting and language on screen |
| DCNM-DSL | Discussion, dual use, chairperson | Language selection, NFC ID |
| DCNM-DVT | Discussion, chairperson | Voting buttons, NFC ID |
| DCNM-MMDOCK | Discussion, chairperson | NFC ID, voting, language selection |
| DCNM-MMFF | Discussion, chairperson | NFC ID, voting, language selection |
The DCNM-DVT voting buttons do not work without a Premium license.
Order one license per participant in the meeting (a dual use seat counts as two). Two ways to buy:
- Perpetual, pay once: Premium DCNM-LPP-PE or Ultimate DCNM-LPU-PE. The license is yours permanently. Software maintenance (updates) is included for the first year, then renewed yearly with DCNM-LPSMA-PE.
- Professional, pay yearly: the same Premium or Ultimate features, renewed every year. Software maintenance and the Participant App are included in the yearly fee.
DICENTIS Wireless (DCNM-WD / DCNM-WDE) works differently: it still uses per-seat licenses, such as DCNM-LSDU for dual use, DCNM-LSVT for voting and DCNM-LSID for identification.
Do I need a pluggable microphone?
No. Six built-in MEMS microphones can be the main meeting microphone or a backup. If you want a visible microphone, add a screw-lock one: DCNM-MICSC (short) or DCNM-MICLC (long) with a cardioid pattern, or DCNM-MICSWC / DCNM-MICLWC with a wide cardioid pattern. The 3.5 mm jack also takes headphones, an external microphone or a headset microphone.
What is the DICENTIS Participant App?
An Android app that turns a tablet into a DICENTIS seat. Participants can request to speak, vote, see the speaker list and results, register attendance, follow the agenda, read documents and watch live video and presentations.
A perpetual system includes one app user. Each extra user needs one DCNM-LPAPP-PE (up to 300). Professional plans include the app.
Can visually impaired participants use it?
Yes. The touch buttons for voting and language selection give haptic feedback, and Braille indications mark them. Indicators show when the microphone is on, when a request to speak is waiting, and when the participant may speak.
Who supplies Bosch DICENTIS in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch DICENTIS across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
