DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
Bosch DICENTIS DCNM-DE Capabilities
Explore the key capabilities of the DCNM-DE for professional conference applications.
4.3-Inch Touchscreen
Capacitive multitouchscreen provides an intuitive interface for supported DICENTIS functions.
Built-In NFC Reader
Integrated NFC reader supports participant identification with compatible DICENTIS software licenses.
Flexible User Modes
Configure the device for single-use, dual-use or chairperson operation as required.
Interactive Conference Functions
Access the speaker and request list, speech countdown and other supported conference functions.
Headphone Connectivity
Two 3.5 mm stereo headphone connections support compatible headphones with adjustable volume.
IP-Based Connectivity
Two RJ45 connections provide DICENTIS system communication and power connectivity.
Touchscreen Controls & Personal Listening
The Bosch DCNM-DE combines intuitive touchscreen controls, participant identification, built-in loudspeaker and individual headphone adjustment to help participants follow and actively engage in the meeting.
Touchscreen Meeting Controls
Use the 4.3-inch capacitive touchscreen to view meeting information, including the current speaker, request list and available discussion functions.
NFC Participant Identification
The built-in NFC reader enables fast participant identification and supports convenient access to personalized meeting functions.
Individual Headphone Control
Headphone connections on both sides provide independent volume adjustment, allowing participants to set their preferred listening level.
Built-In Loudspeaker
Listen through the integrated loudspeaker, with built-in feedback suppression supporting simultaneous microphone and loudspeaker operation.
DICENTIS tabletop conference devices
DCNM-D Discussion Device
Request-to-speak tabletop unit for a single participant, dual use or chairperson operation. Built-in loudspeaker and encrypted audio, with more functions unlocked through DICENTIS software licenses.

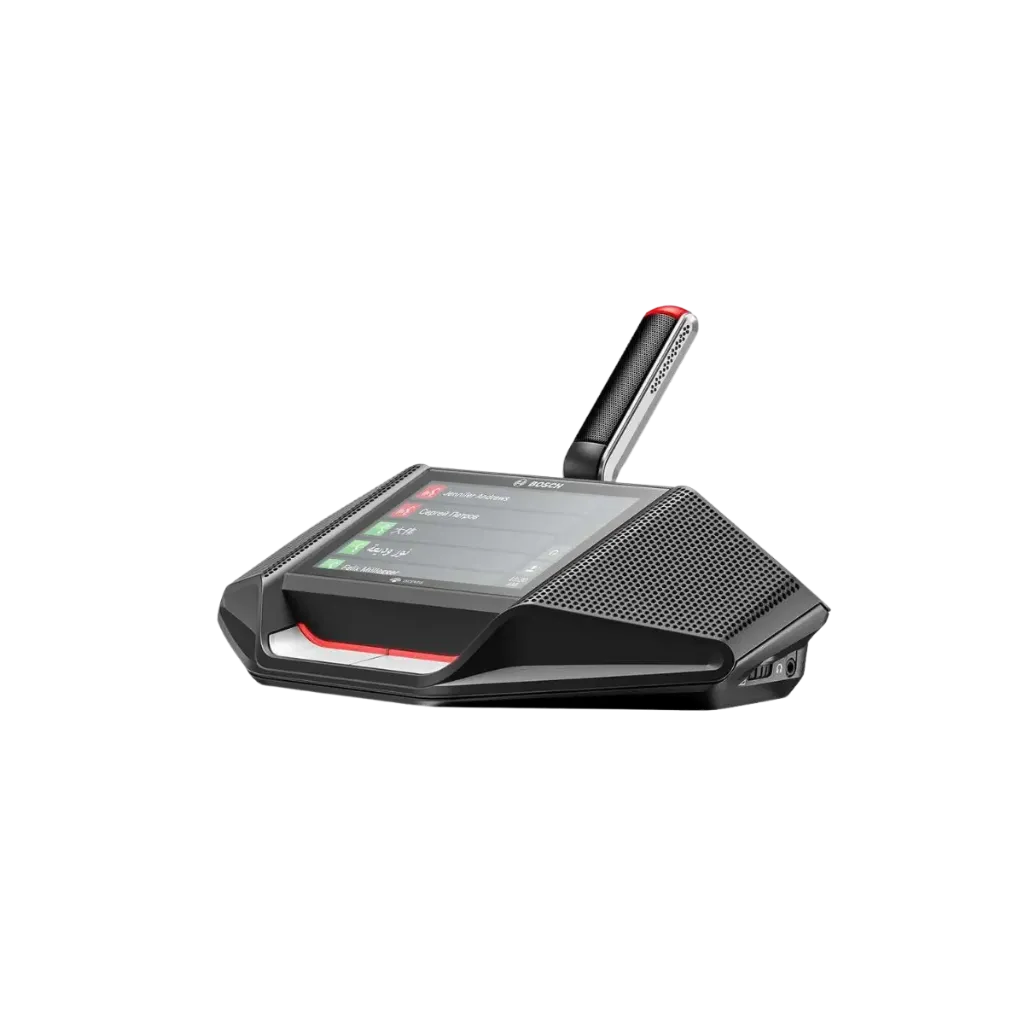

DCNM-DE Discussion Device with Touchscreen
4.3-inch capacitive touchscreen and built-in NFC reader for participant identification. Configurable for single, dual use or chairperson operation, with extra functions added through software licenses.
DCNM-DSL Discussion Device with Language Selector
1.44-inch LCD and NFC reader let each participant choose their interpretation language and identify themselves. A simple, cost-effective seat for multilingual meetings.
DCNM-DVT Discussion Device with Voting
Five colour-coded capacitive voting buttons and a built-in NFC reader for secure, identified voting. Configurable as a participant or chairperson device.
DCNM-MMDOCK Multimedia Docking
Turns a third-party 10 to 14-inch tablet into a full conference seat. Pairs and fast-charges the tablet over USB-C, adds an NFC reader with card slot, and installs on the tabletop or flush in the table. Part of the new DICENTIS multimedia generation.
DCNM-MMFF Multimedia Full Function
Android-based seat with a 10-inch capacitive touchscreen for meeting content, live video, documents and custom apps. Six built-in MEMS microphones, an NFC reader with card slot and an integrated loudspeaker. Replaces the previous DICENTIS multimedia device.
Versatile Microphone Options
Choose from three microphone types: the high-directive DCNM-HDMIC, screw-lock microphones (DCNM-MICSLS / DCNM-MICSLL) for tamper-proof fixed installations, and standard plug-in microphones (DCNM-MICS / DCNM-MICL). Screw-lock and standard microphones are each available with a short or long stem.
Key specs
- 4.3-inch capacitive touchscreen
- NFC reader (ISO/IEC 14443 Type A)
- Single, dual use or chairperson
- Speaker and request list on screen
- Voting, language, ID with Premium
- Built-in loudspeaker, 2 headphone sockets
- 2 x RJ45, 48 VDC, 5 W
- Microphone sold separately
|
Electrical |
|
|
Supply voltage |
48 VDC |
|
Power consumption |
5 W |
|
Frequency response |
100 Hz to 20 kHz (-3 dB at nominal level) |
|
THD at nominal level |
< 0.1 % |
|
Dynamic range |
> 90 dB |
|
Signal‑to‑noise ratio |
> 90 dB |
|
Audio inputs |
|
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
Loudspeaker maximum output |
87 dB SPL |
|
Audio outputs |
|
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
Loudspeaker maximum output |
87 dB SPL |
|
Headphone nominal output |
0 dBV |
|
Headphone maximum output |
3 dBV |
|
Headphone load impedance |
> 32 ohm <1k ohm |
|
Headphone output power |
65 mW |
|
General |
|
|
Screen size |
109.22 mm (4.3 in) |
|
Screen type |
Capacitive multi-touch |
|
Supported contactless NFC tag |
According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
|
Mechanical |
|
|
Mounting |
Tabletop |
|
Dimensions (H x W x D) without microphone |
72 x 259 x 139 mm (2.8 x 10.2 x 5.5 in) |
|
Color (top and base) |
Traffic black (RAL 9017) |
|
Weight |
Approx. 1035 g (2.3 lb) |
|
Environmental |
|
|
Operating temperature Storage and transport temperature |
5 ºC to +45 ºC |
|
-30 ºC to +70 ºC |
|
|
Relative humidity |
< 90 %, > 5% |
