Public Address Systems

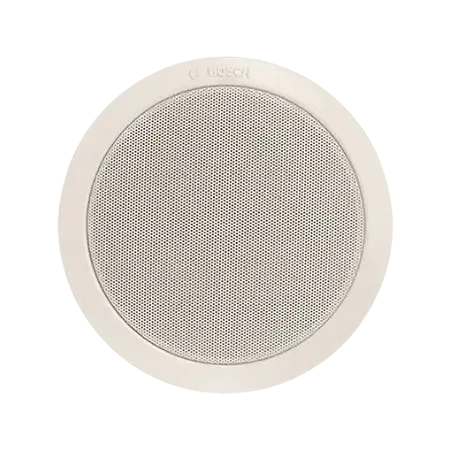

Bosch LBC3090/31 Ceiling loudspeaker 6W metal with clamps, integrated circular metal, grille, two spring-loaded clamps for ceiling mounting, protective dust cover, two-way screw terminal block, white RAL 9010, Maximum power 9W, Rated power 6 / 3 / 1.5 W, Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 99 dB / 91 dB (SPL), Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 104 dB / 96 dB (SPL), Effective frequency range (-10 dB) : 70 Hz to 18 kHz Opening angle at 1 kHz/4 kHz (-6 dB) : 160° / 55°, Rated voltage 100 V.

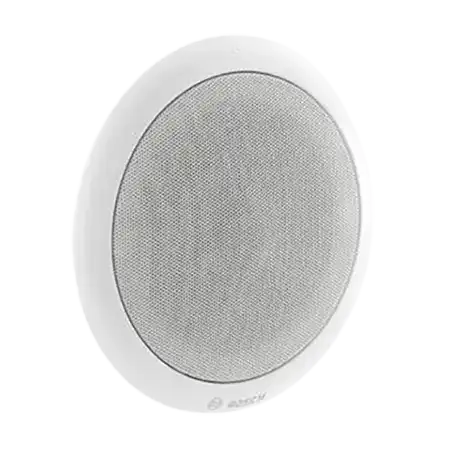

Bosch LC1-UM12E8 12W Ceiling loudspeaker, integrated circular metal grille, 6-inch coax (two-way system) driver, without flush ceiling-mounting accessory, EN54-24 certified, white RAL 9010.

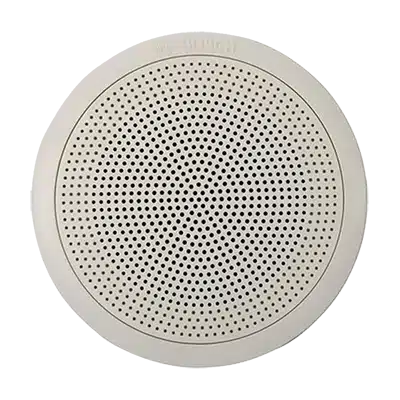

Bosch LC3-UC06E Ceiling loudspeaker 6 W, circular ABS grille and frame, ceiling mounted by 2 integral spring arms, EN54-24 certified, white RAL 9010, 94 dB / 86 dB (SPL), Opening angle at 1 kHz / 4kHz (-6 dB) : 180° / 85°, Effective frequency range (-10 dB) 90 Hz to 20 kHz.

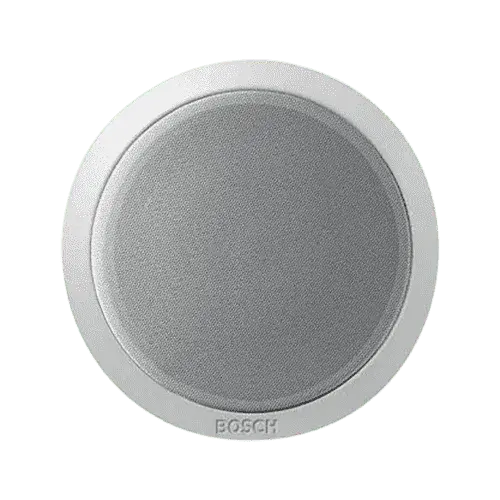

Bosch LHM0606/10 6W Ceiling Loudspeaker, Metal with clamp, Easy to install, Unobtrusive in virtually all interiors, Maximum power 9W, Rated power : 6 / 3 / 1.5 W, Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 94 dB / 86 dB (SPL), Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 106 dB / 98 dB (SPL), Effective frequency range (-10 dB) : 80 Hz to 18 kHz, Opening angle at 1 kHz/4 kHz (-6 dB) : 175° / 55°, Rated voltage 100 V, Rated impedance 1667 ohm.

Bosch LA1-UM20E-1 20W Metal Column Loudspeaker, Maximum power 30W, Rated input voltage : 12.65 / 70 / 100 V , Rated impedance 8/251/500 ohm, 20 / 10 / 5 / 2.5 W Power Tapping, 105 / 92 dB SPL at 1 W (1 kHz, 1 m), Effective frequency range (-10 dB) : 240 Hz to 16 kHz.

Bosch LA1-UM40E-1 40W Metal Column Loudspeaker, Maximum power 60W, Rated input voltage 17.89 / 70 / 100 V , Rated impedance 8/125/250 ohm, 40 / 20 / 10 / 5 W Power Tapping, 111 / 95 dB SPL at 1 W (1 kHz, 1 m), Effective frequency range (-10 dB) : 250 Hz to 16 kHz.

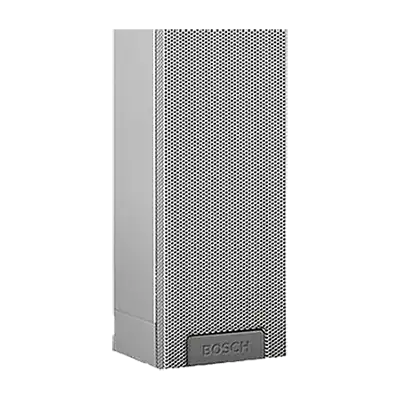

Bosch LBC 3200/00 Line Array Indoor Loudspeaker for small and medium indoor environments, 30W, Rated Power : 30 / 15 / 7.5 W, SPL at 30W/1 W (1 kHz, 1 m) : 106/91 dB (SPL), Effective frequency range (-10 dB) : 190 Hz to 18 kHz, Opening angle at 1 kHz/4 kHz : Horizontal (220°/130°), vertical (70°/18°).

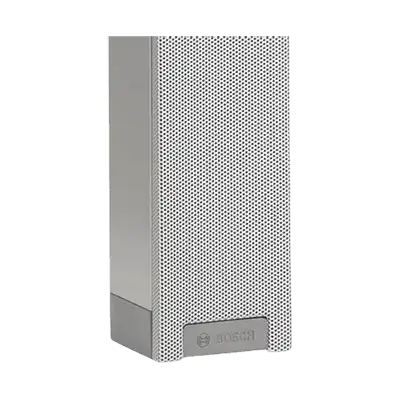

Bosch LBC3201/00 60W Line array loudspeaker for large (reverberant) indoor environments, Extended Listening Area, Aluminum Extruded Enclosure, EN54-24 Certified, Swivel wall-mounting bracket included, Rated Power: 60 / 30 / 15 W, Sound pressure level at 60 W / 1 W (1 kHz, 1 m) : 110 dB / 92 dB (SPL), Effective frequency range (-10 dB) : 190 Hz to 18 kHz, Opening angle at 1 kHz/4 kHz : Horizontal (210° / 132°), vertical (50° / 22°), Light Gray.

Bosch LBC3481/12 10W Horn loudspeaker, circular, ABS material, water and dust protected according IP65, Rated power (PHC) 10 / 5 / 2.5 W, Sound pressure level at rated power / 1 W (1 kHz, 1 m): 113 dB / 103 dB (SPL), fixed 2 m, 4-wire connection cable, light gray RAL 7035.

Bosch LBC 3482/00 25W Horn Loudspeaker, aluminum, circular, IP65, Rated power : 25 / 12.5 / 6.25 W, Sound pressure level : 121 dB / 107 dB (SPL), Effective frequency range (-10dB) : 550 Hz to 5 kHz, Opening angle at 1 kHz/4 kHz (-6 dB) : 70° / 25°, LBC3478/00 (14" Horn) + LBC3472/00 (25 W Driver)

Bosch LBC 3483/00 35W Horn Loudspeaker, aluminum, circular, IP65, Rated Power : 35 / 17.5 / 8.75 W, 127 dB / 112 dB (SPL), Effective Frequency Range : 380 Hz to 5 kHz.

Bosch LBC3484/00 50W 14" Horn Loudspeaker, aluminum, circular, IP65, Rated Power : 50 / 25 / 12.5 W, 127 dB / 110 dB (SPL), Effective Frequency Range : 350 Hz to 4 kHz, Opening angle (1 kHz/4 kHz): 60° / 28°.
LBC3479/00 (20" Horn) + LBC3474/00 (50 W Driver).

Bosch LH1-UC30E 30W Music horn loudspeaker, ABS material, Maximum power: 45 W, Rated power (PHC): 30 W, Power tapping: 30W / 15W / 7.5W / 3.75W, Sound pressure level at rated power / 1 W(1 kHz, 1 m): 115 / 100 dB (SPL), 212 Hz to 20 kHz Effective frequency range, two-way system for high-quality speech and music, reproduction, IP66, EN54-24 certified, light gray RAL 7035.

Bosch LH3-UC25XL 25W Horn loudspeaker, Flameproof horn loudspeaker with long flare, Rated power: 25W, Tapping: 25/15/6.5/5/2.5/1.5 W, SPL at rated power: 122 dB / 109 dB, 100 V, Black color.

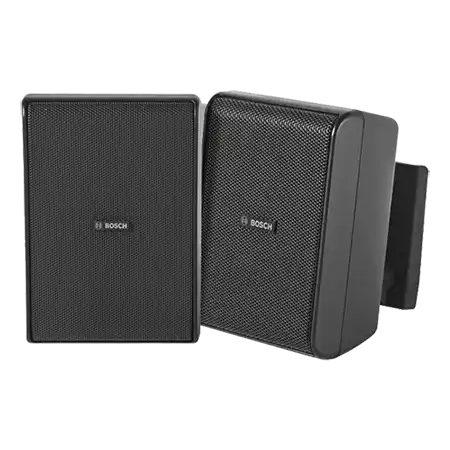

Bosch LB20-PC15-4D Cabinet speaker 4" 70/100V black pair, Two-way 4-inch cabinet loudspeaker, with easy wall mount system, internal 15W 70/100-volt line transformer, weather-resistant IP54 (packaged in pairs), black, Frequency response (-3 dB): 100 Hz - 20 kHz, Coverage angle: Horizontal 110°, Vertical 110°.

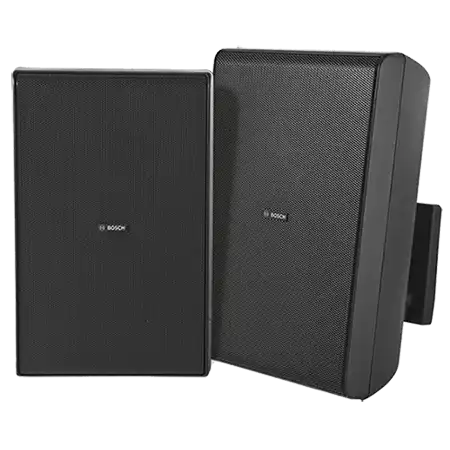

Bosch LB20-PC60-8D Cabinet speaker 8" 70/100V black pair, Two-way 8-inch cabinet loudspeaker, with easy wall mount system, Internal 60W 70/100-volt line, transformer with 8 Ohm bypass, weather-resistant, IP54 (packaged in pairs), black, Coverage angle : Horizontal 90°, Vertical 90°.

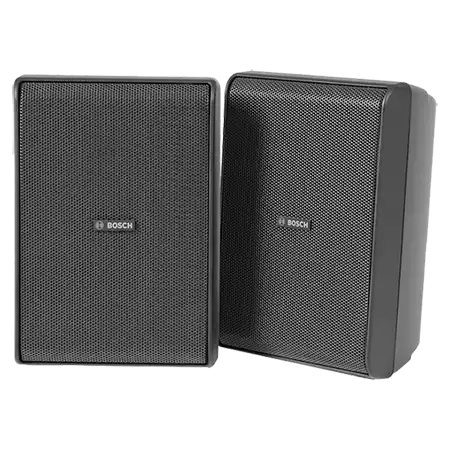

Bosch LB20-PC60EW-5D Cabinet speaker 5" 70/100V IP65 black pair, Two-way 5-inch cabinet loudspeaker, with easy wall mount system, internal 60W 70/100-volt line transformer with 8 Ohm bypass, weatherproof IP65, (packaged in pairs), black, Max SPL (calculated): 108 dB, 114 dB Peak, Coverage angle: Horizontal 90°, Vertical 90°.

Bosch LBC3094/15 Sound Projector Loudspeaker, 10 W, white ABS, Splash-waterproof, Rated power : 10 / 5 / 2.5 W, Sound pressure level at 10 W / 1 W : 102 dB / 92 dB (SPL), Effective frequency range (-10 dB) : 140 Hz to13 kHz, Opening angle at 1 kHz / 4 kHz (-6 dB) : 160° / 70°.

Bosch LBC 3095/15 Pendant Sphere Loudspeaker, 10 W, white ABS, Rated power 10 / 5 / 2.5 W, Sound pressure level at 10 W / 1 W : 99 dB / 89 dB (SPL), Opening angle at 1 kHz / 4 kHz (-6 dB) : 180° / 90°, Effective frequency range (-10 dB) : 130 Hz to 20 kHz, Rated voltage : 100V.

Bosch LC1-CBB Back box for LC1 speaker, Protects rear of the loudspeaker from dust and dripping water, Makes unit vermin proof, Prevents sound traveling via ceiling cavity to adjacent areas, EN54-24 certified.
