Conference Systems

Bosch CCSD-CURD Control unit for CCS 1000 D Digital Discussion System with recorder and DAFS, Plug-and-play functionality, for quick and easy connection of up to 80 Discussion Devices, Intuitive web browser interface, control for advanced, configuration and control, Built‐in MP3 recorder with internal memory and USB recording, Built‐in Digital Acoustic Feedback, Suppression (DAFS) for ensuring superior speech intelligibility.

Bosch CCSD-DL Discussion device with long microphone, Discussion Device for the CCS 1000 D Digital Discussion System, supplied with a long‑stem fixed microphone, configurable as a participant device or a chairperson device, Cardioid Microphone polar pattern, Built-in loudspeaker with volume control, Headphones socket, Request‑to‑speak indication.

Bosch CCSD-DS Discussion device with short microphone, Discussion Device for the CCS 1000 D Digital Discussion System, supplied with a short‑stem fixed microphone, configurable as a participant device or a chairperson device, Microphone polar pattern : cardioid, Headphones socket, Request‑to‑speak indication, Built‑in volume control for headphones, Built-in loudspeaker with volume control.

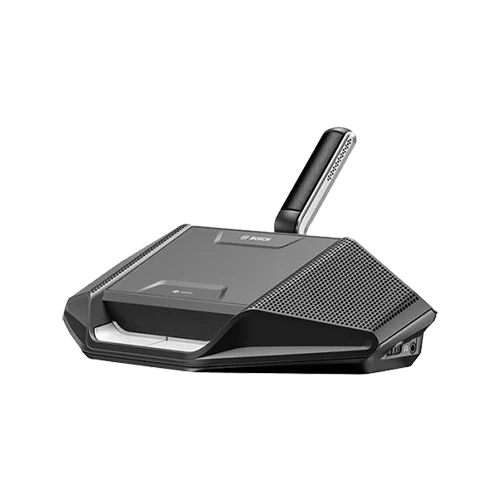

Bosch DCNM-D DICENTIS Discussion device with discussion functionality. Dual-use functionality by use of software license. Frequency response: 100 Hz to 20 kHz (-3 dB at nominal level), Choice of pluggable microphone to be ordered separately, Supply voltage: 48 VDC, Power consumption: 3.1 W.

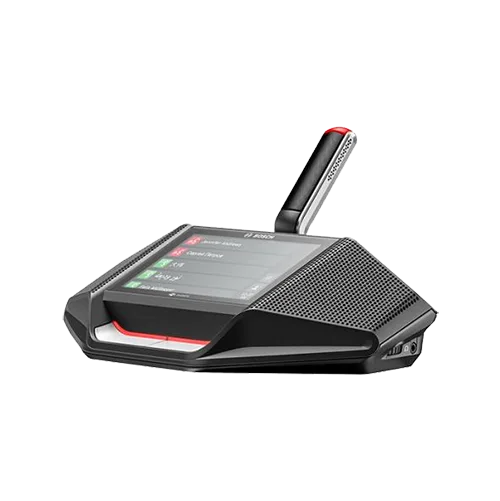

Bosch DCNM-DE DICENTIS Discussion device with touchscreen, 4.3 inch touch screen and NFC identification reader. Choice of pluggable microphone to be ordered separately, Configurable as a single participant, dual‑use, or chairperson’s device, Tabletop, Supply voltage: 48 VDC, Power consumption: 5W.

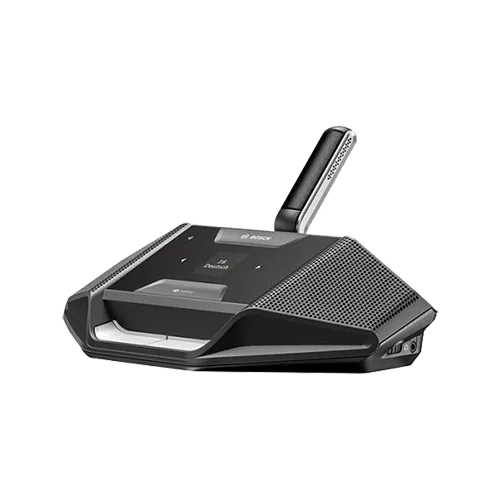

Bosch DCNM-DSL Discussion device with language selector, DICENTIS Discussion device with language selector, 1.44 inch screen and NFC identification reader, Frequency response: 100 Hz to 20 kHz (-3 dB at nominal level), Choice of pluggable microphone to be ordered separately, Supply voltage: 48 VDC, Power consumption: 3.6W.

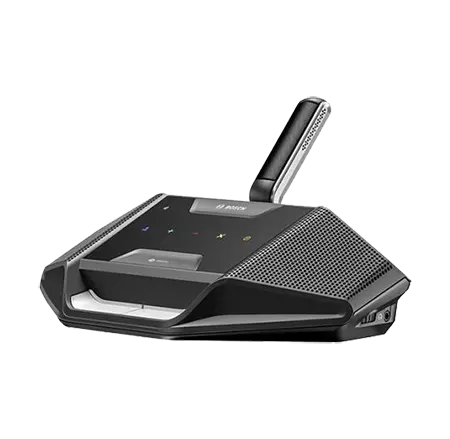

Bosch DCNM-DVT Discussion device with voting, five touch color voting buttons and NFC identification reader, Choice of pluggable microphone to be ordered separately, Configurable as a single participant or chairperson’s device, Power consumption: 3.7W.

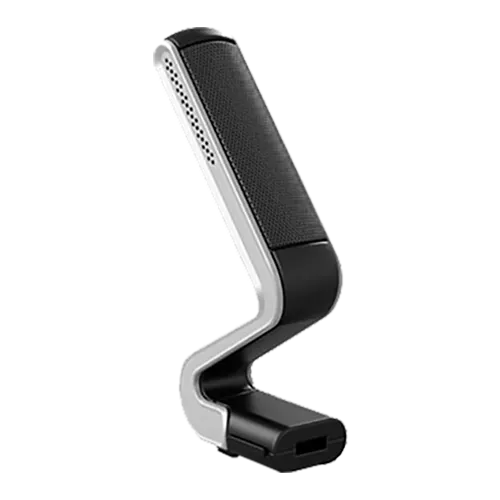

Bosch DCNM-HDMIC DICENTIS High directive microphone, Ultra low noise, Bandwidth: 100 Hz - 15 kHz, Dynamic range > 96 dB, Nominal input: 80 dB SPL, Maximum input: 110 dB SPL, 5 VDC.

Bosch DCNM-MICL, DICENTIS long stem microphone for the DICENTIS Conference System or DICENTIS Wireless Conference System. Bandwidth 125 Hz - 15 kHz, Dynamic range >100 dB, Nominal input: 85 dB SPL, Maximum input: 115 dB SPL, Equivalent noise: 15 dB SPL, Power supply 5 VDC, Power consumption 0.1W.

Bosch DCNM-MICS DICENTIS short stem microphone for the DICENTIS Conference System or DICENTIS Wireless Conference System. Bandwidth 125 Hz - 15 kHz, Dynamic range >100 dB, Nominal input: 85 dB SPL, Maximum input: 115 dB SPL, Equivalent noise: 15 dB SPL, Power supply 5 VDC, Power consumption 0.1W.

Bosch DCNM-WAP DICENTIS Wireless Access Point, light grey color, Stand alone usage, no central control unit needed, Based on standard WiFi according IEEE 802.11n, WPA2 encryption for secure communication, Seamless frequency switching in the 2.4 GHz and 5 GHz band, Controls up to 120 DICENTIS devices for participants, Power supply, adapter and universal mounting bracket included.

Bosch DCNM-WCH05 Charger for 5x battery packs (DCNM‑WLIION). Color traffic black: RAL 9017.

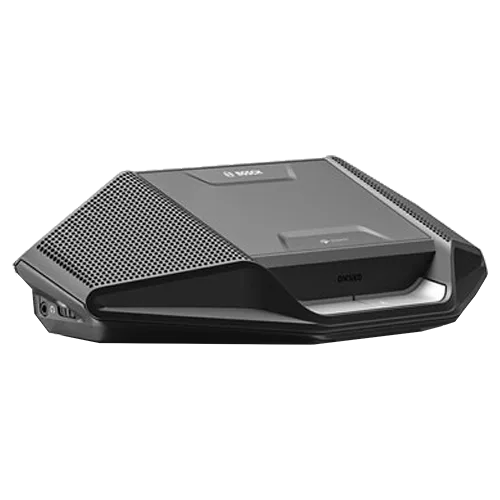

Bosch DCNM-WD DICENTIS Wireless discussion device, WI-FI standard IEEE 802.11n, Frequency Range 2.4 GHz and 5 GHz, Configurable as a participant, dual-use or chairperson Wireless Device by use of web browser interface, Functionality can be expanded with software modules without the need for hardware modification, Pluggable microphone and battery pack to be ordered separately.

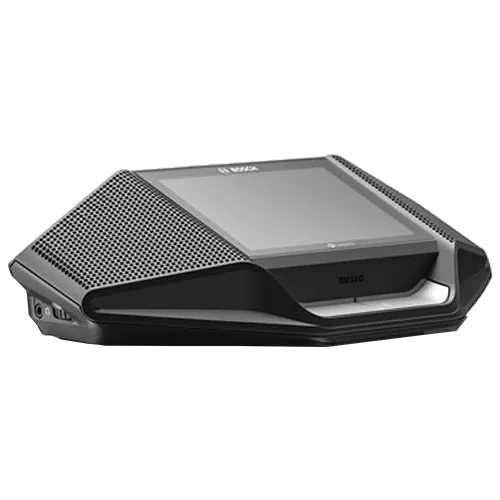

Bosch DCNM-WDE DICENTIS Wireless Device Extended with 4.3 inch, touch screen, NFC identification reader, IEEE 802.11n, Frequency Range: 2.4 GHz and 5 GHz, Configurable as a participant, dual-use or chairperson Wireless Device Extended by use of web browser interface, Functionality can be expanded with software modules without the need for hardware modification, Pluggable microphone and battery pack to be ordered separately.

Bosch DCNM-WLIION Battery Pack for Wireless Device (DCNM‑WD and DCNM‑WDE), lithium‑ion, 7.5 Vdc, 12800 mAh, color: Charcoal.

ITC TS-0300M Full Digital Conference System Controller, with 4.3-inch full-color touch screen, supports up to 4096 wired conference units and 300 wireless conference units, Four microphone management modes: FIFO (first in first out), NORMAL (normal mode), VOICE (voice control mode), APPLY (application mode), DANTE/NC port, PC network port, 100-120VAC / 200-240VAC by switch.

ITC TS-0602 High Integration Digital Desktop Discussion Conference Chairman Unit, Heart shaped projection electrets microphone, Frequency response: 80Hz~16KHz, SNR: 1KΩ, Sensitivity: -34±2dB(0dB=1V/Pa,at 1kHz), Maximum SPL: 100dB(THD>3%), SNR: >80dB, THD: <0.1%, Built-in HIFI speaker and volume control, 3.5mm mono jack, Hand-in-hand extension, Controller power supply DC24V.

ITC TS-0602A High Integration Digital Desktop Discussion Conference Delegate Unit, Cardioid electret microphone, Frequency response: 80Hz~16KHz, SNR: 1KΩ, Sensitivity: -34±2dB (0dB=1V/Pa,at 1kHz), Maximum SPL: 100dB(THD>3%), SNR: >80dB, THD: <0.1%, Built-in HIFI speaker and volume control, 3.5mm mono jack, Hand-in-hand extension, Host power supply DC24V.

ITC TS-0604M Digital Conference System Controller, Four conference modes: FIFO (first-in first-out mode); NORMAL (normal mode); FREE (free mode); APPLY (apply speaking), 128 unit capacity, expansion to 4096 units, Frequency Response: 30 ~ 20KHz, SNR: >72dB(A), Channel Crosstalk: >80 dB, THD: <0.05%, Audio Input: LINE IN: 775mV unbalanced, MIC IN : 50mV unbalanced, Audio Output: LINE OUT: 1V unbalanced, REC OUT: 200mV unbalanced, Output Load: >1K, Connect Cable: Special cables (8 cores), Standard: IEC60914, Black.

ITC TS-0605M Digital Conference System Extension Controller, Smart touch buttons, easy operation. With recording, playback control, conference mode, quantity switch and volume control buttons, With 4 meeting modes: FFIO/ NORMAL/ FREE/ APPLY, Spokesman quantity limitation: adjustable options for 1/2/4/6, Chairman is not limited, Support Max 30 pieces microphone units, Built-in recording function and SD interface, 3.5mm headphone jack, 24V DC.
