V Series Zone Audio Platform
Zone control, right on the wall.
VWP Wall Panel Controller
A color display and one knob for level, source and zone in every room.
V Series Zone Audio Platform
Zone control, right on the wall.
VWP Wall Panel Controller
A color display and one knob for level, source and zone in every room.
Control Every Zone, Right From the Wall.

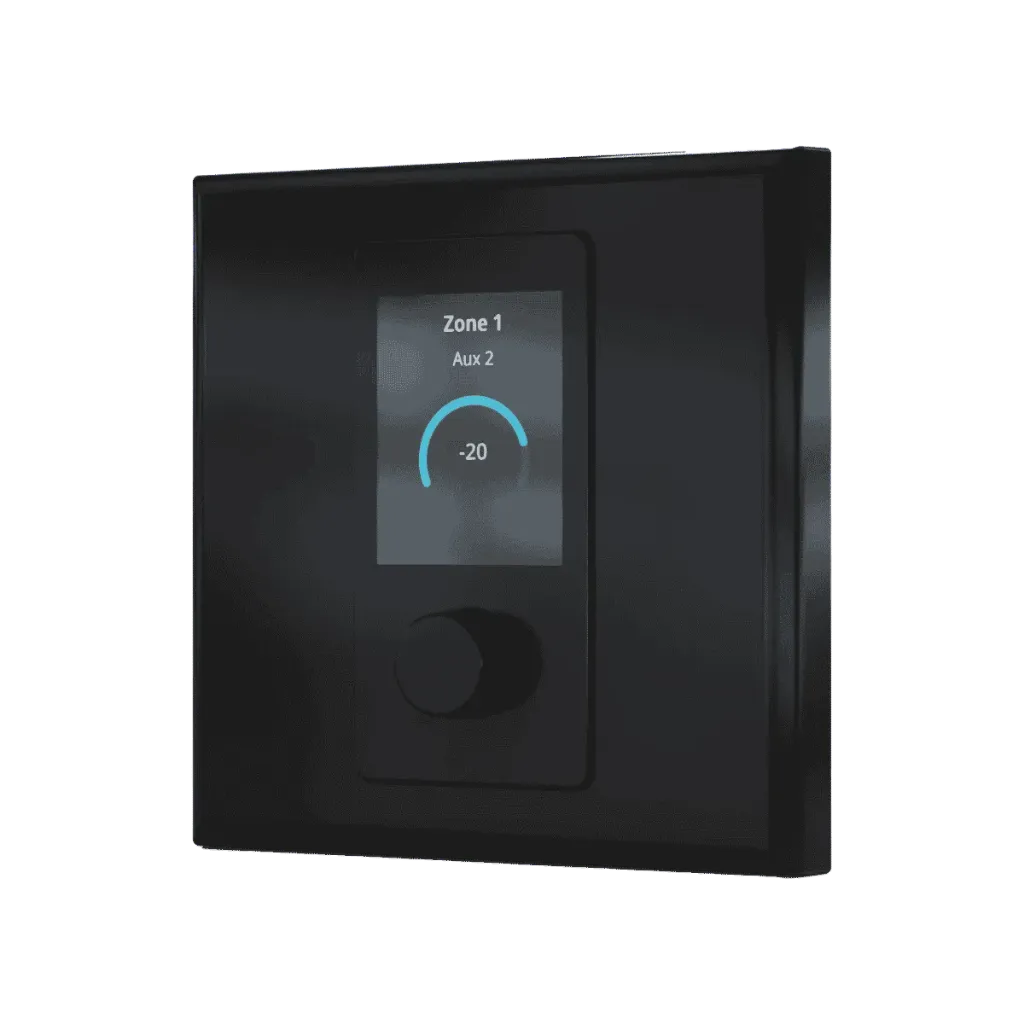

VWP-EU Wall Panel Controller
Volume control · Built for the V Series Zone Audio Platform
Control Every Zone, Right From the Wall.
VWP-EU Wall Panel Controller
Source selection · Volume control · Built for the V Series Zone Audio Platform
Dynacord VWP-EU Product Highlights
Explore the key capabilities of the Dynacord VWP-EU wall panel.
Colour Screen
1.77" screen and a push rotary knob.
Room Control
Volume, mute, zone, source and media playback.
PIN Lock
User profiles and PIN against unwanted changes.
Black or White
Both front panels and knobs are in the box.
Daisy-Chain
Up to 16 per VZX-8.
Bus Powered
0.4 W from the RJ45 bus, no power supply.
Flush Wall Mounting
Fits a standard European flush-mount wall box, with a slim 86.3 × 86.3 mm frame that sits just 11.5 mm off the wall for a clean, low-profile finish.
Simple RJ45 Connection
Two RJ45 ports on the rear let you connect the panel to the VZX-8 Zone Audio Processor with standard network cable, keeping installation quick and tidy.
Display & Rotary Control
A clear display and a single rotary knob let users select sources and adjust volume in their zone, with no training needed.
Key specs
- 1.77" colour screen, push rotary knob
- Level, mute, zone, source, media playback
- PIN lock, user profiles, 150+ languages
- Bus powered from the VZX-8, 0.4 W or less
- RJ45 daisy-chain, up to 16 per VZX-8 (8 per port)
- 60 mm round back box, at least 60 mm deep
- White and black front panels and knobs included; EU kit with 2 Decora plates
Know before you buy
Quick answers about the VWP-EU , and how it compares.
What does the VWP do?
Lets staff change volume, mute, zone, source and media playback in their room on a VZX-8 system.
What does it need?
A VZX-8: it is powered and controlled over the VZX-8 accessory bus. Up to 16 per VZX-8, shared with VCS-8 call stations.
What wall box does it fit, and can I change the colour?
A 60 mm round back box at least 60 mm deep. White and black front panels and knobs are both included, so the colour can be swapped any time.
How does a V Series system fit together?
The VZX-8 is the brain: 20 sources, 8 zones, DSP, scheduled messages and a browser Web App. Its two RJ45 outputs carry zones 1-4 and 5-8 to V600:4 or V600:2 amplifiers, one cable each. VCS-8 call stations and VWP-EU wall panels daisy-chain on its two accessory ports: bus powered, up to 500 m per port, 16 devices in total, at most 8 call stations.
Who supplies Dynacord in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Dynacord across the UAE and support you after the sale. Prices are quoted per project: contact us and we will send a quote.
