V Series Zone Audio Platform
The heart of the system.

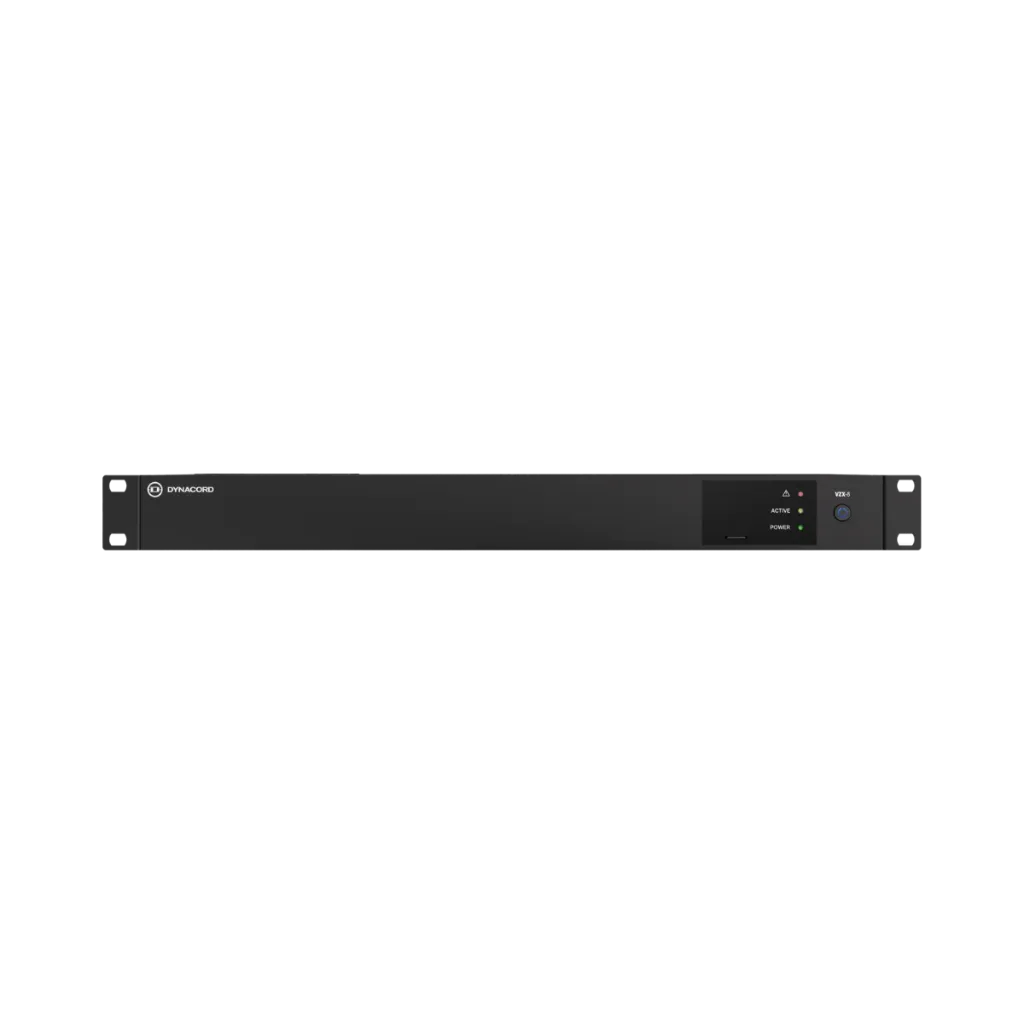

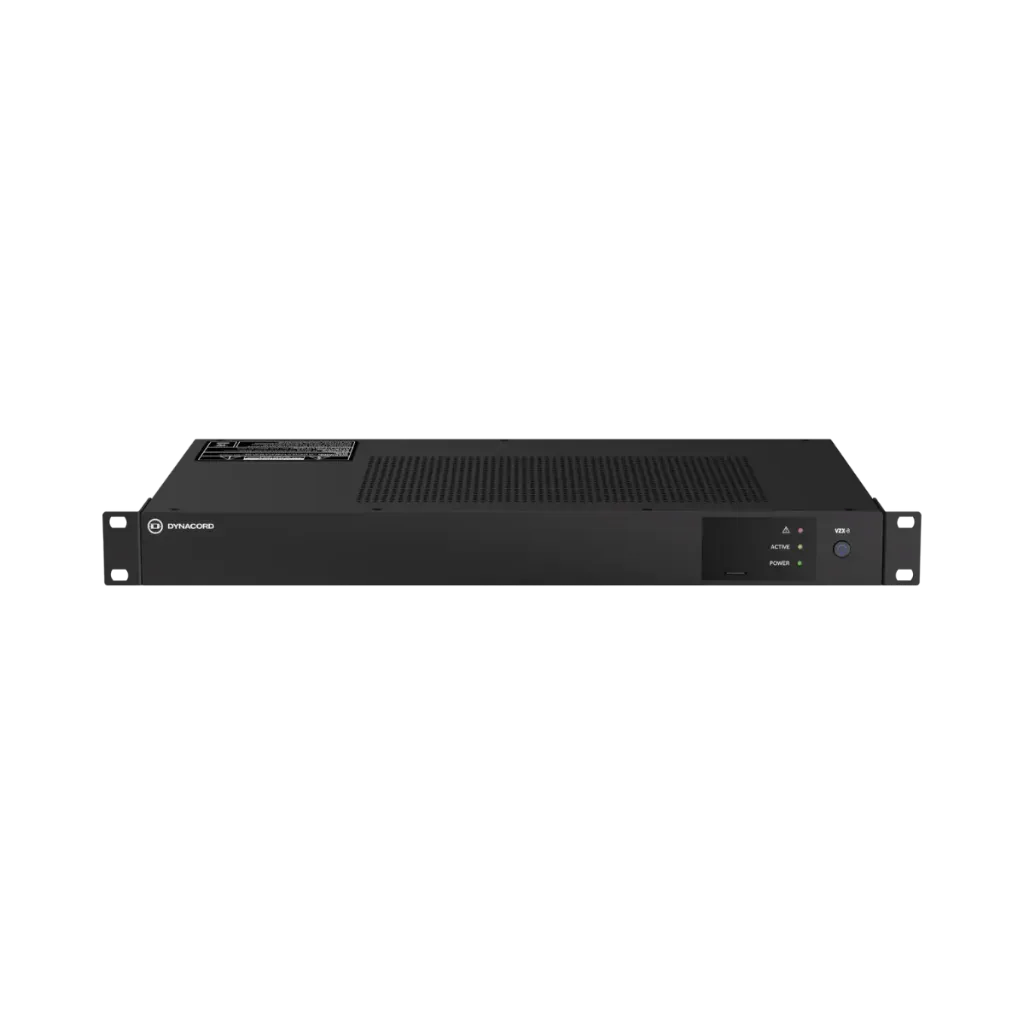

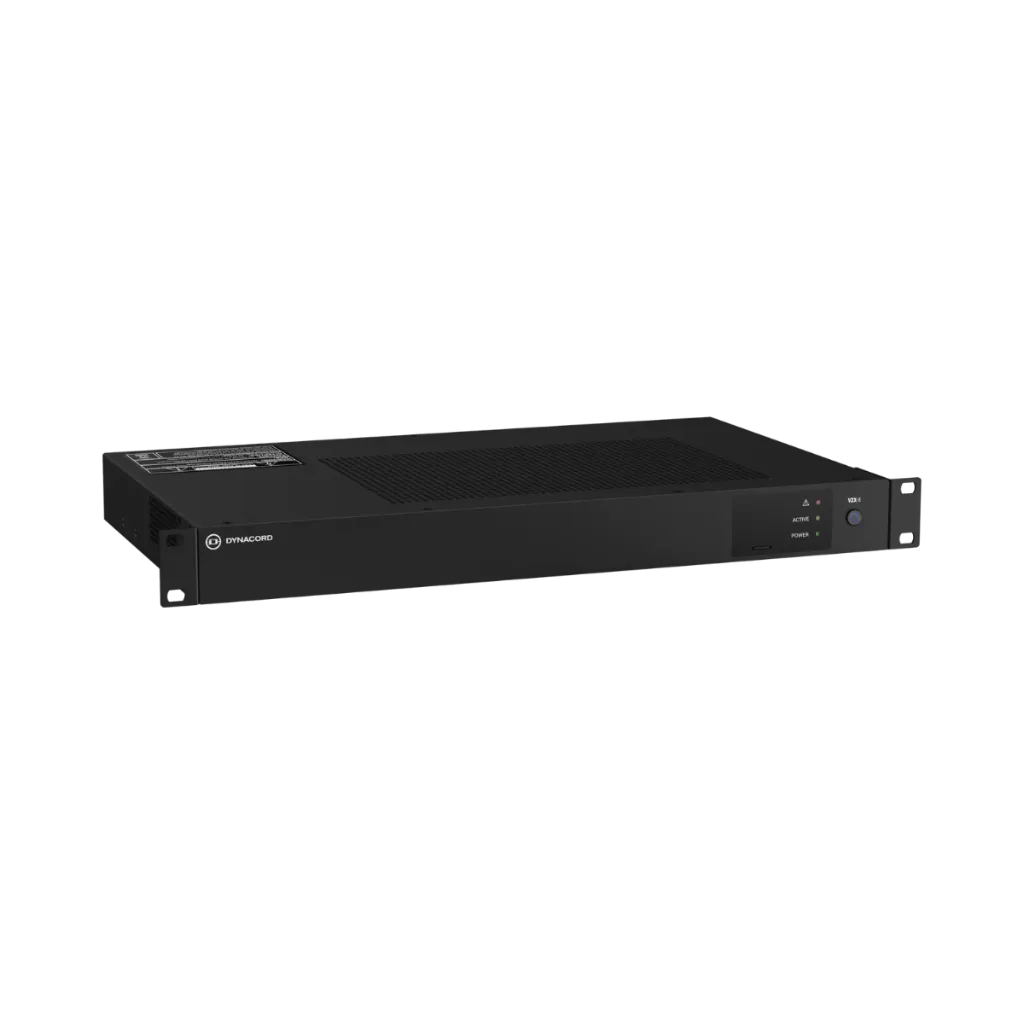

VZX-8 8-Zone Audio Processor
Every zone, source, message and page runs through one 1U processor.
V Series Zone Audio Platform
The heart of the system.
VZX-8 8-Zone Audio Processor
Every zone, source, message and page runs through one 1U processor.
Built into every VZX-8
VZX Web App
Set up, configure and control from any browser
There is nothing to install: open the VZX-8's built-in web app in any browser on a laptop, tablet or phone. Set up zones, messages, paging and wall panels in minutes, and copy and paste processing blocks to finish larger jobs faster. Full-matrix DSP sends any input to any output, with Dynacord FX, AGC and ANC on hand, while the built-in Virtual Mixer with automixer (AMM) handles live mixing. Input routing, zones, output levels and speaker settings all sit on one clear screen, in your choice of language.
Built into every VZX-8
VZX Web App
Set up, configure and control from any browser
There is nothing to install: open the VZX-8's built-in web app in any browser on a laptop, tablet or phone. Set up zones, messages, paging and wall panels in minutes, and copy and paste processing blocks to finish larger jobs faster. Full-matrix DSP sends any input to any output, with Dynacord FX, AGC and ANC on hand, while the built-in Virtual Mixer with automixer (AMM) handles live mixing. Input routing, zones, output levels and speaker settings all sit on one clear screen, in your choice of language.
Dynacord VZX-8 Product Highlights
Explore the key capabilities of the Dynacord VZX-8 zone audio processor.
Eight Zones
Independent processing for 8 zones.
Full Matrix
Route 20 sources to any zone.
Speaker Tuning
Room EQ, FIR, delay and ambient noise compensation per zone.
Messages
8 media players for scheduled and triggered messages.
Web App
Set up and control in a browser, no software.
One-Cable Amps
Two RJ45 outputs feed V600:4 amplifiers.
Application: Mosque Audio System
In a mosque, the VZX-8 brings every prayer space under one compact processor: the main hall, the ladies' section, the outdoor prayer area, walkways, ablution areas and the minaret. Its built-in automixer (AMM) brings up only the mic in use between the imam, khateeb and muezzin, while AGC keeps each voice at a steady level.
The azan can reach the minaret horns and every indoor zone at once, and wall panels let caretakers set each area's level without touching the rack. Full-matrix DSP replaces separate mixers and processors, keeping recitation and khutbah clear even in large, echo-prone halls.
1, 2 Main Prayer Hall
2x zones, 3x mics (imam, khateeb, muezzin), 1x VWP,
Electro-Voice EVID-S
3 Outdoor Prayer Area
1x zone (audio only),
Electro-Voice LRC or EVID-S
4, 5 Walkway / Ablution
2x zones (audio only),
Electro-Voice EVID-C-G2
6, 7 Ladies Prayer
2x zones, 1x VWP,
Electro-Voice EVID-S
- 8x Zones
- 3x Mic Inputs (Imam, Khateeb, Muezzin)
- 2x VWP Wall Panels
- 1x VZX Web App Configuration Tablet
- Electro-Voice EVID-S Surface Mount Speakers
- Electro-Voice LRC Column Speakers (outdoor option)
- Electro-Voice EVID-C-G2 Ceiling Speakers
- Bosch Horn Loudspeakers (minaret)
Clear speech with AGC:
Keeps imam, khateeb and muezzin voices at a steady level, close to the mic or a step back, in every zone.
8 Minaret
1x zone (audio only),
Bosch horn loudspeakers
Equipment Space
VZX-8, V600:2, V600:4
Application: Mosque Audio System
In a mosque, the VZX-8 brings every prayer space under one compact processor: the main hall, the ladies' section, the outdoor prayer area, walkways, ablution areas and the minaret. Its built-in automixer (AMM) brings up only the mic in use between the imam, khateeb and muezzin, while AGC keeps each voice at a steady level.
The azan can reach the minaret horns and every indoor zone at once, and wall panels let caretakers set each area's level without touching the rack. Full-matrix DSP replaces separate mixers and processors, keeping recitation and khutbah clear even in large, echo-prone halls.
1, 2 Main Prayer Hall
2x zones, 3x mics (imam, khateeb, muezzin), 1x VWP,
Electro-Voice EVID-S
3 Outdoor Prayer Area
1x zone (audio only),
Electro-Voice LRC or EVID-S
4, 5 Walkway / Ablution
2x zones (audio only),
Electro-Voice EVID-C-G2
6, 7 Ladies Prayer
2x zones, 1x VWP,
Electro-Voice EVID-S
- 8x Zones
- 3x Mic Inputs (Imam, Khateeb, Muezzin)
- 2x VWP Wall Panels
- 1x VZX Web App Configuration Tablet
- Electro-Voice EVID-S Surface Mount Speakers
- Electro-Voice LRC Column Speakers (outdoor option)
- Electro-Voice EVID-C-G2 Ceiling Speakers
- Bosch Horn Loudspeakers (minaret)
Clear speech with AGC:
Keeps imam, khateeb and muezzin voices at a steady level, close to the mic or a step back, in every zone.
8 Minaret
1x zone (audio only),
Bosch horn loudspeakers
Equipment Space
VZX-8, V600:2, V600:4
Zone Audio for Commercial Spaces
Bring music, paging and audio control together across restaurants, hospitality venues and educational facilities with the Dynacord VZX-8.
Restaurants & Bars
Easily manage background music and paging across dining areas, bars, and other zones, with flexible source selection and precise level control for each space.
Hotels & Hospitality
Coordinate background music & announcements across reception areas, lounges and other zones, with local controls for staff through compatible VWP wall panels.
Schools & Education
Route speech, announcements and audio sources to selected zones across educational facilities, using compatible VCS-8 call stations for paging and system control.
Rack Installation and Ventilation
The Dynacord VZX-8 fits standard 19-inch racks or cases using the supplied rack ears. Allow access to rear connections and maintain clear ventilation around the processor for reliable operation.
Included Rack Ears
Supplied rack ears support installation in a standard 19-inch equipment rack. Rack-fixing screws and washers are not included.
Rear Airflow Clearance
Dynacord recommends an air duct of at least 50 mm between the rear panel and the cabinet or rack-case wall, extending to the top ventilation openings.
Operating Environment
Keep ventilation openings clear and install within the specified ambient temperature range of 5–40 °C.
Key specs
- 8 balanced zone outputs; 2 x RJ45 line outputs (AES72-1E) for zones 1-4 and 5-8
- 8 mic / line inputs with 48 V phantom, 4 RCA, 8 media players, EMG input
- Full matrix; per input HPF, 4-band EQ, gate, compressor / AGC, ducking
- Per output room EQ, 513-tap FIR, crossover, 150 ms delay, ambient noise compensation, limiter
- Electro-Voice and Dynacord speaker presets
- MP3 / WAV / AAC, 300 MB internal + 32 GB microSD
- Browser Web App, JSON-RPC, Crestron and Q-SYS plug-ins, 8 GPIO
- 2 accessory ports: 16 devices (max 8 VCS-8), 500 m each
- Ethernet for control only (no Dante / AES67)
- 1U, 483 x 44.2 x 269.5 mm, 3.58 kg
Dynacord VZX-8 Technical Specifications
| Group | Specification | Official value |
|---|---|---|
| Overview | Product type | 8-zone audio processor |
| Overview | Total processed input sources | 20 |
| Audio inputs | Mic/Line inputs | 8 |
| Audio inputs | RCA inputs | 4, summed mono |
| Audio inputs | Digital sources: media player and message player | 8 mono or 4 stereo |
| Audio inputs | Emergency override input | 1, Euroblock |
| Audio outputs | Processed system zones | 8 |
| Audio outputs | Line outputs | 8 |
| Audio outputs | RJ45 line outputs | 2 × RJ45, in parallel with output connectors, for V Series amplifiers (AES72-1E) |
| DSP and mixing | Routing | Full Matrix DSP: any input to any zone output |
| DSP and mixing | Zone mixes | 8; multiple active inputs with configured levels |
| DSP and mixing | Virtual mixer | Automixer (AMM) for all Mic/Line inputs |
| DSP and mixing | Sample rate | 48 kHz |
| Audio performance | Frequency response | 20 Hz to 20 kHz (±0.5 dB) |
| Audio performance | THD+N | <0.003% at 0 dBu input/output, 0 dB gain, 1 kHz |
| Audio performance | Equivalent input noise | <−125 dB, 20 Hz to 20 kHz, A-weighted |
| Audio performance | Analog input to output latency | <0.31 ms |
| Storage | Internal storage | 300 MB |
| Storage | Included memory card | 32 GB microSD |
| Control | GPIO | 8, freely assignable as inputs or outputs |
| Control | Network control port | 1 × RJ45 (100/1000 Mbit) |
| Accessories | Accessory ports | 2 × RJ45 |
| Accessories | Maximum accessories | 8 per port; 16 per VZX-8 |
| Accessories | Maximum VCS-8 call stations | 8 per VZX-8 |
| Accessories | Maximum cable length | Up to 500 m (1,640 ft) per accessory port |
| Power | Supply | 100–240 VAC, 50–60 Hz (IEC appliance inlet) |
| Power | Consumption | 55 W maximum |
| Construction | Finish | RAL 9017 Traffic black |
| Construction | Dimensions with rack ears (W × H × D) | 483 × 44.2 × 269.5 mm |
| Construction | Dimensions without rack ears (W × H × D) | 438 × 44.2 × 270 mm |
| Construction | Net weight | 3.58 kg |
| Environment | Ambient temperature | 5–40 °C |
| Identification | Order number | VZX-8 | F.01U.426.620 |
Know before you buy
Quick answers about the VZX-8 , and how it compares.
Where does the VZX-8 fit?
It is made for paging plus background and foreground music in up to 8 zones: hotels, restaurants, retail, gyms, offices. It is not a voice alarm system.
How many sources can it handle?
20: 8 mic / line inputs with phantom power, 4 RCA inputs and 8 internal media players, plus the EMG override input.
Do I need software to configure it?
No. It runs a browser Web App; for control systems there are JSON-RPC and Crestron and Q-SYS plug-ins. The Ethernet port is for control only, not Dante.

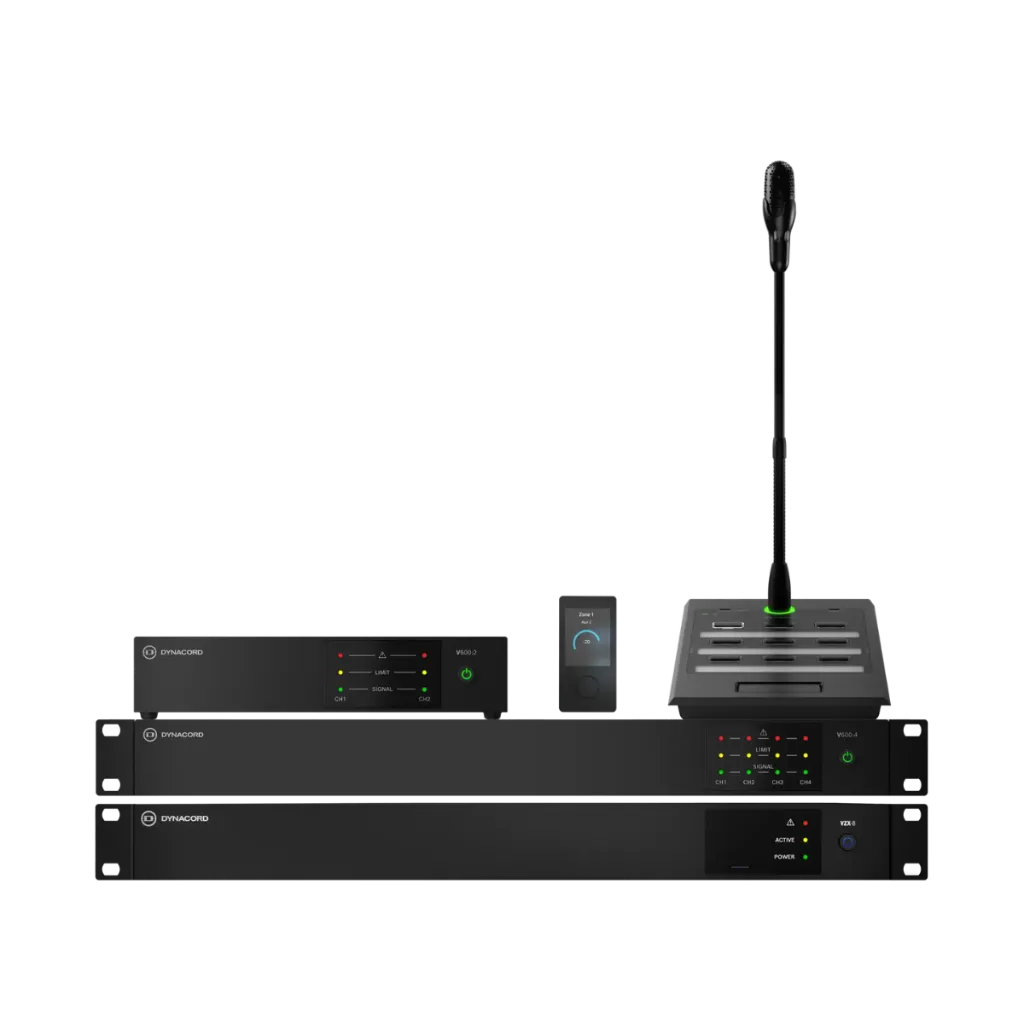

How does a V Series system fit together?

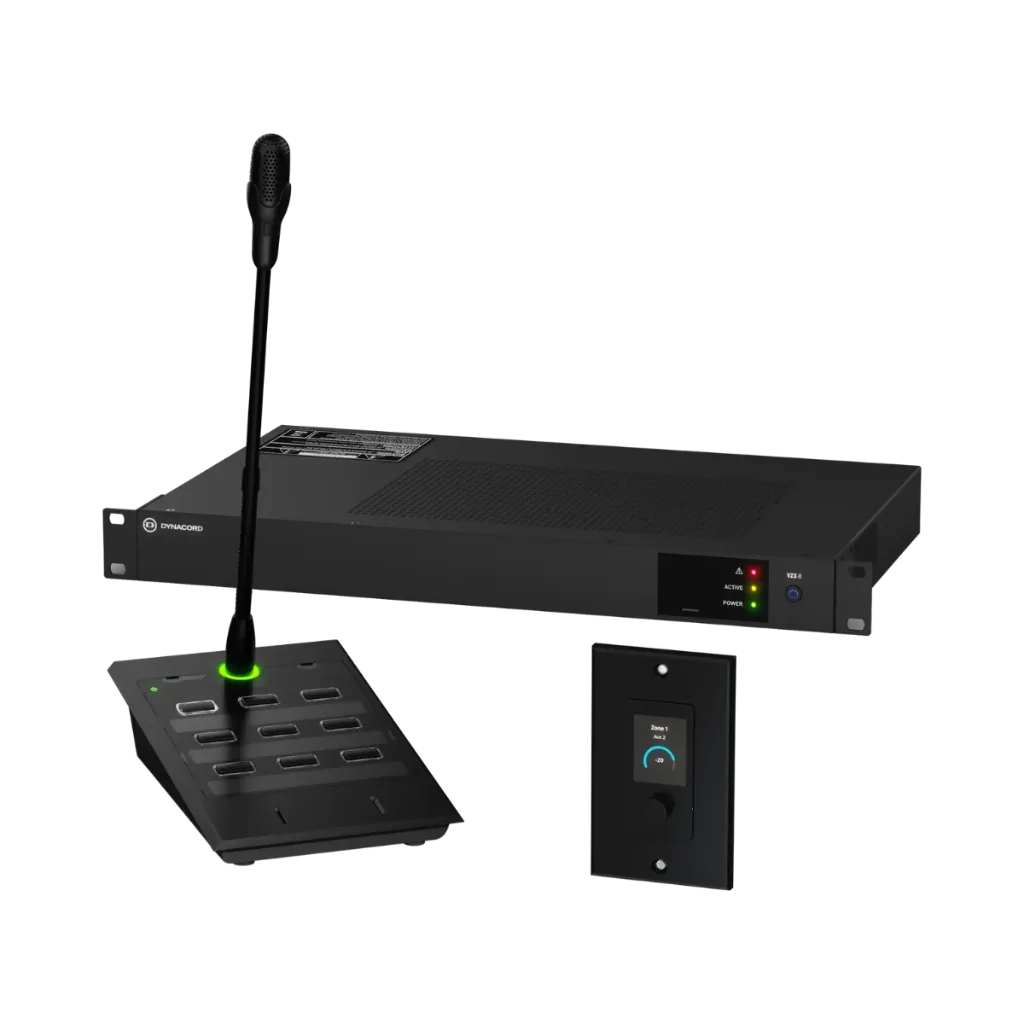

The VZX-8 is the brain: 20 sources, 8 zones, DSP, scheduled messages and a browser Web App. Its two RJ45 outputs carry zones 1-4 and 5-8 to V600:4 or V600:2 amplifiers, one cable each. VCS-8 call stations and VWP-EU wall panels daisy-chain on its two accessory ports: bus powered, up to 500 m per port, 16 devices in total, at most 8 call stations.
Where does each system stand: U Series, V Series or Bosch voice alarm?
| System | Made for | Zones | Music | EN 54-16 voice alarm |
|---|---|---|---|---|
| Dynacord U Series | One area: small shop, office, small Masjid | 1 | Background | No |
| Dynacord V Series | Hotels, restaurants, retail, gyms, offices, Masjid complexes | 8 per VZX-8 | Background and foreground | No |
| Bosch PLENA VAS | Small to medium buildings with voice alarm | 6, expandable | Background | Yes |
| Bosch PAVIRO | Medium to large buildings | 12, expandable | Background | Yes |
| Bosch PRAESENSA | Large and multi-building sites, IP based | Scalable | Background | Yes |
The V Series is made for paging plus background and foreground music. In a building that needs a voice alarm it can run music and paging day to day while PLENA VAS, PAVIRO or PRAESENSA takes over every zone through its EMG input in an emergency.
Who supplies Dynacord in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and is covered by the manufacturer warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Dynacord across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
