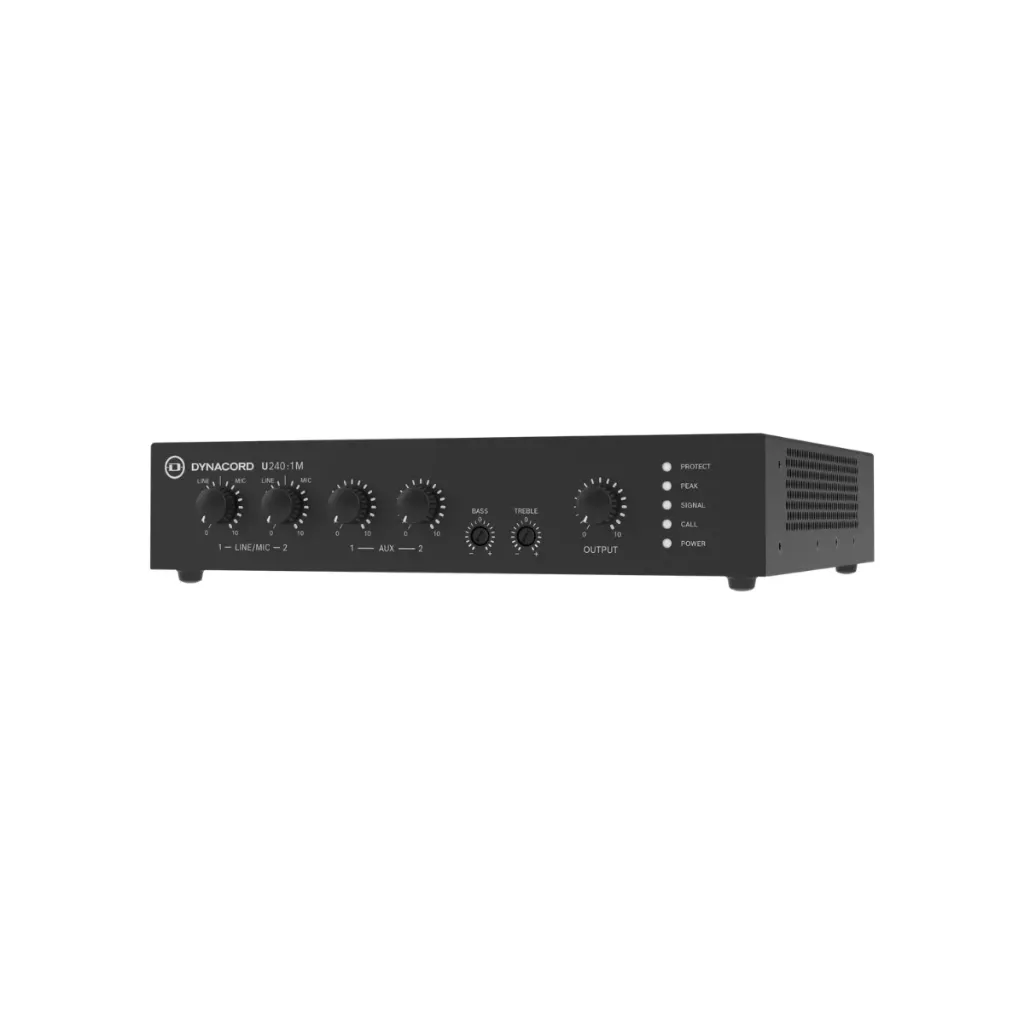

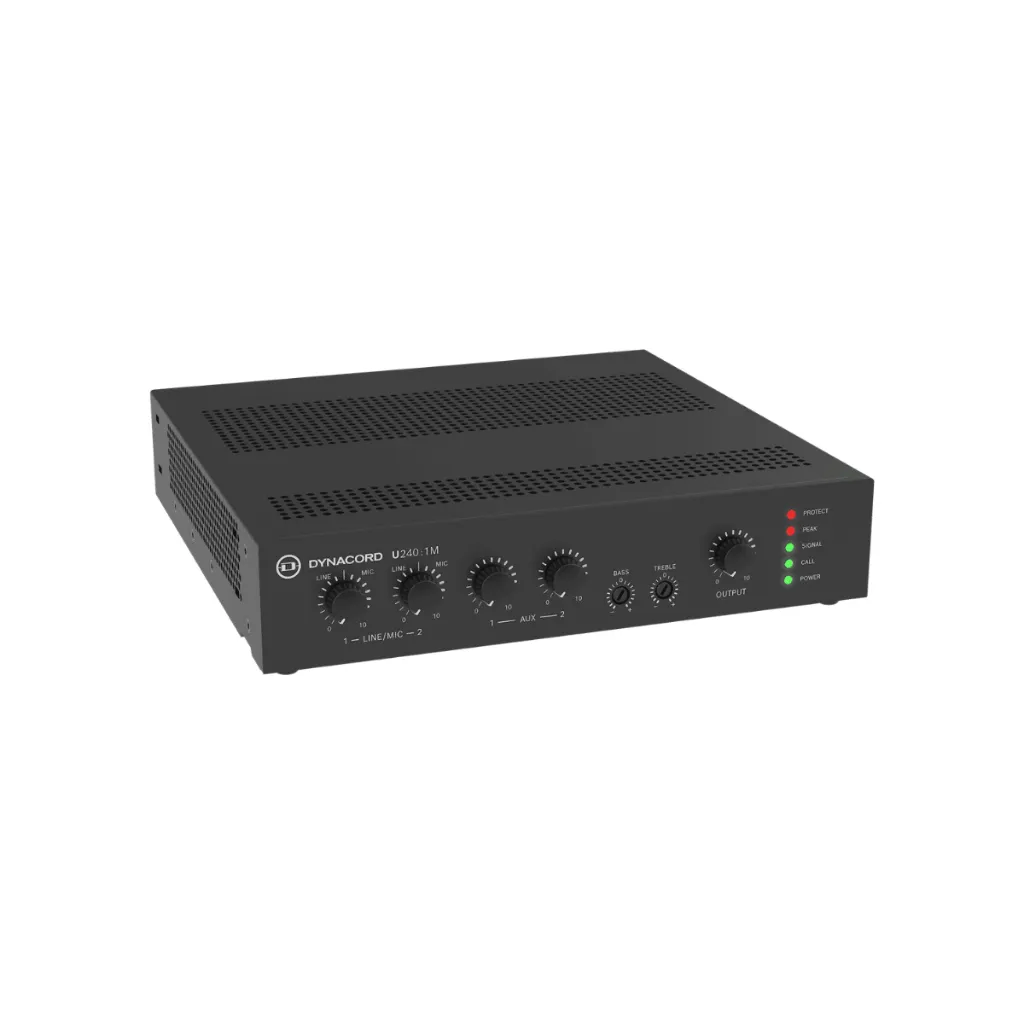

Mixer Amplifier
U240:1M-EU
One compact mixer, every announcement heard.
- 240 W Output
- 4 Inputs + Emergency Override
- VOX Ducking & Chime
Mixer Amplifier
U240:1M-EU
One compact mixer, every announcement heard.
- 240 W Output
- 4 Inputs + Emergency Override
- VOX Ducking & Chime
Dynacord U240:1M-EU Product Highlights
Explore the key capabilities of the Dynacord U240:1M-EU mixer amplifier.
240 W
About 32 6 W ceiling speakers at 100 V.
Any Speaker Line
4 ohm, 8 ohm, 70 V or 100 V by DIP switch.
Paging
UCS-1 call station on MIC 1 with chime and override.
VOX Ducking
Music drops 0 to 45 dB when someone speaks on MIC 2.
Emergency Override
EMG input lets a voice alarm system take over.
4-Step Fan
Temperature-controlled fan for full power.
Mosques & Large Prayer Halls
A large prayer hall needs clear, even sound from the mihrab to the last row. With 240 W driving 100 V / 70 V speaker lines, the U240:1M covers wide prayer halls, galleries and courtyards, so every word of the khutbah, azaan and announcements is heard clearly and without distortion.
Islamic Centres, Madrasas & Imambargahs
Domes and hard surfaces make speech harder to understand. Paired with column or ceiling speakers, the U240:1M delivers dependable, intelligible sound for daily prayers, dars and gatherings, built to run reliably day after day.
Music Schools & Training Studios
: Music schools need instructors to be heard over the instruments. The U240:1M powers the room's PA for vocals, playback tracks and announcements, so teachers and students hear each other clearly during sessions.
Conference Rooms & Corporate Events
Presentations, seminars and training sessions all depend on the speaker being heard. The U240:1M delivers clear voice reinforcement from the podium to the back of the room, with enough power for large conference halls and event spaces.
Key specs
- 240 W rated (IHF-A-202)
- Output 4 ohm, 8 ohm, 70 V or 100 V by DIP switch
- MIC 1: XLR or 5-pin Euroblock for the UCS-1 call station, override, two-tone chime
- MIC 2: XLR with VOX ducking 0 to 45 dB
- 48 V phantom on both microphone inputs
- 2 x RCA aux, summed to mono
- EMG input, line or 100 V
- Low cut 20 Hz, switchable 120 Hz high-pass, bass and treble
- Temperature-controlled 4-step fan
- 1U, half rack, 44.2 x 218 x 217.7 mm
General
| Specification | Value |
|---|---|
| Model | U240:1M-EU |
| Order number | F.01U.425.749 |
| Product type | Mixer amplifier, 1-channel |
| Series | Dynacord U Series |
| Output stage topology | Class D |
Output Power & Performance
| Specification | Value |
|---|---|
| Rated output power (IHF-A-202) | 240 W |
| Output modes | 4Ω / 8Ω (LoZ), 70V / 100V (HiZ) |
| Max output voltage (1 kHz, THD 0.5%, no load) | 31 V (4Ω) / 45 V (8Ω) / 71 V (70V) / 102 V (100V) RMS |
| Frequency response, any input to output (-3 dB) | < 20 Hz – 20 kHz |
| Frequency response, EMG input to output (-3 dB) | < 20 Hz – 15 kHz |
| Frequency response, any input to line output | < 10 Hz – 60 kHz |
| Distortion | < 0.5% at rated output power, 1 kHz |
| Signal-to-noise ratio (A-weighted) | > 100 dB |

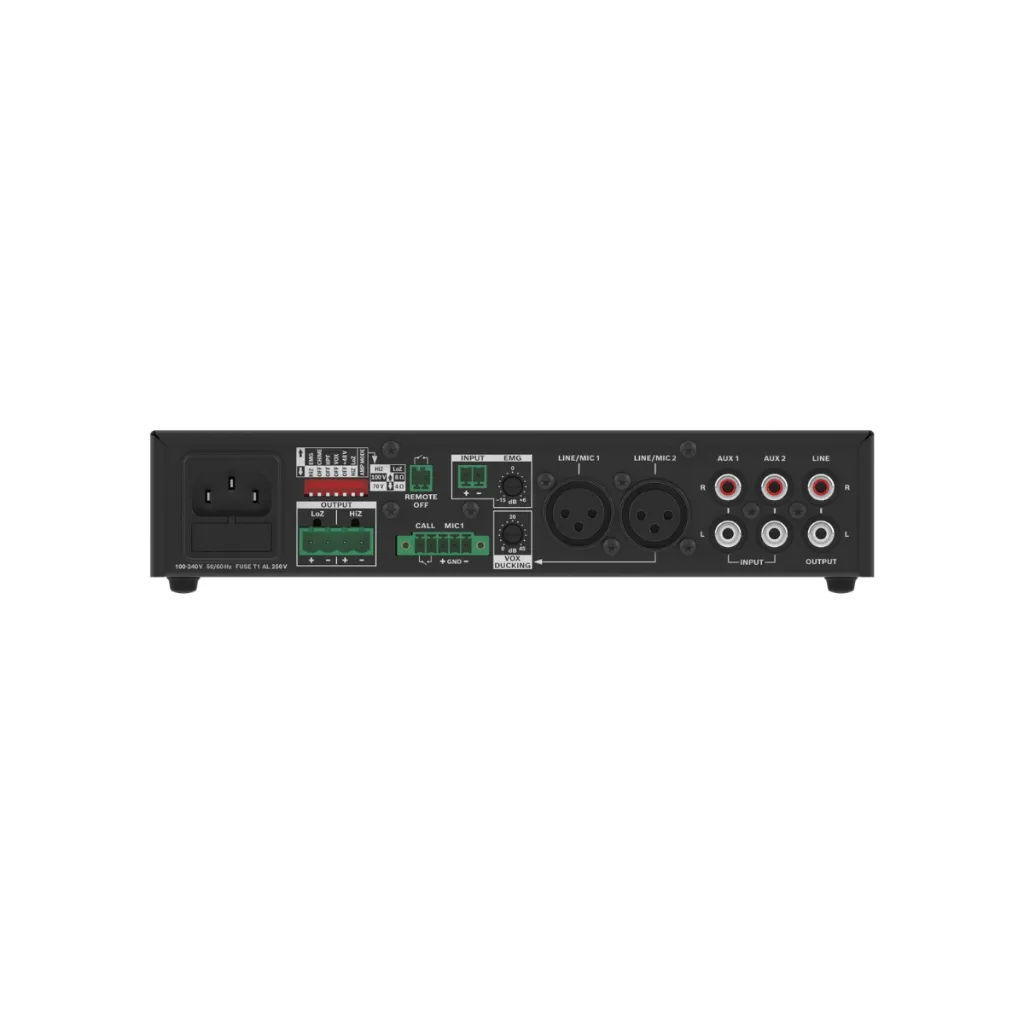

Inputs
| Specification | Value |
|---|---|
| Number of inputs | 2 mic/line, 2 AUX, 1 EMG (priority) |
| LINE/MIC1 | 3-pin XLR balanced, plus 5-pin Euroblock balanced for call station with contact override and chime |
| LINE/MIC2 | 3-pin XLR balanced, with VOX ducking override |
| Phantom power (MIC1 & MIC2) | 48V DC, switchable |
| AUX1 / AUX2 | RCA, stereo summed to mono, unbalanced |
| EMG input | 2-pin Euroblock, balanced, line or 100V |
| Mic sensitivity (max gain) | -68 dBu (300 µV) |
| AUX sensitivity | -11.8 dBu (L or R only) / -17.8 dBu (L and R) |
| Max input level | LINE/MIC +7.5 dBu, AUX +22 dBu (L or R) / +16 dBu (L and R), EMG line +11.5 dBu, EMG 100V +44.5 dBu |
| Input impedance | MIC 10 kΩ, AUX 4.7 kΩ, EMG line > 15 kΩ, EMG HiZ > 470 kΩ |
| Mic dynamic range | 60 dB |
| Equivalent input noise | < -115 dBu |
Outputs
| Specification | Value |
|---|---|
| Loudspeaker output | 4-pin Euroblock (2 pins LoZ, 2 pins HiZ) |
| Line output | RCA, for linking to another amplifier (e.g., U Series power amplifier) |
Controls & Signal Processing
| Specification | Value |
|---|---|

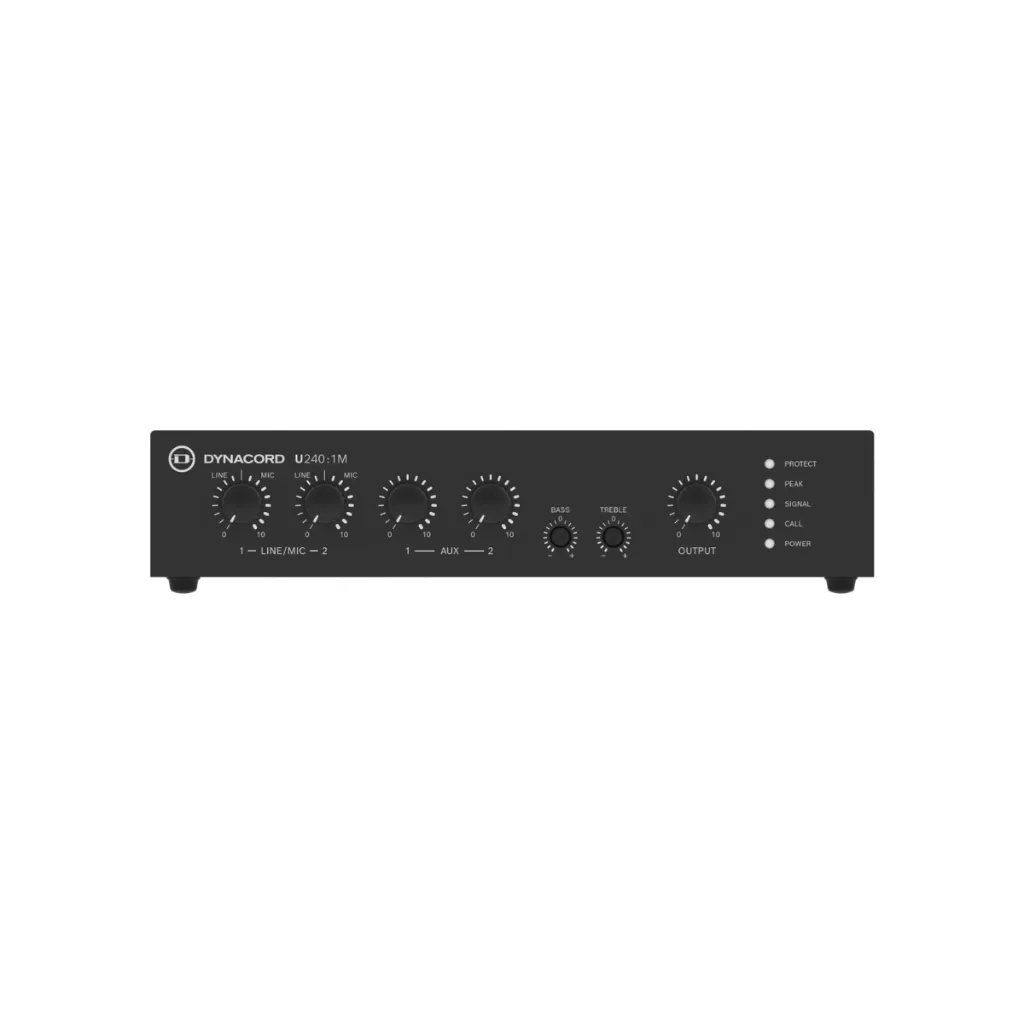

| Front-panel controls | Master gain, per-input gain, bass, treble |
| Bass shelving | ±12 dB at 100 Hz |
| Treble shelving | ±12 dB at 10 kHz |
| Low-cut filter (permanent) | 20 Hz, 12 dB/oct |
| High-pass filter (switchable) | 120 Hz, 12 dB/oct |
| VOX ducking | 0 – 45 dB depth, threshold -60 to +8 dBu |
| Chime | 2-tone chime (on/off) |
| DIP switches | EMG (HiZ/Line), chime, HPF, VOX, phantom power, output (HiZ/LoZ), amp mode (70V/100V, 4Ω/8Ω) |
| Front status LEDs | Protect, Peak, Signal, Call, Power |
Power
| Specification | Value |
|---|---|
| Mains voltage | 100 – 240 VAC ±10%, 50/60 Hz |
| Standby (remote off) | 1.25 W |
| Idle consumption, LoZ mode | 10 W (4Ω) / 12 W (8Ω) |
| Idle consumption, HiZ mode | 10 W (70V) / 14 W (100V) |
| Consumption at 1/8 rated power | 55 W |
| Remote power on/off | 2-pin Euroblock, contact closure |
Protection
| Specification | Value |
|---|---|
| Amplifier | Audio limiter, high temperature, DC, HF, short circuit, overcurrent |
| Power supply | Mains over/under voltage, inrush current limiter, mains overcurrent, high temperature |
Environmental
| Specification | Value |
|---|---|
| Cooling | Convection, with four-stage temperature-controlled fan (Off / Slow / Medium / Fast) |
| Operating temperature | -5°C to +45°C |
| Storage temperature | -40°C to +70°C |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 44.2 × 218 × 217.7 mm (1.74 × 8.6 × 8.57 in) |
| Form factor | 1RU, half-rack width |
| Net weight | 1.9 kg without accessories / 2.4 kg with accessories |
| Shipping weight | 2.8 kg |
| Color | RAL 9017 Traffic Black |
| IEC protection class | Class I (grounded) |
| Mounting | Stand-alone, 19" rack, rack side-by-side, half 19" rack, table-top, under-table |
Know before you buy
Quick answers about the U240:1M-EU, and how it compares.
Where does the U240:1M-EU fit?
A one-zone mixer amplifier for large restaurants, banquet halls and large Masjids: about 32 6 W ceiling speakers at 100 V. For several zones with background and foreground music, the V Series; for a voice alarm, Bosch PLENA VAS, PAVIRO or PRAESENSA.
Which paging microphone?
The UCS-1 call station on MIC 1: push-to-talk, override and the two-tone chime. It is the same as the older Bosch PLE-1CS, which also works.
U60, U120 or U240?
| Model | Power | 6 W speakers at 100 V* | Low cut | Cooling |
|---|---|---|---|---|
| U60:1M-EU | 60 W | 8 | 70 Hz | Fanless |
| U120:1M-EU | 120 W | 16 | 20 Hz | 4-step fan |
| U240:1M-EU | 240 W | 32 | 20 Hz | 4-step fan |
Same inputs, controls and size; choose by power. *With 20% headroom: 60 W x 0.8 / 6 W = 8.
What can I connect to a U Series mixer amplifier?
- MIC 1: microphone or line, 48 V phantom, and the UCS-1 call station on its 5-pin Euroblock (override and two-tone chime).
- MIC 2: microphone or line with VOX ducking: music drops 0 to 45 dB when someone speaks.
- AUX: two RCA inputs, stereo summed to mono, for music.
- EMG: line or 100 V override from a voice alarm system.
Output: 4 ohm, 8 ohm, 70 V or 100 V by DIP switch.

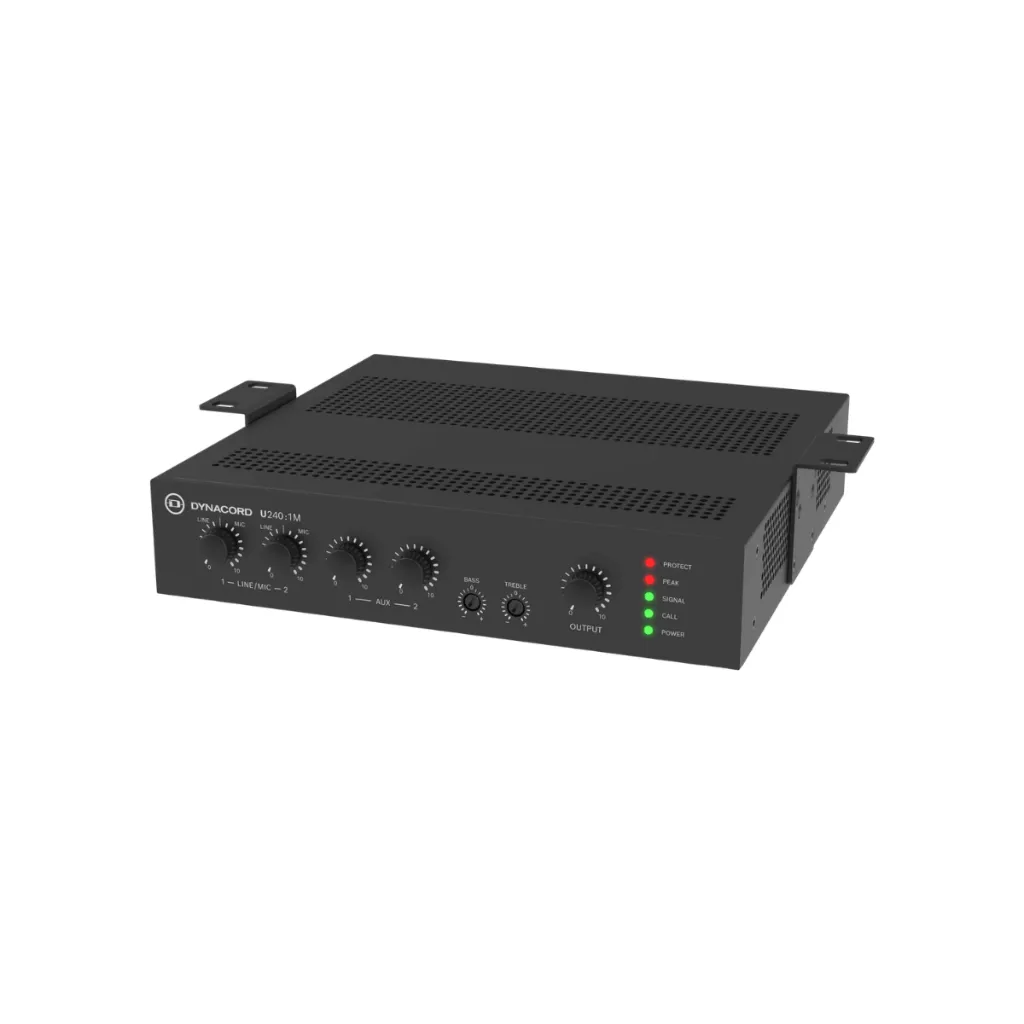

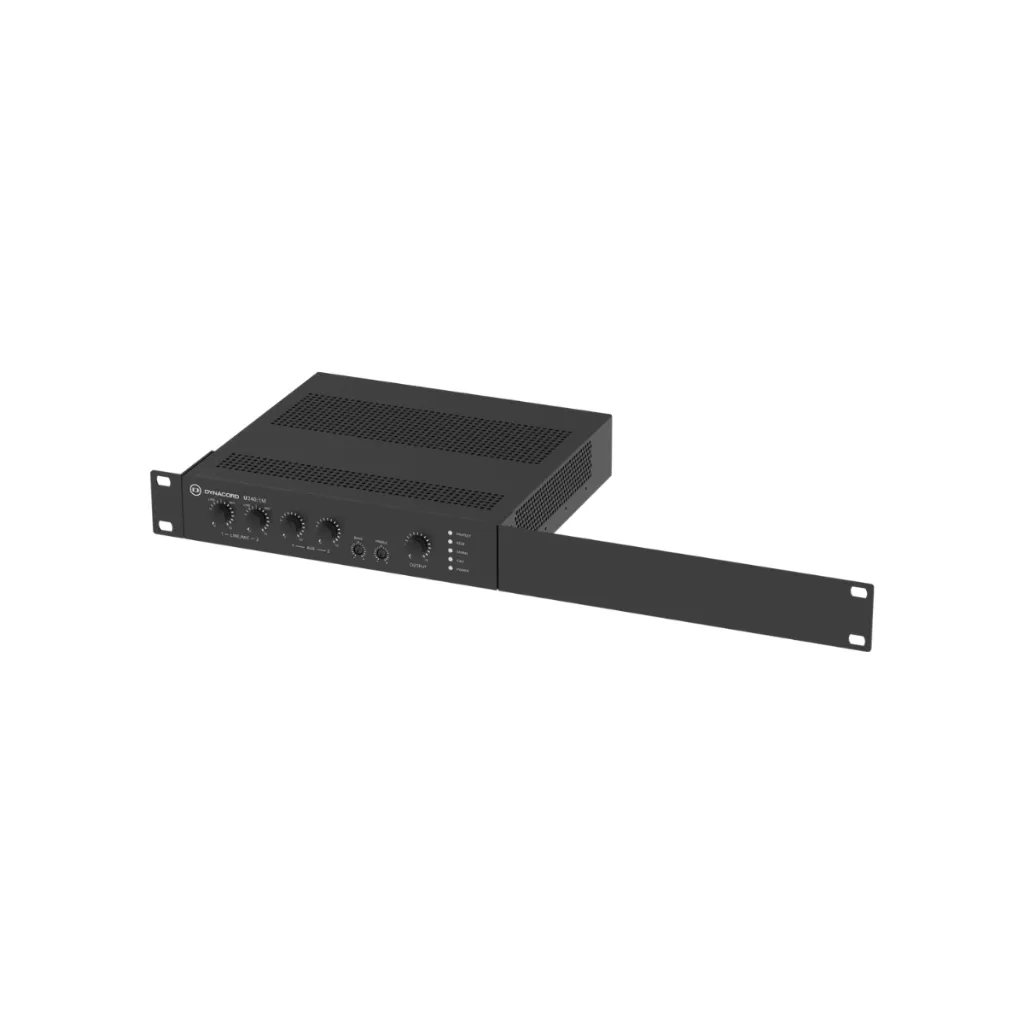

How is a U Series amplifier installed?
1U high and half a rack wide. The supplied brackets fit it alone in a 19" rack, two side by side in one rack space (also next to a V600:2), on a table or under a table.
Can it connect to a fire alarm or voice alarm system?
Yes. The EMG input (line or 100 V) overrides everything, so a certified voice alarm system can take over the speakers in an emergency. The amplifier itself is not EN 54-16 certified; for certified voice alarm use Bosch PLENA VAS, PAVIRO or PRAESENSA.
Where does each system stand: U Series, V Series or Bosch voice alarm?
| System | Made for | Zones | Music | EN 54-16 voice alarm |
|---|---|---|---|---|
| Dynacord U Series | One area: small shop, office, small Masjid | 1 | Background | No |
| Dynacord V Series | Hotels, restaurants, retail, gyms, offices, Masjid complexes | 8 per VZX-8 | Background and foreground | No |
| Bosch PLENA VAS | Small to medium buildings with voice alarm | 6, expandable | Background | Yes |
| Bosch PAVIRO | Medium to large buildings | 12, expandable | Background | Yes |
| Bosch PRAESENSA | Large and multi-building sites, IP based | Scalable | Background | Yes |
The V Series is made for paging plus background and foreground music. In a building that needs a voice alarm it can run music and paging day to day while PLENA VAS, PAVIRO or PRAESENSA takes over every zone through its EMG input in an emergency.
Who supplies Dynacord in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and is covered by the manufacturer warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Dynacord across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
