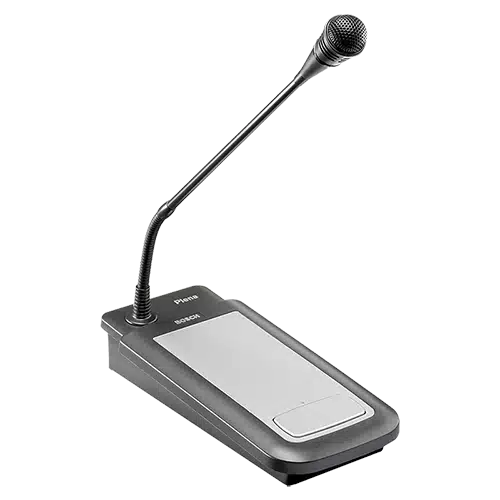

The Plena tabletop microphone is an elegant, high-quality unidirectional condenser tabletop microphone, designed to make calls in a public address system. Its rubber feet and heavy metal base ensure stability on any flat surface.
Features
PTT-key for calls for activation
Momentary or toggle
Green LED, indicating microphone active
Stable metal base design with fixed 2 m cable and lockable Euro style connector
Phantom powered by amplifier
Technical Specifications
|
Phantom Power Supply |
|
|
Voltage range |
12 to 48 V |
|
Current consumption |
<8 mA |
|
Performance |
|
|
Sensitivity |
0.7 mV @ 85 dB SPL (2 mV/Pa) |
|
Maximum input sound level |
110 dB SPL |
|
Distortion |
<0.6% (maximum input) |
|
Input noise level (equiv.) |
28 dB SPLA (S/N 66 dBA ref. 1 Pa) |
|
Frequency response |
100 Hz to 16 kHz |
|
Output impedance |
200 ohm |
|
Base dimensions (H x W x D) |
40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in) |
|
Weight |
Approx. 1 kg (2.2 lb) |
|
Color |
Charcoal with silver |
|
Stem length with mic. |
390 mm (15.35 in) |
|
Cable length |
2 m (6.56 ft) |
|
Operating temperature |
-10 ºC to +45 ºC (14 ºF to +113 ºF) |
|
Storage temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
