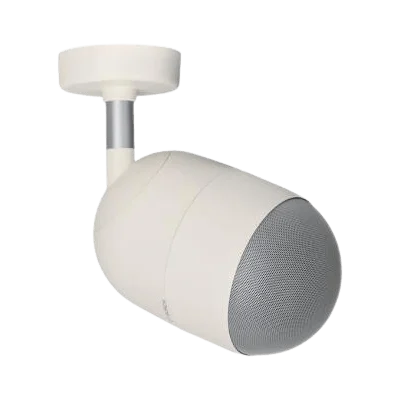

LP1-UC10E-1
Uni-directional sound projector, 10W
10 / 5 / 2.5 W | ABS, metal grille | 86 dB SPL (1W, 1m) | 75 Hz to 20 kHz | EN54-24
LP1-UC10E-1
Uni-directional sound projector, 10W
10 / 5 / 2.5 W | ABS, metal grille | 86 dB SPL (1W, 1m) | 75 Hz to 20 kHz | EN54-24
Bosch LP1-UC10E-1 Product Highlights
Explore the key capabilities of the Bosch LP1-UC10E-1 sound projector.
Superb Speech and Music
75 Hz to 20 kHz, 86 dB at 1 W, up to 96 dB.
EN54-24 Voice Alarm
Ceramic terminal, thermal fuse and heat-resistant wiring keep the line up.
IP65 Indoor and Outdoor
Water and dust protected to IP65.
Easy Mounting Plate
Hang it on the safety cord, then fix it to the plate; wall or ceiling.
Wide Coverage
Opening angle 220° / 65° at 1 / 4 kHz.
Supervision Ready
Pre-wired for an optional supervision board.
Key specs
- Taps 10 / 5 / 2.5 W (100 V)
- 96 / 86 dB SPL at 10 W / 1 W (1 kHz, 1 m)
- 75 Hz to 20 kHz (-10 dB)
- Opening angle 220° / 65° (1 / 4 kHz)
- Ø 185 x 300 mm, 3 kg
- ABS UL 94 V0, metal grilles
- Ceramic terminal, thermal fuse
- Pre-wired for a supervision board
- IP65
- White RAL 9010
- EN54-24, BS 5839-8
|
Electrical |
|
|
Rated power |
10 / 5 / 2.5 W |
|
Sound pressure level at 10 W / 1 W (1kHz, 1 m) |
96 dB / 86 dB (SPL) |
|
Sound pressure level at 10 W /1 W (1kHz, 4 m) |
88 dB / 78 dB (SPL) |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
220° / 65° |
|
Effective frequency range (-10 dB) |
75 Hz to 20 kHz |
|
Rated voltage Rated impedance |
100 V |
|
10 W: 1000 Ohm |
|
|
5 W: 2000 Ohm |
|
|
2.5 W: 4000 Ohm |
|
|
1.25 W: 4000 Ohm |
|
|
Connector |
3-pole screw terminal |
|
Mechanical |
|
|
Dimensions (D x L) |
185 x 300 mm (7.3 x 11.8 in.) |
|
Weight |
3 kg (6.6 lb) |
|
Color |
White (RAL 9010) |
|
Material |
ABS |
|
Environmental |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
