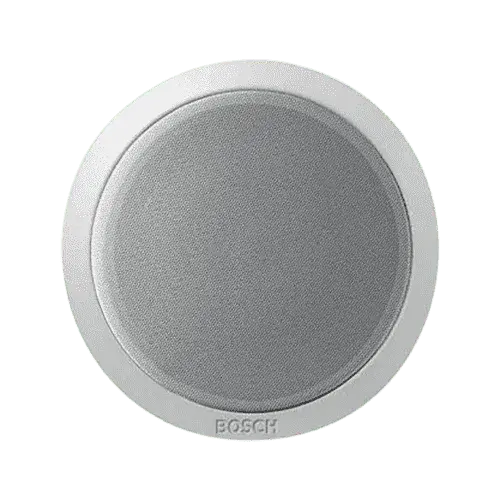

LHM0606/10
Metal ceiling loudspeaker with clamps, 6W
6 / 3 / 1.5 W | Metal grille | 86 dB SPL (1W, 1m) | 80 Hz to 18 kHz | Non-EN54
LHM0606/10
Metal ceiling loudspeaker with clamps, 6W
6 / 3 / 1.5 W | Metal grille | 86 dB SPL (1W, 1m) | 80 Hz to 18 kHz | Non-EN54
Bosch LHM0606/10 Product Highlights
Explore the key capabilities of the Bosch LHM0606/10 ceiling loudspeaker.
Metal Grille
A circular metal grille, unobtrusive in virtually all interiors.
Speech and Music
86 dB SPL at 1 W, 1 m; 80 Hz to 18 kHz for speech and music reproduction.
Wide Coverage
Opening angle 175° / 55° at 1 kHz / 4 kHz.
Spring Clamps
Two spring-loaded clamps, 165 mm cut-out, template included.
Optional Fire Dome
Add the LBC3080/01 steel fire dome to keep fire out of the ceiling cavity.
Everyday Spaces
Made for shops, schools, offices, sports halls, hotels and restaurants.
Key specs
- Taps 6 / 3 / 1.5 W (100 V), max 9 W
- 94 / 86 dB SPL at 6 W / 1 W (1 kHz, 1 m)
- 80 Hz to 18 kHz
- Opening angle 175° / 55°
- 165 mm cut-out, 2 spring clamps
- Ø 199 mm, depth 70.5 mm, 620 g
- Metal grille, 6-inch dual cone
- Flying leads
- RAL 9010 white
- Optional fire dome LBC3080/01
- Not EN54-24
|
Color |
White; Customized colors |
|
Coverage angle HxV (-6 dB, 1 kHz) (°) |
175 x 175 ° |
|
Coverage angle HxV (-6 dB, 4 kHz) (°) |
55 x 55 ° |
|
Frequency range (-10 dB) (Hz) |
80 – 18000 Hz |
|
Operating relative humidity, non-condensing (%) |
0 – 95 % |
|
Operating temperature (°C) |
-25 – 55 °C |
|
Rated input voltage (V) |
100 V |
|
Rated power (W) |
6 W |
|
Storage temperature (°C) |
-40 – 70 °C |
