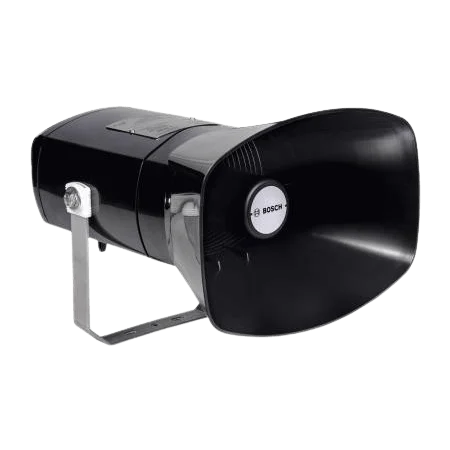

A flameproof 25 W horn loudspeaker with a long flare, designed and certified for areas with explosive gas-air mixtures: IECEx, ATEX, US, CSA and CCC. Sturdy, light anti-static polyamide, a 316 stainless steel bracket with ratchet, IP66/67. The long flare gives a higher SPL for longer distances. Scroll down for details.

See full specs and details Have a question? 5 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Ex-proof Horn Loudspeaker

LH3-UC25XL

Flameproof horn loudspeaker, long flare, 25W

25 / 15 / 6.5 / 5 / 2.5 / 1.5 W | Anti-static polyamide | 109 dB SPL (1W, 1m) | 380 Hz to 7 kHz | IECEx / ATEX

Bosch LH3-UC25XL Product Highlights

Explore the key capabilities of the Bosch LH3-UC25XL horn loudspeaker.

Hazardous Areas

Certified for gas Zone 1 and dust Zone 21: IECEx, ATEX, US, CSA, CCC.

Anti-Static Polyamide

A sturdy, lightweight anti-static horn, IP66/67.

Long Flare

109 dB at 1 W, up to 122 dB, opening angle 100° / 30°.

Stainless Bracket

316 stainless steel bracket with a ratchet that holds the aim.

Supervision Ready

A wire loop for an optional supervision board; loop-through entry.

-50 °C to +60 °C

Works from -50 °C to +60 °C; six power taps on 100 V.

Key specs

  • Taps 25 / 15 / 6.5 / 5 / 2.5 / 1.5 W (100 V)
  • 122 / 109 dB SPL at 25 W / 1 W (1 kHz, 1 m)
  • 380 Hz to 7 kHz
  • Opening angle 100° / 30° (1 / 4 kHz)
  • 200 x 270 x 348 mm, 2.72 kg
  • Anti-static polyamide horn
  • 316 stainless steel bracket, ratchet
  • M20 Ex cable gland, loop-through hole
  • IP66/67, -50 °C to +60 °C
  • Black RAL 9005
  • IECEx / ATEX II 2G Ex db eb mb IIB+H2 T4 Gb, II 2D Ex tb IIIC T105 °C Db
Chat on WhatsApp

Technical specifications

Electrical

Rated power (PHC)

25 W

Rated power

25 / 15 / 6.5 / 5 / 2.5 / 1.5 W

Sound pressure level at rated power / 1 W (1 kHz, 1 m)

122 dB / 109 dB

Opening angle at 1 kHz/ 4 kHz (- 6 dB)

100 / 30 degrees

Effective frequency range (-10 dB)

380 Hz to 7000 Hz

Rated voltage

100 V

Rated impedance

400 ohm

Electrical connection

2 x 6 pole push terminal

Acceptable wire gauge

0.5 mm - 2.5 mm2 (AWG 20-12)

Mechanical

Material horn

Polyamide (PA)

Material bracket

Stainless Steel (Grade 316)

Dimensions (H x W x D)

200 x 270 x 348 mm

(7.87 x 10.62 x 13.70 in)

Weight

2.72 kg (5.99 lb)

Color

Black (RAL 9005)

Cable gland (standard supplied)

M20 Polyamide (PA)

Cable diameter

11 mm to 14 mm (0.43 in to 0.55 in)

Environmental

Operating temperature

-50 ºC to +60 ºC (-58 ºF to +140 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
