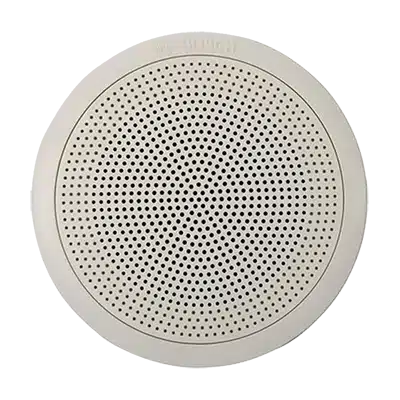

A cost-effective 6 W ceiling loudspeaker for voice alarm: EN54-24 and BS 5839-8 when fitted with the LC3-CBB back box. Ceramic screw terminal, thermal fuse and heat-resistant wiring keep the line working in a fire. Self-extinguishing ABS, spring arms, 167 mm cut-out. Scroll down for details.

See full specs and details Have a question? 6 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Entry Level Ceiling Series

LC3-UC06E

EN54-24 ceiling loudspeaker, 6W

6 / 3 / 1.5 / 0.75 W | ABS frame and grille | 86 dB SPL (1W, 1m) | 90 Hz to 20 kHz | EN54-24 with LC3-CBB

Bosch LC3-UC06E Product Highlights

Explore the key capabilities of the Bosch LC3-UC06E ceiling loudspeaker.

EN54-24 with Back Box

Certified EN54-24 and BS 5839-8 when installed with the LC3-CBB back box.

Line Stays Up in a Fire

Ceramic terminal, thermal fuse and heat-resistant wiring protect the loudspeaker line.

Speech and Music

86 dB SPL at 1 W, 1 m; 90 Hz to 20 kHz for speech and music reproduction.

Wide Coverage

Opening angle 180° / 85° at 1 kHz / 4 kHz.

Four Power Taps

6, 3, 1.5 and 0.75 W on 100 V, in 3 dB steps.

Spring Arms

Light ABS with integral spring arms, 167 mm cut-out, template included.

Key specs

  • Taps 6 / 3 / 1.5 / 0.75 W (100 V), max 9 W
  • 94 / 86 dB SPL at 6 W / 1 W (1 kHz, 1 m)
  • 90 Hz to 20 kHz
  • Opening angle 180° / 85°
  • 167 mm cut-out, ceilings 5 to 25 mm
  • Ø 180 mm, depth 63 mm, 538 g
  • ABS frame and grille, UL 94 V0
  • 3-pole ceramic screw terminal, thermal fuse
  • RAL 9010 white
  • EN54-24 and BS 5839-8 with LC3-CBB
Chat on WhatsApp

Electrical

Rated power

6 W (6/3/1.5/0.75 W)

Sound pressure level

at 6 W / 1 W (1 kHz, 1 m)

94 dB / 86 dB (SPL)

Sound pressure level

at 6 W / 1 W (1 kHz, 4 m)

85 dB / 78 dB (SPL)

Effective frequency range (-10 dB)

90 Hz to 20 kHz

Opening angle at 1 kHz/4 kHz (-6 dB)

180° / 85°

Rated voltage

100 V

Rated impedance

1667 ohm at 6 W
3333 Ohm at 3 W
6667 Ohm at 1.5 W
13333 Ohm at 0.75 W

Electrical Connection

3‑pole ceramic screw terminal block

Acceptable wire gauge

0.5 - 3 mm2

Mechanical

Diameter

180 mm (7.08 in)

Mounting cut-out

167 mm (6.57 in)

Max. ceiling thickness

5 to 25 mm (0.19 to 0.98 in)

Maximum depth

63 mm (2.32 in)

Material (frame, front grille)

ABS

Weight

538 g (1.19 lb)

Color

White (RAL 9010)

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
