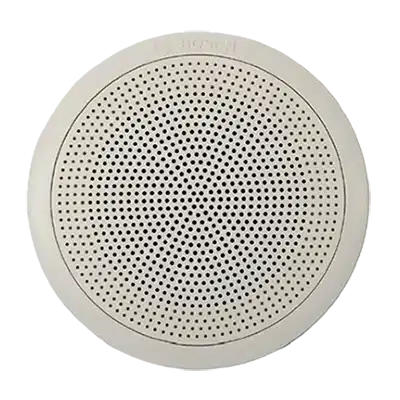

LC3-UC06
Ceiling loudspeaker, 6W
6 / 3 / 1.5 W | ABS frame and grille | 86 dB SPL (1W, 1m) | 90 Hz to 20 kHz | Non-EN54
LC3-UC06
Ceiling loudspeaker, 6W
6 / 3 / 1.5 W | ABS frame and grille | 86 dB SPL (1W, 1m) | 90 Hz to 20 kHz | Non-EN54
Bosch LC3-UC06 Product Highlights
Explore the key capabilities of the Bosch LC3-UC06 ceiling loudspeaker.
Cost-Effective
A general-purpose 6 W ceiling loudspeaker that keeps project costs down.
Speech and Music
86 dB SPL at 1 W, 1 m; 90 Hz to 20 kHz for speech and music reproduction.
Wide Coverage
Opening angle 180° / 85° at 1 kHz / 4 kHz.
Light ABS
Frame and grille in self-extinguishing ABS (UL 94 V0), 475 g.
Spring Arms
Integral spring arms hold it in a 167 mm cut-out; template included.
Optional Back Box
The LC3-CBB keeps out dust and vermin and stops sound passing through the ceiling.
Key specs
- Taps 6 / 3 / 1.5 W (100 V), max 9 W
- 94 / 86 dB SPL at 6 W / 1 W (1 kHz, 1 m)
- 90 Hz to 20 kHz
- Opening angle 180° / 85°
- 167 mm cut-out, ceilings 5 to 25 mm
- Ø 180 mm, depth 59 mm, 475 g
- ABS frame and grille, UL 94 V0
- Flying leads
- RAL 9010 white
- Not EN54-24
Electrical | |
Maximum power | 9 W |
Rated power | 6 W (6/3/1.5 W) |
Sound pressure level at 6 W / 1 W (1 kHz, 1 m) | 94 dB / 86 dB (SPL) |
Sound pressure level at 6 W / 1 W (4 kHz, 1 m) | 103 dB / 95 dB (SPL) |
Effective frequency range (-10 dB) | 90 Hz to 20 kHz |
Opening angle at 1 kHz/4 kHz (-6 dB) | 180° / 85° |
Rated voltage | 100 V |
Rated impedance | 1667 ohm |
Electrical Connection | Flying leads: Length is 150 mm (5.90 in) |
Mechanical | |
Diameter | 180 mm (7.08 in) |
Mounting cut-out | 167 mm (6.57 in) |
Max. ceiling thickness | 5 to 25 mm (0.19 to 0.98 in) |
Maximum depth | 59 mm (2.32 in) |
Material (frame, front grille) | ABS |
Weight | 475 g (1.04 lb) |
Color | White (RAL 9010) |
Environmental | |
Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
Relative humidity | <95% |
