An XLA line array with an extended listening area: natural sound spread evenly through the room, excellent speech intelligibility, for large, reverberant halls: congress venues, meeting halls, places of worship. Only 8 cm wide, aluminium, EN54-24 certified, swivel wall bracket included. Scroll down for details.

See full specs and details Have a question? 4 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Column & Line Array

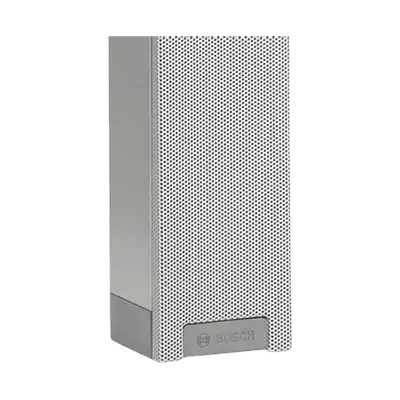

LBC3201/00

XLA line array loudspeaker, 60W

60 / 30 / 15 W | Aluminium enclosure | 91 dB SPL (1W, 1m) | 190 Hz to 18 kHz | EN54-24

Bosch LBC3201/00 Product Highlights

Explore the key capabilities of the Bosch LBC3201/00 line array loudspeaker.

Extended Listening Area

Sound reaches the whole room evenly, near and far.

No Narrow Beaming

Still 132° x 22° at 4 kHz: wide and controlled.

Built for Reverberant Halls

Made for large, reverberant halls.

Only 8 cm Wide

A slim aluminium column that blends into walls and pillars.

EN54-24

Certified for voice alarm, ceramic terminal with thermal fuse.

Swivel Bracket

Wall bracket adjustable in two planes; loop-through wiring.

Key specs

  • Taps 60 / 30 / 15 W (100 V), max 90 W
  • 91 dB at 1 W, 108 dB at rated power (1 kHz octave, 1 m)
  • 190 Hz to 18 kHz (-10 dB)
  • Coverage 132° x 22° at 4 kHz
  • 1,200 x 80 x 90 mm, 6.4 kg
  • Aluminium extruded enclosure
  • Ceramic loop-through terminal, thermal fuse
  • IP21C, indoor
  • Pearl light grey RAL 9022
  • EN54-24, BS 5839-8
Chat on WhatsApp

Electrical

Rated power

60 / 30 / 15 W

Sound pressure level at 60 W / 1 W (1 kHz, 1 m)

110 dB / 92 dB (SPL)

Sound pressure level at 60 W / 1 W (1 kHz, 4 m)

92 dB / 76 dB (SPL)

Effective frequency range (- 10 dB)

190 Hz to 18 kHz

Opening angle at 1 kHz / 4 kHz (‑6 dB)

Horizontal

210° / 132°

Vertical

50° / 22°

Rated input voltage

Rated impedance



100V

60 W

167 Ohm

30 W

333 Ohm

15 W

667 Ohm

Connector

 Screw terminal block

* Technical performance data acc. to IEC 60268‑5

Mechanical

Dimensions (H x W x D)

1200 x 80 x 90 mm

(47.24 x 3.15 x 3.54 in)

Weight

6,4 kg (14,1 lb)

Color

Light grey (RAL 9022)

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage and transport temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
