An XLA line array with an extended listening area: natural sound spread evenly through the room, excellent speech intelligibility, for small and medium rooms: congress venues, meeting rooms, showrooms, canteens. Only 8 cm wide, aluminium, EN54-24 certified, swivel wall bracket included. Scroll down for details.

See full specs and details Have a question? 4 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Column & Line Array

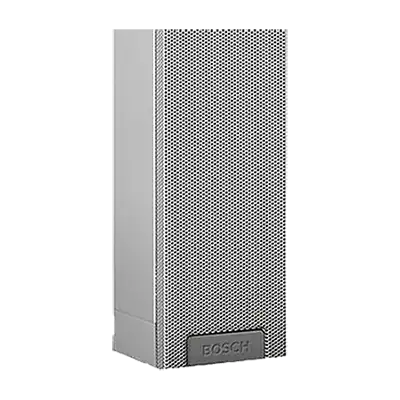

LBC3200/00

XLA line array loudspeaker, 30W

30 / 15 / 7.5 W | Aluminium enclosure | 91 dB SPL (1W, 1m) | 190 Hz to 18 kHz | EN54-24

Bosch LBC3200/00 Product Highlights

Explore the key capabilities of the Bosch LBC3200/00 line array loudspeaker.

Extended Listening Area

Sound reaches the whole room evenly, near and far.

No Narrow Beaming

Still 130° x 18° at 4 kHz: wide and controlled.

Meeting Rooms to Halls

Made for small and medium rooms.

Only 8 cm Wide

A slim aluminium column that blends into walls and pillars.

EN54-24

Certified for voice alarm, ceramic terminal with thermal fuse.

Swivel Bracket

Wall bracket adjustable in two planes; loop-through wiring.

Key specs

  • Taps 30 / 15 / 7.5 W (100 V), max 45 W
  • 91 dB at 1 W, 106 dB at rated power (1 kHz octave, 1 m)
  • 190 Hz to 18 kHz (-10 dB)
  • Coverage 130° x 18° at 4 kHz
  • 600 x 80 x 90 mm, 3 kg
  • Aluminium extruded enclosure
  • Ceramic loop-through terminal, thermal fuse
  • IP21C, indoor
  • Pearl light grey RAL 9022
  • EN54-24, BS 5839-8
Chat on WhatsApp

Electrical

Maximum power

45 W

Rated power

30 / 15 / 7.5 W

Sound pressure level

at 30 W / 1 W (1 kHz, 1 m)

106 / 91 dB (SPL)

Sound pressure level

at 30 W / 1 W (2 kHz, 1 m)

108 / 93 dB (SPL)

Effective frequency range (-10 dB)

190 Hz to 18 kHz

Opening angle

1 kHz / 4 kHz (-6 dB)

Horizontal

Vertical

220° / 130°

70° / 18°

Rated input voltage

100 V

Rated impedance

333 ohm

Connector

Screw terminal block

Mechanical

Dimensions (H x W x D)

600 x 80 x 90 mm (23.62 x 3.15 x 3.54 in)

Weight

3 kg (6.6 lb)

Color

Light gray (matches RAL 9022)

Environmental

Operating temperature

-25 ºC to +55ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
