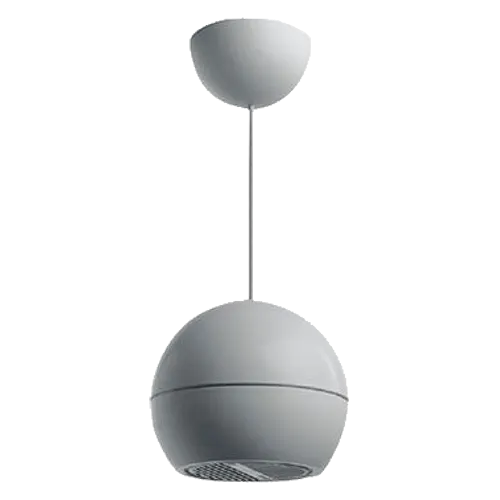

A 10 W pendant sphere that hangs from its own cable, for speech and music in high-ceiling buildings, hypermarkets, superstores and swimming pools. Splash-waterproof ABS, 5 m cable you can shorten, cable clamp and ceiling cover supplied. Scroll down for details.

See full specs and details Have a question? 4 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Sound Projector & Pendant

LBC3095/15

Pendant sphere loudspeaker, 10W

10 / 5 / 2.5 W | ABS sphere | 89 dB SPL (1W, 1m) | 130 Hz to 20 kHz | Non-EN54

Bosch LBC3095/15 Product Highlights

Explore the key capabilities of the Bosch LBC3095/15 pendant loudspeaker.

All-Round Sound

Opening angle 180° / 90°, 130 Hz to 20 kHz.

Hangs from Its Cable

A 5 m cable, easy to shorten, with clamp and ceiling cover.

High Ceilings

Hypermarkets, superstores, halls with high ceilings.

Splash-Waterproof

IPx3, suits swimming pools and humid areas.

Robust ABS

High-impact, self-extinguishing ABS (UL 94 V0).

Simple Power Setting

10, 5 or 2.5 W via the colour-coded cable.

Key specs

  • Taps 10 / 5 / 2.5 W (100 V), max 15 W
  • 99 / 89 dB SPL at 10 W / 1 W (1 kHz, 1 m)
  • 130 Hz to 20 kHz (-10 dB)
  • Opening angle 180° / 90° (1 / 4 kHz)
  • Ø 185 x 157 mm, 2.5 kg
  • ABS UL 94 V0
  • Fixed 5 m 4-wire cable, clamp, ceiling cover
  • IPx3
  • Off-white
  • Not EN54-24
  • Not for windy locations
Chat on WhatsApp

Electrical

Maximum power

15 W

Rated power

10 / 5 / 2.5 W

Sound pressure level at 10 W / 1 W (1kHz, 1 m)

99 dB / 89 dB (SPL)

Opening angle at 1 kHz / 4 kHz (-6 dB)

180° / 90°

Effective frequency range (-10 dB)

130 Hz to 20 kHz

Rated voltage

100 V

Rated impedance

1000 ohm

Connection

5 m 4-wire cable

Mechanical

Dimensions (D x L)

185 x 157 mm (7.3 x 6.2 in)

Weight

2.5 kg (5.5 lb)

Color

White (RAL 9010)

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
