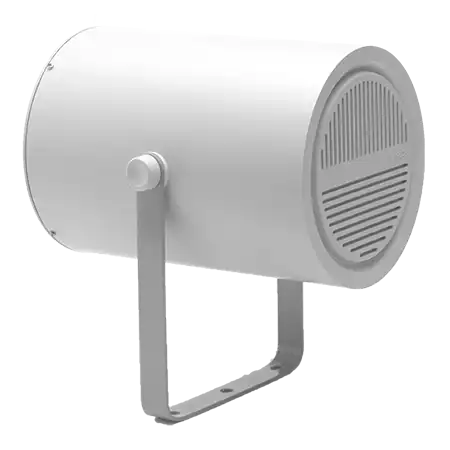

LBC3094/15
Sound projector loudspeaker, 10W
10 / 5 / 2.5 W | ABS, IP63 | 94 dB SPL (1W, 1m) | 140 Hz to 10 kHz | Non-EN54
LBC3094/15
Sound projector loudspeaker, 10W
10 / 5 / 2.5 W | ABS, IP63 | 94 dB SPL (1W, 1m) | 140 Hz to 10 kHz | Non-EN54
Bosch LBC3094/15 Product Highlights
Explore the key capabilities of the Bosch LBC3094/15 sound projector.
Directed Sound
94 dB at 1 W and up to 104 dB, aimed where people are.
Splash-Waterproof
IP63: outdoors and in high humidity.
Malls to Sports Fields
Shopping centres, factory grounds, sports fields, exhibitions.
Robust ABS
High-impact, self-extinguishing ABS (UL 94 V0).
Wall or Ceiling
Steel bracket painted white, for walls or ceilings.
Simple Power Setting
10, 5 or 2.5 W via the colour-coded 2 m cable.
Key specs
- Taps 10 / 5 / 2.5 W (100 V), max 15 W
- 104 / 94 dB SPL at 10 W / 1 W (1 kHz, 1 m)
- 140 Hz to 10 kHz (-10 dB)
- Opening angle 152° / 60° (1 / 4 kHz)
- Ø 177 x 268 mm, 2.2 kg
- ABS UL 94 V0, steel bracket
- Fixed 2 m 4-core cable
- IP63
- White RAL 9010
- Not EN54-24
|
Electrical |
|
|
Maximum power |
15 W |
|
Rated power |
10 / 5 / 2.5 W |
|
Sound pressure level at 10 W / 1 W (1 kHz, 1 m) |
102 dB / 92 dB (SPL) |
|
Effective frequency range (-10 dB) |
140 Hz to13 kHz |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
160° / 70° |
|
Rated voltage |
100 V |
|
Rated impedance |
1000 ohm |
|
Connection |
2 m 4-wire cable |
|
Mechanical |
|
|
Dimensions (D x L) |
175 x 268 mm (6.9 x 10.5 in) |
|
Weight |
2.5 kg (7.3 lb) |
|
Color |
White (RAL 9010) |
|
Environmental |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
