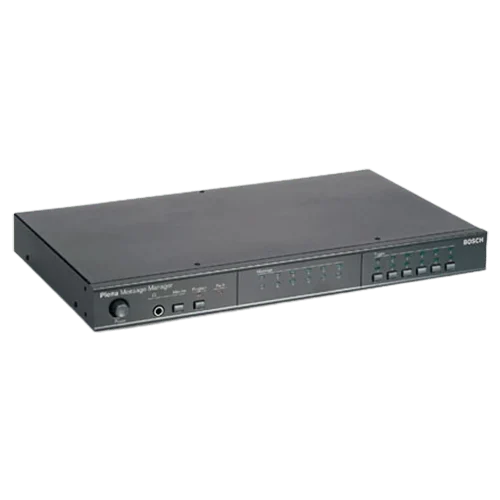

Technical specifications |
||
|
Electrical |
||
|
Mains power supply |
||
|
Voltage |
230/115 VAC, ±10%, 50/60 Hz |
|
|
Inrush current |
1.5 A at 230 VAC / 3 A at 115 VAC |
|
|
Max power consumption |
50 VA |
|
|
Battery power supply |
||
|
Voltage |
24 VDC, +15% / -15% |
|
|
Current max |
1 A |
|
|
Performance |
||
|
Supported sample rates (fs) |
24 / 22.05 / 16 / 12 / 11.025 / 8 kHz |
|
|
Frequency response |
||
|
@ fs=24kHz @ fs=22.05kHz |
100 Hz to 11 kHz (+1 / -3 dB) 100 Hz to 10 kHz (+1 / -3 dB) |
|
|
@ fs=16kHz |
100 Hz to 7.3 kHz (+1 / -3 dB) |
|
|
@ fs=12kHz |
100 Hz to 5.5 kHz (+1 / -3 dB) |
|
|
@ fs=11.025kHz |
100 Hz to 5 kHz (+1 / -3 dB) |
|
|
@ fs=8kHz |
100 Hz to 3.6 kHz (+1 / -3 dB) |
|
|
Distortion |
<0.1% at 1 kHz |
|
|
S/N (flat at max volume) |
>80 dB |
|
|
Supervision DAC |
1 Hz pilot tone |
|
|
Line input |
1 x |
|
|
Connector |
3-pin XLR, balanced |
|
|
Sensitivity |
1 V |
|
|
Impedance |
20 kohm |
|
|
CMRR |
>25 dB (50 Hz-to 20 kHz) |
|
|
Line input |
1 x |
|
|
Connector |
Cinch, unbalanced |
|
|
Sensitivity |
1 V |
|
|
Impedance |
20 kohm |
|
|
Trigger input |
6 x |
|
|
Connector |
Screw |
|
|
Activation |
Contact closure |
|
|
Supervision method |
Cable loop resistance check |
|
|
Line output |
1 x |
|
|
Connector |
3-pin XLR, balanced |
|
|
Nominal level |
1 V, adjustable |
|
|
Impedance |
<100 ohm |
|
|
Line output |
1 x |
|
|
Connector |
Cinch, unbalanced |
|
|
Nominal level |
1 V, adjustable |
|
|
Impedance |
<100 ohm |
|
|
Message active output |
1 x |
|
|
Connector |
Screw |
|
|
Relay |
100 V, 2 A (voltage free, SPDT) |
|
|
Fault output |
1 x |
|
|
Connector |
Screw |
|
|
Relay |
100 V, 2 A (voltage free, SPDT) |
|
|
Interconnection |
1 x |
|
|
Connector |
9-pin D-sub (RS-232) |
|
|
PC protocol |
115 kb/s, N, 8, 1, 0 (upload) |
|
|
LBB 1925/10 protocol |
19.2 kb/s, N, 8, 1, 0 (zone control) |
|
|
Messages |
||
|
Data format |
WAV-file, 16-bit PCM, mono |
|
|
Memory capacity |
64 Mb EEPROM |
|
|
Recording/playback time |
500 s @ fs=8 kHz 167 s @ fs=24 kHz |
|
|
Number of messages |
12 (maximum) |
|
|
Data retention time |
>10 years |
|
|
Mechanical |
||
|
Dimensions (H x W x D) |
56 x 430 x 270 mm 2.20 x 16.92 x 10.62 inch (19" wide, 1U high, with feet) |
|
|
Weight |
Approx. 3 kg |
|
|
Mounting |
Stand‑alone, 19” rack |
|
|
Color |
Charcoal |
|
|
Environmental |
||
|
Operating temperature |
-10 ºC to +55 ºC (14 ºF to +131 ºF) |
|
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
|
Relative humidity |
<95% |
|
