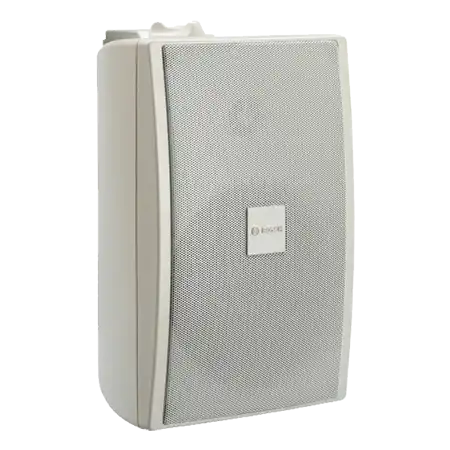

LB2-UC30-L1
Premium-sound cabinet loudspeaker, white, 30W
30 / 15 / 7.5 / 3.75 W | ABS, aluminium grille | 90 dB SPL (1W, 1m) | 100 Hz to 19 kHz | Non-EN54
LB2-UC30-L1
Premium-sound cabinet loudspeaker, white, 30W
30 / 15 / 7.5 / 3.75 W | ABS, aluminium grille | 90 dB SPL (1W, 1m) | 100 Hz to 19 kHz | Non-EN54
Bosch LB2-UC30-L1 Product Highlights
Explore the key capabilities of the Bosch LB2-UC30-L1 cabinet loudspeaker.
Premium Two-Way Sound
5-inch woofer, 13 mm dome tweeter: 90 dB at 1 W, up to 105 dB.
IP65, Pool and Coast
IP65, resistant to chlorine, corrosion and salt mist.
8 Ohm, 70 V or 100 V
A switch on the back selects the input and taps 30 / 15 / 7.5 / 3.75 W.
Anti-Theft Bracket
Adjustable U-bracket with torx screws under matching covers.
Mount Any Way
Horizontal or vertical; the logo rotates to match.
Bars to Boardrooms
Theme bars, restaurants, retail, offices, showrooms and fitness centres.
LB2-UC30-L1
The LB2-UC30-L1 Premium‑sound cabinet loudspeakers have a woofer and built-in dome tweeter and are intended for clear reproduction of speech, foreground, and BGM to be used in general indoor and outdoor applications.
Features
High-fidelity music and speech reproduction, Selectable 8 ohm, 15.5 V, 70 V and 100 V inputs, Compact robust ABS enclosure, Water and dust protected IP65.
Certification
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards.
Key specs
- Taps 30 / 15 / 7.5 / 3.75 W (70 / 100 V), 8 ohm
- Max 45.0 W
- 105 / 90 dB SPL at rated / 1 W (1 kHz, 1 m)
- 100 Hz to 19 kHz (-10 dB)
- Opening angle 166° / 83° H, 140° / 76° V (1 / 4 kHz)
- 5-inch woofer, 13 mm dome tweeter
- 250 x 160 x 140 mm, 2.4 kg
- ABS enclosure, aluminium grille
- Fixed 2 m two-core cable
- IP65; chlorine, corrosion and salt mist resistant
- White RAL 9010
- Not EN54-24
|
Electrical |
|
|
Maximum power |
45 W |
|
Rated power (PHC) |
30 W |
|
Power tapping |
30/15/7.5/3.75 W |
|
Sound pressure level at rated power / 1 W (1 kHz, 1 m) |
105/90 dB (SPL) |
|
Effective frequency range (-10 dB) |
100 Hz to 19 kHz |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
166° / 83° (hor.) 140° / 76° (ver.) |
|
Rated input voltage |
15.5/70/100 V |
|
Rated impedance |
8/163/333 ohm |
|
Transducers |
127 mm (5”) woofer, 13 mm (0.51 “) dome tweeter |
|
Connection |
2 m (78.8 in.) two‑wire cable |
|
Mechanical |
|
|
Dimensions (HxWxD) |
250x 60x140 mm 9.84x6.30x5.51 in |
|
Weight |
Approx. 2.4 kg (5.29 lb) |
|
Color |
White (RAL 9010) |
|
Environment |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
