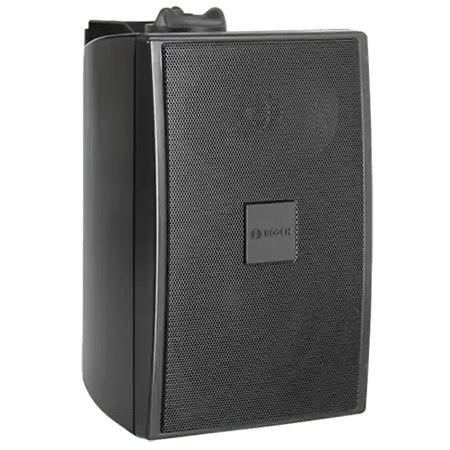

LB2-UC15-D1
Premium-sound cabinet loudspeaker, charcoal, 15W
15 / 7.5 / 3.75 / 1.9 W | ABS, aluminium grille | 87 dB SPL (1W, 1m) | 95 Hz to 20 kHz | Non-EN54
LB2-UC15-D1
Premium-sound cabinet loudspeaker, charcoal, 15W
15 / 7.5 / 3.75 / 1.9 W | ABS, aluminium grille | 87 dB SPL (1W, 1m) | 95 Hz to 20 kHz | Non-EN54
Bosch LB2-UC15-D1 Product Highlights
Explore the key capabilities of the Bosch LB2-UC15-D1 cabinet loudspeaker.
Premium Two-Way Sound
4-inch woofer, 13 mm dome tweeter: 87 dB at 1 W, up to 99 dB.
IP65, Pool and Coast
IP65, resistant to chlorine, corrosion and salt mist.
8 Ohm, 70 V or 100 V
A switch on the back selects the input and taps 15 / 7.5 / 3.75 / 1.9 W.
Anti-Theft Bracket
Adjustable U-bracket with torx screws under matching covers.
Mount Any Way
Horizontal or vertical; the logo rotates to match.
Bars to Boardrooms
Theme bars, restaurants, retail, offices, showrooms and fitness centres.
LB2-UC15-D1
The LB2-UC15-D1 Premium‑sound cabinet loudspeakers have a woofer and built-in dome tweeter are ideal for clear reproduction of speech, foreground and background music in general indoor and outdoor applications.
Features
High-fidelity music and speech reproduction, Selectable 8 ohm, 70 V and 100 V inputs, Compact robust ABS enclosure, Water and dust protected IP65
Certifications
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards.
Key specs
- Taps 15 / 7.5 / 3.75 / 1.9 W (70 / 100 V), 8 ohm
- Max 22.5 W
- 99 / 87 dB SPL at rated / 1 W (1 kHz, 1 m)
- 95 Hz to 20 kHz (-10 dB)
- Opening angle 184° / 112° H, 170° / 35° V (1 / 4 kHz)
- 4-inch woofer, 13 mm dome tweeter
- 205 x 136 x 117 mm, 1.9 kg
- ABS enclosure, aluminium grille
- Fixed 2 m two-core cable
- IP65; chlorine, corrosion and salt mist resistant
- Charcoal RAL 7021
- Not EN54-24
|
Electrical |
|
|
Maximum power |
22.5 W |
|
Rated power (PHC) |
15 W |
|
Power tapping |
15/7.5/3.75/1.9 W |
|
Sound pressure level at rated power / 1 W (1 kHz, 1 m) |
99/87 dB (SPL) |
|
Effective frequency range(-10dB) |
95 Hz to 20 kHz |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
184° / 112° (hor.) 170° / 35° (ver.) |
|
Rated input voltage |
11/70/100 V |
|
Rated impedance |
8/326/667 ohm |
|
Transducers |
101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter |
|
Connection |
2 m (78.8 in.) two‑wire cable |
|
Mechanical |
|
|
Dimensions (HxWxD) |
205 x 136 x 117 mm 8.07 x 5.35 x 4.60 in |
|
Weight |
Approx. 1.9 kg (4.18 lb) |
|
Color |
Charcoal (RAL 7021) (D) |
|
Environment |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
