EVID-S5.2TB (Pair)
5.25-INCH SURFACE-MOUNT SPEAKER PAIR
70/100 V AUDIO • 8 Ω BYPASS • IP54 PROTECTION
EVID-S5.2TB (Pair)
5.25-INCH SURFACE-MOUNT SPEAKER PAIR
70/100 V AUDIO • 8 Ω BYPASS • IP54 PROTECTION
Electro-Voice EVID-S5.2TB Product Highlights
Explore the key capabilities of the Electro-Voice EVID-S5.2TB surface speaker.
Two-Way Sound
5.25" + 0.75" two-way: 60 Hz to 20 kHz, up to 109 dB.
Coverage
90° x 90°, 90 dB at 1 W.
70 V / 100 V or 8 Ohm
Taps 30/15/7.5/3.7 W (70 V), 30/15/7.5 W (100 V), or 8 ohm.
Weather
IP54; the optional WC-58B cover raises the input area to IP65.
Quick Mounting
Bracket for wall or ceiling, adjustable 90° horizontal, 45° vertical.
Loop-Through
Two removable 4-pin Euroblocks: daisy-chain speakers on one line.
Simple Installation, Flexible System Setup
The Electro-Voice EVID-S5.2TB combines a preassembled mounting system with selectable transformer settings, helping installers configure the speaker for wall, ceiling and distributed-audio applications.
Wall or Ceiling Mounting
The supplied bracket supports wall or ceiling installation, with adjustment up to 90° horizontally and 45° vertically for directing sound toward the required listening area.
70 V / 100 V Configuration
Select 3.7 W, 7.5 W, 15 W or 30 W at 70 V, or 7.5 W, 15 W or 30 W at 100 V, according to the distributed-audio system design.
8-Ohm Bypass Operation
The rear selector also provides an 8 Ω bypass setting, allowing the speaker to work with compatible low-impedance amplification systems.
Professional Audio Across Diverse Venues
Electro-Voice sound systems support clear, reliable audio across performance spaces and large public venues. The appropriate loudspeaker solution depends on venue size, coverage requirements and system design.
Auditoriums & Venues
Professional audio systems support speech, presentations and live performances across auditoriums, theatres and multipurpose halls.
Stadiums & Sports Facilities
Purpose-designed sound systems help distribute announcements, event audio and safety messaging across seating areas and public zones.
Large-Capacity Venues
Large venues require carefully planned loudspeaker placement and coverage to deliver intelligible audio across stands, concourses and audience areas.
Key specs
- 5.25" + 0.75" + two-way
- Taps 30/15/7.5/3.7 W (70 V), 30/15/7.5 W (100 V), 8 ohm bypass
- 90 dB SPL at 1 W, 1 m; max 109 dB
- 60 Hz to 20 kHz (-10 dB)
- 90° x 90° coverage
- IP54 (IP65 input area with WC-58B cover)
- 3.2 kg each, 255 x 180 x 151 mm
- Two 4-pin Euroblocks for loop-through, up to 12 AWG
- Sold in pairs
- Recommended high-pass 60 Hz
Electro-Voice EVID-S5.2TB Technical Specifications
Explore the official technical specifications of the Electro-Voice EVID-S5.2TB surface-mount speaker pair, including acoustic performance, transformer settings, coverage, weather protection and physical dimensions.
| Specification | Details |
|---|---|
| Brand | Electro-Voice |
| Model | EVID-S5.2TB |
| Product Type | Two-way, full-range surface-mount speaker |
| Supplied Quantity | 2 speakers (pair) |
| Colour | Black (RAL 9004) |
| LF Driver | 5.25-inch (133 mm) |
| HF Driver | 0.75-inch (20 mm) |
| Frequency Response (−3 dB) | 85 Hz–20 kHz |
| Frequency Response (−10 dB) | 60 Hz–20 kHz |
| Sensitivity (1 W/1 m) | 90 dB |
| Maximum SPL (Calculated) | 109 dB; 115 dB peak |
| Coverage (Horizontal × Vertical) | 90° × 90° |
| Continuous Power Handling | 75 W (continuous pink noise, 100 hours) |
| Peak Power Handling | 300 W |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Recommended High-Pass Filter | 60 Hz, 24 dB/octave |
| Transformer Rating | 30 W |
| 70 V Transformer Taps | 3.7 W, 7.5 W, 15 W, 30 W |
| 100 V Transformer Taps | 7.5 W, 15 W, 30 W |
| Low-Impedance Operation | 8 Ω bypass |
| Weather Protection | IP54 (IEC 60529) |
| Dimensions (H × W × D) | 255 × 180 × 151 mm, without bracket |
| Net Weight | 3.2 kg per speaker, without bracket |
| Shipping Weight | 7.9 kg per pair |
| Included Hardware | Mounting bracket and 5 mm Allen wrench |
Know before you buy
Quick answers about the EVID-S5.2TB (Pair), and how it compares.
Where does the EVID-S5.2TB fit?
The mainstream choice for restaurants, shops and gyms, indoors or sheltered outdoors. For exposed or coastal sites, or EN 54 voice alarm, choose EVID-S5.2XB.
How is it powered?
Taps 30, 15, 7.5 and 3.7 W on 70 V, 30, 15 and 7.5 W on 100 V, or 8 ohm bypass.
Can it go outdoors?
Yes, sheltered: IP54. The optional WC-58B input cover raises the input area to IP65.
How is it installed, and what is in the box?
Each pair includes brackets and a 5 mm Allen wrench; mount on a wall or ceiling and aim it after mounting.
Which EVID surface speaker for my space?

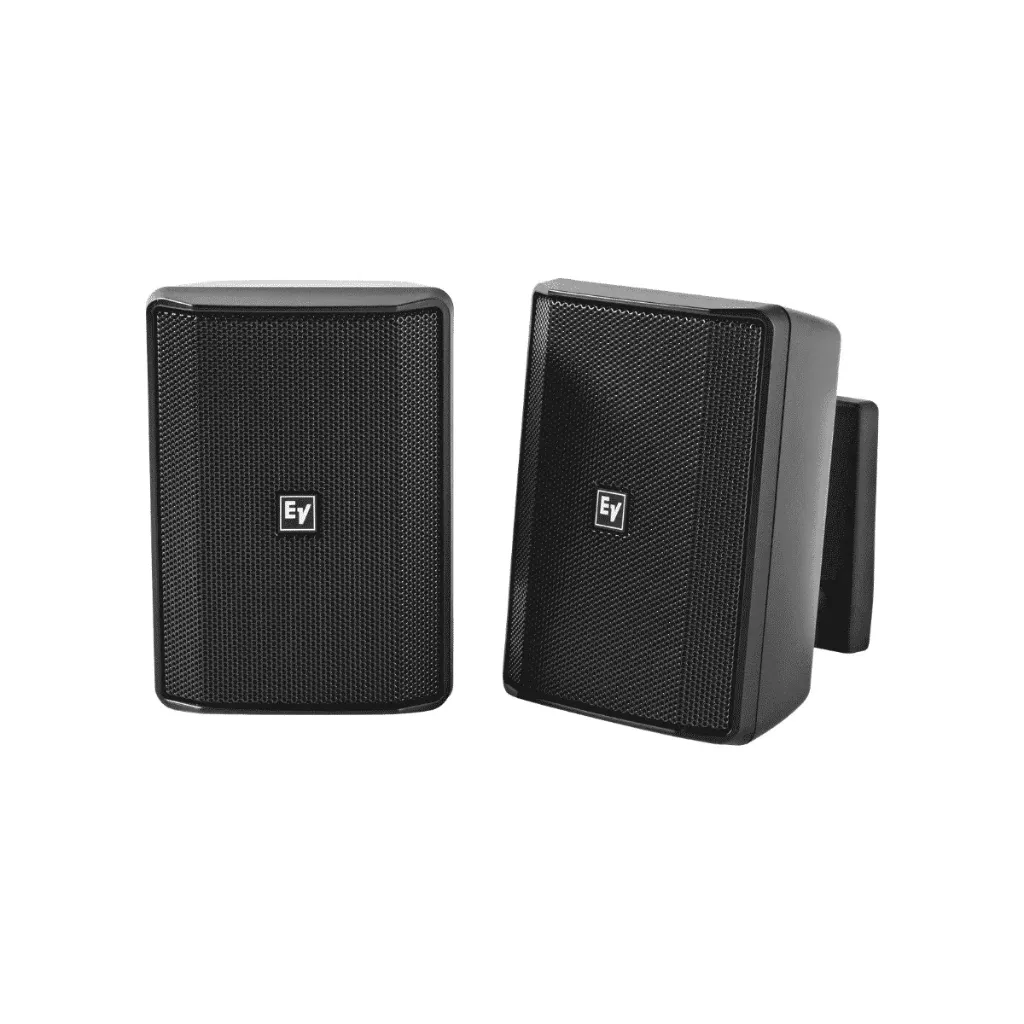

- Small rooms, patios, covered walkways: EVID-S4.2TB.
- Restaurants, shops, gyms: EVID-S5.2TB.

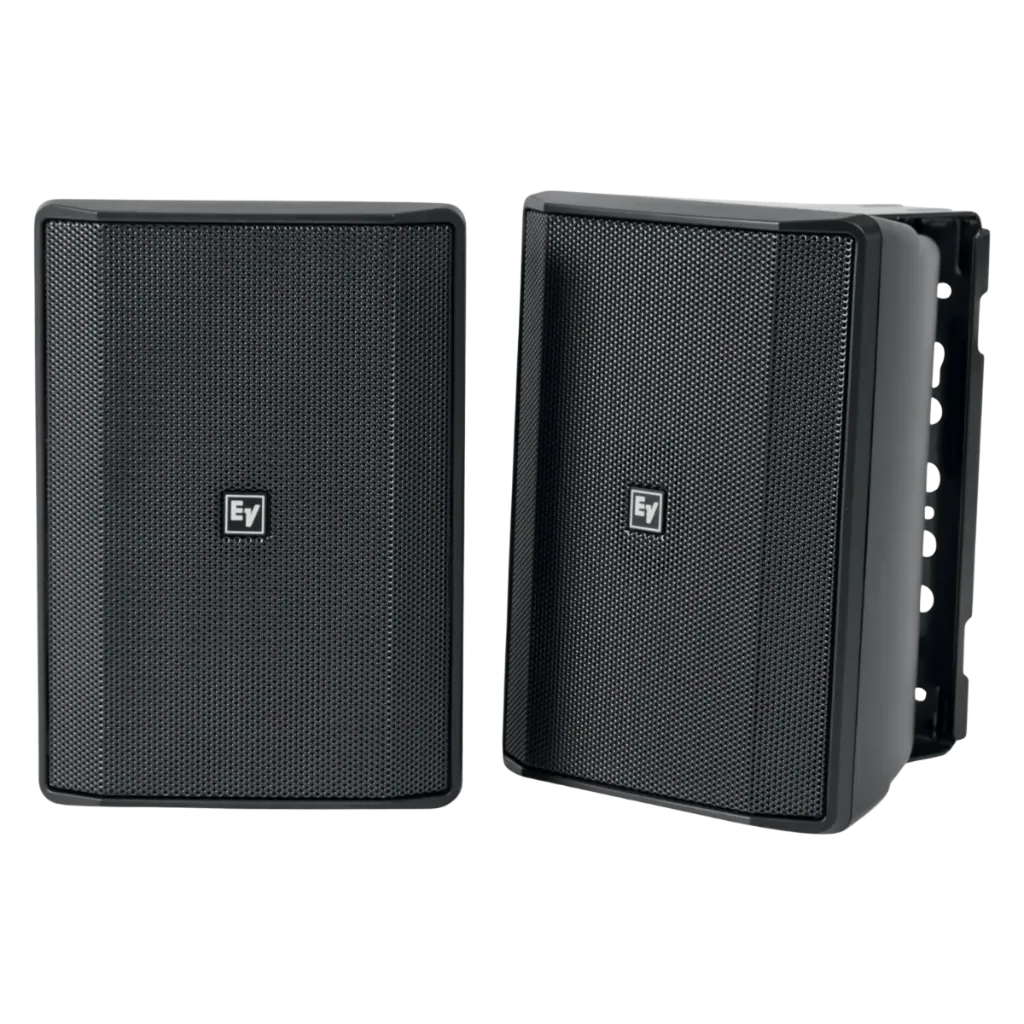

- Exposed outdoor, coastal sites or voice alarm (EN 54-24): EVID-S5.2XB.
- Lawns, plazas, marriage halls, bars, large outdoor areas: EVID-S8.2TB or EVID-S8.2TW (50 Hz, 110 dB).
- Azan from a minaret: use Bosch horn loudspeakers; they project speech much further than a cabinet speaker.
How do the EVID surface speakers compare?
| Model | Drivers | Max tap | 8 ohm | Sensitivity | Max SPL | Frequency range | Coverage | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-S4.2TB | 4" + 0.75" | 15 W | No | 86.5 dB | 98.5 dB | 75 Hz to 20 kHz | 110° x 110° | IP54 |
| EVID-S5.2TB | 5.25" + 0.75" | 30 W | Yes | 90 dB | 109 dB | 60 Hz to 20 kHz | 90° x 90° | IP54 |
| EVID-S5.2XB | 5.25" + 0.75" | 60 W | Yes | 89 dB | 108 dB | 55 Hz to 20 kHz | 90° x 90° | IP65, EN 54-24 |
| EVID-S8.2TB / EVID-S8.2TW | 8" + 1" | 60 W | Yes | 90 dB | 110 dB | 50 Hz to 20 kHz | 90° x 90° | IP54 |
Frequency range at -10 dB, max SPL continuous. B = black RAL 9004, W = white RAL 9003. Sold in pairs.
Who supplies Electro-Voice in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Electro-Voice across the UAE and support you after the sale. Prices are quoted per project: contact us and we will send a quote.
