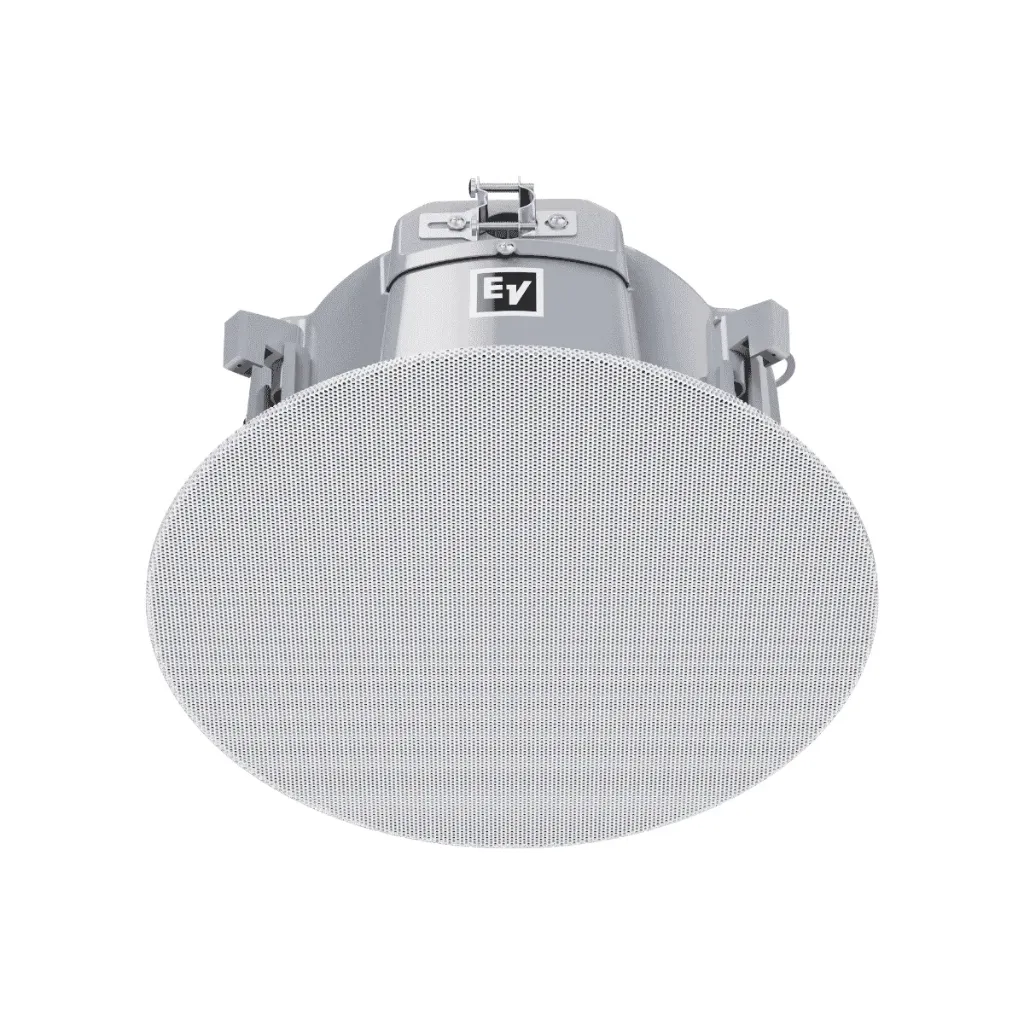

EVID-EC6.2
Coaxial ceiling speaker, 6.5-inch, 30 W
6.5" + 1" coaxial | 30 W max tap | 92 dB SPL (1W, 1m) | 80 Hz to 20 kHz | IP34
EVID-EC6.2
Coaxial ceiling speaker, 6.5-inch, 30 W
6.5" + 1" coaxial | 30 W max tap | 92 dB SPL (1W, 1m) | 80 Hz to 20 kHz | IP34
NEXT-GENERATION
EVID CEILING SPEAKERS
SUPERIOR CEILING SOUND, SIMPLIFIED
NEXT-GENERATION
EVID CEILING SPEAKERS
SUPERIOR CEILING SOUND, SIMPLIFIED
Electro-Voice EVID-EC6.2 Ceiling Speaker
The Electro-Voice EVID-EC6.2 is a complete 6.5-inch coaxial two-way loudspeaker engineered for excellent sound quality, outstanding reliability, and first-class aesthetics. Perfect for commercial audio installations, it delivers full-range sound while blending seamlessly into any ceiling.
Available in white finish (RAL 9003 Signal White), with customized colors available on request.
Electro-Voice EVID-EC6.2 Product Highlights
Explore the key capabilities of the Electro-Voice EVID-EC6.2 ceiling speaker.
Sound
6.5" + 1" coaxial: 80 Hz to 20 kHz, up to 110 dB.
Coverage
110° conical coverage, 92 dB at 1 W.
70 V, 100 V or 8 Ohm
Taps 30/15/7.5/3.75 W, plus 1.88 W on 70 V, switch on the front baffle.
Installation
Cutout 10.7 in (272 mm), 149 mm deep. Tile rail and C-ring.
Build
IP34, UL 2043 plenum rated, bezel-less magnetic grille.
System
Same cutout as EVID-C8.2-G2: upgrade without recutting.
Key specs
- 6.5" + 1" coaxial
- Taps 30/15/7.5/3.75 W, plus 1.88 W on 70 V (70 / 100 V), 8 ohm bypass
- 92 dB SPL at 1 W, 1 m; max 110 dB
- 80 Hz to 20 kHz (-10 dB)
- 110° conical coverage
- Cutout 10.7 in (272 mm), mounting depth 149 mm
- IP34, UL 2043 plenum rated
- 3.6 kg
- Sold in pairs
- Voice alarm version: EVID-EC6.2E (separate product)
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-EC6.2 Ceiling Speaker 6.5" 70/100V White |
| LF Transducer Size | 6.5 in |
| HF Transducer Size | 1 in |
| Frequency Range (-10 dB) | 80 Hz – 20,000 Hz |
| Coverage Angle (Conical) | 110° |
| Recommended High Pass | 70 Hz |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum SPL (Continuous) | 110 dB |
| Maximum SPL (Peak) | 116 dB |
| Sensitivity (1 W, 1 m) | 92 dB SPL (1 W, 1 m) |
| Power Handling (Continuous) | 60 W |
| Power Handling (Peak) | 240 W |
| Long Term Power Handling (Continuous) | 40 W |
| Long Term Power Handling (Peak) | 160 W |
| Nominal Impedance (Low Z) | 8 Ω |
| Transformer Taps – 70 V Line | 30 W; 15 W; 7.5 W; 3.75 W; 1.88 W |
| Transformer Taps – 100 V Line | 30 W; 15 W; 7.5 W; 3.75 W |
| Connector Type | 4-pin Euroblock – Input + Pass Through |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 mm² (maximum) |
Mechanical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Grille Material | Powder Coated Steel |
| Color | White; Customized Colors |
| Color (RAL) | RAL 9003 Signal White |
| Mounting Cutout | 10.70 in / 272 mm |
| Dimensions (Ø × D) | 11.9 in × 6.1 in / 302 mm × 153.8 mm |
| Mounting Depth | 5.9 in / 149 mm |
| Ceiling Thickness | 0.5 in – 1.5 in / 12.5 mm – 38 mm |
| Weight | 7.90 lb / 3.60 kg |
| Shipping Weight | 21.40 lb / 9.70 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP34 |
| Weatherization | Indoor |
| Operating Temperature | 32 °F – 122 °F / 0 °C – 50 °C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety Agency Ratings | UL 1480A |
| Air-Handling Spaces | Safe for use per UL 2043 |
| CSA Certification | CSA C22.2 No. 205 |
| IEC Standard | IEC 62368-1 |
Know before you buy
Quick answers about the EVID-EC6.2, and how it compares.
Where does the EVID-EC6.2 fit?
The music performer of the EC range: 92 dB sensitivity, 110 dB max, 110° coverage, for restaurants, retail, lobbies and Masjid prayer halls. For premium music, EVID-C8.2-G2. The voice alarm certified version is the EVID-EC6.2E (ask us).
How is it powered on a 70 V or 100 V line?
Taps 30, 15, 7.5 and 3.75 W, plus 1.88 W on 70 V, or 8 ohm, set by a switch on the front baffle.
How is it installed?
Cutout 10.7 in (272 mm), the same as the EVID-C8.2-G2; tile rail, C-ring and magnetic grille, ceilings 0.5 to 1.5 in thick, UL 2043 plenum rated.
What's in the box?
Each pair ships with 2 ceiling loudspeakers, 2 magnetic grilles, 4 ceiling tile rails, 2 C-rings, 4 screws, a cutout template, 2 paint covers and a quick installation guide.
Which EVID ceiling speaker for an office, school, restaurant or Masjid?
- Offices, meeting rooms, classrooms, corridors: EVID-EC4.2, 130° coverage for clear speech and background music.
- Small rooms and washrooms: EVID-EC3.1, IP45 and only 93 mm deep.
- Restaurants, shops and Masjid prayer halls, where music or the khutbah must be clear across a large floor: EVID-EC6.2.
- Premium music, higher ceilings: EVID-C8.2-G2, plus EVID-C8.1S-G2 for bass.
- Open or very high ceilings: the EVID-P6.2B pendant.
- Outdoor seating: EVID-S5.2TB or, fully exposed, EVID-S5.2XB.
How do I add bass to EVID ceiling speakers?
Add the EVID-C8.1S-G2 ceiling subwoofer (45 Hz to 380 Hz, 113 dB). Run it on its own amplifier channel with a low-pass, for example one channel of a V600:2 with its 150 Hz low-pass for the subwoofer and the other channel with the 100 Hz high-pass for the EVID-C8.2-G2 or EVID-EC6.2 satellites.
How do the EVID ceiling speakers compare?
| Model | Drivers | Max tap | Sensitivity | Max SPL | Frequency range | Coverage | Cutout | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-EC3.1 | 3" one-way | 15 W | 84 dB | 100 dB | 90 Hz to 19 kHz | 135° | 7.2 in (183 mm) | IP45 |
| EVID-EC4.2 | 4" + 0.75" coaxial | 20 W | 89 dB | 106 dB | 80 Hz to 20 kHz | 130° | 7.2 in (183 mm) | IP34 |
| EVID-EC6.2 | 6.5" + 1" coaxial | 30 W | 92 dB | 110 dB | 80 Hz to 20 kHz | 110° | 10.7 in (272 mm) | IP34 |
| EVID-C8.2-G2 | 8" + 1" coaxial | 60 W | 90 dB | 110 dB | 60 Hz to 20 kHz | 90° | 10.7 in (272 mm) | IP34 |
| EVID-C8.1S-G2 | 8" subwoofer | 60 W | 90 dB | 113 dB | 45 Hz to 380 Hz | 360° | 12.7 in (322 mm) | IP34 |
| EVID-P6.2B | 6.5" + 1" pendant | 30 W | 87 dB | - | 60 Hz to 20 kHz | 115° | Pendant | Protected outdoor |
Frequency range at -10 dB, max SPL continuous. Every model takes 70 V or 100 V taps or 8 ohm.
Who supplies Electro-Voice in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and is covered by the manufacturer warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Electro-Voice across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
