EVID-C8.2-G2
Premium coaxial ceiling speaker, 8-inch, 60 W
8" + 1" coaxial | 60 W max tap | 90 dB SPL (1W, 1m) | 60 Hz to 20 kHz | IP34
EVID-C8.2-G2
Premium coaxial ceiling speaker, 8-inch, 60 W
8" + 1" coaxial | 60 W max tap | 90 dB SPL (1W, 1m) | 60 Hz to 20 kHz | IP34
NEXT-GENERATION
EVID CEILING SPEAKERS
SUPERIOR CEILING SOUND, SIMPLIFIED
NEXT-GENERATION
EVID CEILING SPEAKERS
SUPERIOR CEILING SOUND, SIMPLIFIED

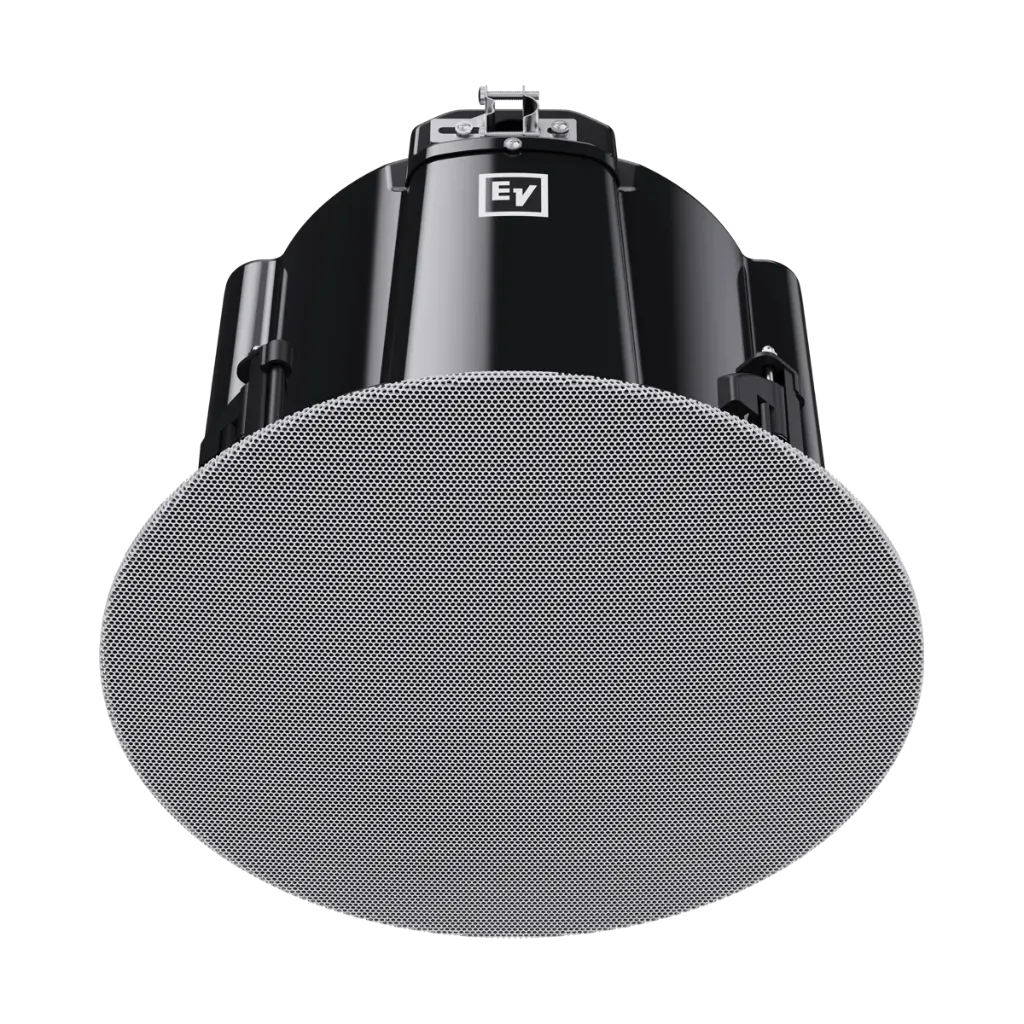

Electro‑Voice EVID‑C8.2‑G2 Loudspeaker
The Electro‑Voice EVID‑C8.2‑G2 is a high‑performance 8‑inch coaxial two‑way ceiling loudspeaker engineered for exceptional sound quality, reliability, and modern aesthetics. Perfect for commercial audio installations, it delivers clear full‑range sound while blending seamlessly into any environment.
Available in white finish, with an optional black grille sold separately for design flexibility.
Electro-Voice EVID-C8.2-G2 Product Highlights
Explore the key capabilities of the Electro-Voice EVID-C8.2-G2 ceiling speaker.
Sound
8" + 1" coaxial: 60 Hz to 20 kHz, up to 110 dB.
Coverage
90° conical coverage, 90 dB at 1 W.
70 V, 100 V or 8 Ohm
Taps 60/30/15/7.5 W, plus 3.75 W on 70 V, switch on the front baffle.
Installation
Cutout 10.7 in (272 mm), 244 mm deep. SwiftLock with tile rails and C-rings.
Build
IP34, UL 2043 plenum rated, bezel-less magnetic grille.
System
Add the EVID-C8.1S-G2 ceiling subwoofer for bass.
Key specs
- 8" + 1" coaxial
- Taps 60/30/15/7.5 W, plus 3.75 W on 70 V (70 / 100 V), 8 ohm bypass
- 90 dB SPL at 1 W, 1 m; max 110 dB
- 60 Hz to 20 kHz (-10 dB)
- 90° conical coverage
- Cutout 10.7 in (272 mm), mounting depth 244 mm
- IP34, UL 2043 plenum rated
- 7 kg
- Recommended high-pass 50 Hz
- Ceiling thickness 0.5 to 1.5 in
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-C8.2-G2 Ceiling Speaker 8" 70/100V White |
| LF Transducer Size | 8 in |
| HF Transducer Size | 1 in |
| Frequency Range (-10 dB) | 60 Hz – 20,000 Hz |
| Coverage Angle (Conical) | 90° |
| Recommended High Pass | 50 Hz |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum SPL (Continuous) | 110 dB |
| Maximum SPL (Peak) | 116 dB |
| Sensitivity (1 W, 1 m) | 90 dB SPL (1 W, 1 m) |
| Power Handling (Continuous) | 90 W |
| Power Handling (Peak) | 360 W |
| Long Term Power Handling (Continuous) | 75 W |
| Long Term Power Handling (Peak) | 300 W |
| Nominal Impedance (Low Z) | 8 Ω |
| Transformer Taps – 70 V Line | 60 W; 30 W; 15 W; 7.5 W; 3.75 W |
| Transformer Taps – 100 V Line | 60 W; 30 W; 15 W; 7.5 W |
| Connector Type | 4-pin Euroblock – Input + Pass Through |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 mm² (maximum) |
Mechanical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Grille Material | Powder Coated Steel |
| Color | White; Customized Colors |
| Color (RAL) | RAL 9003 Signal White |
| Mounting Cutout | 10.70 in / 272 mm |
| Dimensions (Ø × D) | 11.9 in × 9.8 in / 302 mm × 249.2 mm |
| Mounting Depth | 9.6 in / 244 mm |
| Ceiling Thickness | 0.5 in – 1.5 in / 12.5 mm – 38 mm |
| Weight | 15.4 lb / 7 kg |
| Shipping Weight | 36.4 lb / 16.5 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP34 |
| Weatherization | Indoor |
| Operating Temperature | 32 °F – 122 °F / 0 °C – 50 °C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety Agency Ratings | UL 1480A |
| Air-Handling Spaces | Safe for use per UL 2043 |
| CSA Certification | CSA C22.2 No. 205 |
| IEC Standard | IEC 62368-1 |
Know before you buy
Quick answers about the EVID-C8.2-G2, and how it compares.
Where does the EVID-C8.2-G2 fit?
The premium full-range model: 8" coaxial, 60 Hz to 20 kHz, taps up to 60 W. Choose it over EVID-EC6.2 when music matters or the ceiling is higher (narrower 90° coverage). Add EVID-C8.1S-G2 for bass, with a 50 Hz high-pass on the C8.2-G2.
How is it powered on a 70 V or 100 V line?
Taps 60, 30, 15 and 7.5 W, plus 3.75 W on 70 V, or 8 ohm, set by a switch on the front baffle.
How is it installed?
SwiftLock with tile rails and C-rings, ceilings 0.5 to 1.5 in thick, cutout 10.7 in (272 mm): the same as the EVID-EC6.2, so an EC6.2 can be upgraded without recutting.
What's in the box?
Each pair ships with 2 ceiling loudspeakers, 2 magnetic grilles, 4 ceiling tile rails, 2 C-rings, 4 screws, a cutout template, 2 paint covers and a quick installation guide.
Which EVID ceiling speaker for an office, school, restaurant or Masjid?
- Offices, meeting rooms, classrooms, corridors: EVID-EC4.2, 130° coverage for clear speech and background music.
- Small rooms and washrooms: EVID-EC3.1, IP45 and only 93 mm deep.
- Restaurants, shops and Masjid prayer halls, where music or the khutbah must be clear across a large floor: EVID-EC6.2.
- Premium music, higher ceilings: EVID-C8.2-G2, plus EVID-C8.1S-G2 for bass.
- Open or very high ceilings: the EVID-P6.2B pendant.
- Outdoor seating: EVID-S5.2TB or, fully exposed, EVID-S5.2XB.
How do the EVID ceiling speakers compare?
| Model | Drivers | Max tap | Sensitivity | Max SPL | Frequency range | Coverage | Cutout | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-EC3.1 | 3" one-way | 15 W | 84 dB | 100 dB | 90 Hz to 19 kHz | 135° | 7.2 in (183 mm) | IP45 |
| EVID-EC4.2 | 4" + 0.75" coaxial | 20 W | 89 dB | 106 dB | 80 Hz to 20 kHz | 130° | 7.2 in (183 mm) | IP34 |
| EVID-EC6.2 | 6.5" + 1" coaxial | 30 W | 92 dB | 110 dB | 80 Hz to 20 kHz | 110° | 10.7 in (272 mm) | IP34 |
| EVID-C8.2-G2 | 8" + 1" coaxial | 60 W | 90 dB | 110 dB | 60 Hz to 20 kHz | 90° | 10.7 in (272 mm) | IP34 |
| EVID-C8.1S-G2 | 8" subwoofer | 60 W | 90 dB | 113 dB | 45 Hz to 380 Hz | 360° | 12.7 in (322 mm) | IP34 |
| EVID-P6.2B | 6.5" + 1" pendant | 30 W | 87 dB | - | 60 Hz to 20 kHz | 115° | Pendant | Protected outdoor |
Frequency range at -10 dB, max SPL continuous. Every model takes 70 V or 100 V taps or 8 ohm.
