V Series Zone Audio Platform
Every announcement, one touch away.
VCS-8 8-Zone Call Station
Nine programmable buttons and a condenser mic for paging any zone.
V Series Zone Audio Platform
Every announcement, one touch away.
VCS-8 8-Zone Call Station
Nine programmable buttons and a condenser mic for paging any zone.

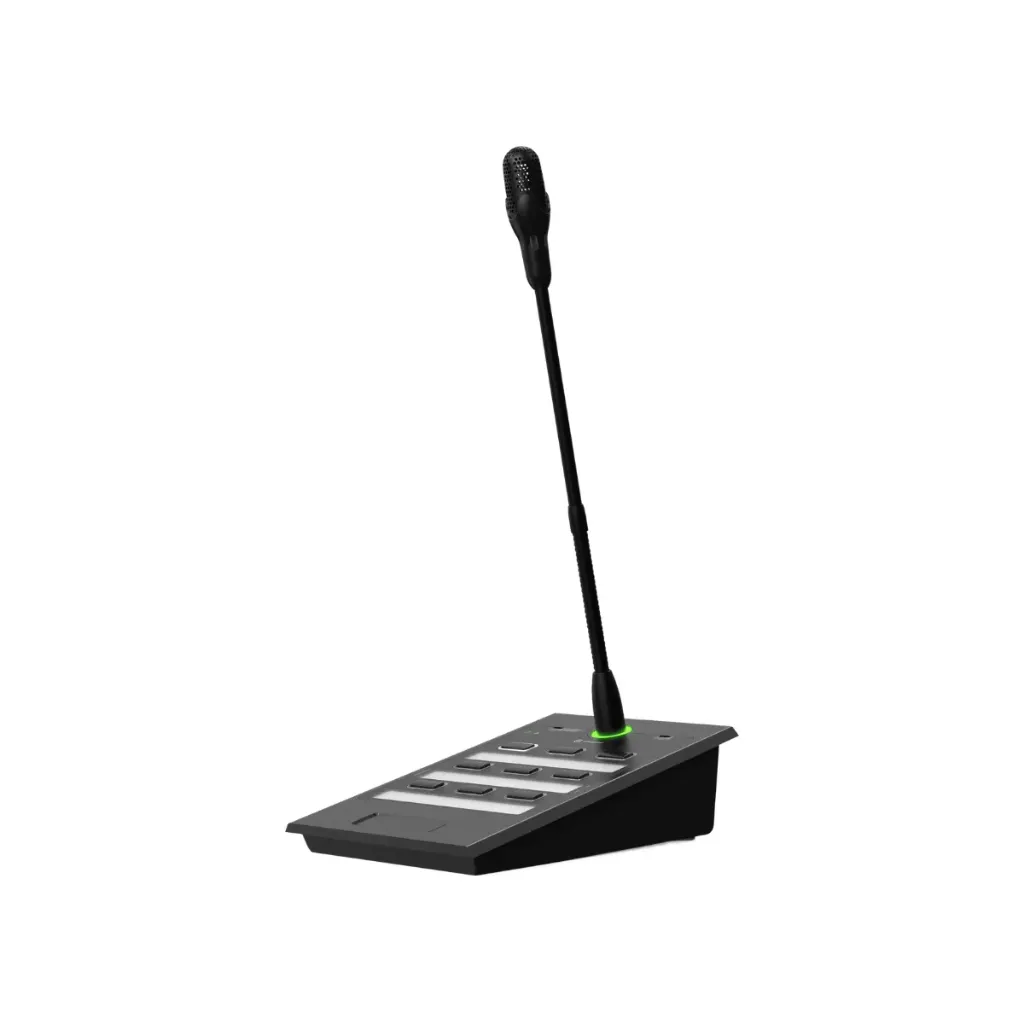

VCS-8
8-Zone Call Station
8 independent zones
Dynacord VCS-8 Product Highlights
Explore the key capabilities of the Dynacord VCS-8 call station.
Gooseneck Mic
Condenser gooseneck for clear announcements.
9 Buttons
Zones, groups or messages on 9 programmable buttons.
Pre-Chime
Selectable chime before each announcement.
Busy Ring
LED ring shows when the system is busy.
Daisy-Chain
Up to 8 on one VZX-8.
Bus Powered
No power supply: power comes over the RJ45 bus.
Compact Tabletop Footprint
At just 130mm (5.12") wide, 192mm (7.56") deep, and 60mm (2.36") tall (excluding the gooseneck microphone), the VCS-8 fits neatly on a reception desk, host stand, or control counter without taking up valuable space.
Use Cases :-
School Corridors
School hallways need clear, reliable paging that reaches every student regardless of ambient noise from lockers, conversations, and foot traffic between classes. The VCS-8 lets front office staff page individual hallways, wings, or the entire campus with a single button press — no need to run to each classroom or rely on a single overworked PA microphone. Paired with EVID ceiling or surface-mount speakers distributed throughout corridors, announcements, bell schedules, and emergency messages come through clearly across the whole facility, all managed from one call station at the front desk.
Restaurants & Bars
Restaurants and bars run multiple distinct zones at once — main dining, bar area, host stand, kitchen, restrooms, and sometimes a live music corner — each needing independent volume control and the occasional live announcement without disrupting the rest of the venue. The VCS-8 lets staff page a single zone (last call at the bar, a reservation callout at the host stand) or reach the entire venue at once, with busy indication and mutual exclusion keeping multiple call stations from talking over each other during a rush.
Hotels
Hotels need audio coverage across genuinely diverse spaces — meeting rooms, reception, guest-facing corridors, fitness centers, pools, courtyards, and the restaurant/bar — each with different acoustic needs and different staff responsible for them. The VCS-8 gives front-desk and event staff instant paging control over any single zone or the entire property, without needing a dedicated sound engineer or juggling separate systems for background music versus emergency announcements.
Key specs
- Gooseneck condenser microphone
- 9 programmable buttons + push-to-talk
- Selectable pre-chime, adjustable priority
- LED ring busy status
- Bus powered from the VZX-8 (48 VDC)
- RJ45 in / out for daisy-chain, up to 8 per VZX-8, 500 m per port
- Tabletop, 0.92 kg
Technical Specifications
| Specification | Value |
|---|---|
| Product | VCS-8 8-Zone Call Station, V Series |
| Type | Call station for V Series Zone Audio Platform |
| Mounting | Tabletop |
| Housing Type | Top: PC/ABS, Bottom: Zamak |
| Color (RAL) | RAL 9017 Traffic Black |
Electrical Specifications — General
| Specification | Value |
|---|---|
| Maximum Acoustic Input Level | 120 dB SPL |
| Minimum Signal-to-Noise Ratio | 68 dB (A-weighted) |
| Operating Voltage | 48 VDC (bus powered) |
Electrical Specifications — Microphone
| Specification | Value |
|---|---|
| Type | High-quality electret condenser, gooseneck, non-detachable |
| Frequency Response | 100 Hz – 14 kHz |
| Polar Pattern | Unidirectional |
Mechanical Specifications — Enclosure
| Specification | Value |
|---|---|
| Light Ring Indicator | Green: line open for talking; Orange: pre-chime running or zone busy (button blinks); Blue: updating |
| Buttons | 9 configurable buttons for zones/actions, plus Push-to-Talk button |
| LED Indicators | 9 total — illuminated when zone assigned/selected; blinks when zone is busy |
| Connections | 2× RJ45 (Out, In) for daisy chain |
| Audio Connection & Power Source | Accessory Bus of VZX-8 Zone Audio Processor |
| CAN Termination Plugs | 1 per accessory line (A, B) — placed in unused port on last accessory connected to VZX-8 |
| CAN Termination Type | RJ45 termination with 120 Ω resistor |
| Daisy Chain Capable | Yes — up to 8 VCS-8 units per VZX-8 |
Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H×W×D), without mic | 2.36 in × 5.12 in × 7.56 in / 60 mm × 130 mm × 192 mm |
| Shipping Dimensions (H×W×D) | 6.73 in × 15.39 in × 7.56 in / 171 mm × 391 mm × 192 mm |
| Net Weight | 2.03 lb / 0.92 kg |
| Shipping Weight | 3.13 lb / 1.42 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| Operating Temperature | 40°F – 105°F / 5°C – 40°C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety | UL 62368-1, CSA C22.2 No. 62368-1 |
| EMC | EN55032:2015+A11:2020, EN55035:2017+A11:2020 |
| FCC/ICES | Part 15 Class B (US), ICES-003 (Canada) |
| Notice | California Prop 65 warning — product can expose users to lead |
Parts Included
| Qty | Component |
|---|---|
| 1 | VCS-8 |
| 1 | Quick installation guide |
| 1 | Safety and Security Information booklet |
Know before you buy
Quick answers about the VCS-8 , and how it compares.
What does the VCS-8 do?
Live announcements to one zone, a group of zones or the whole building on a VZX-8 system, and triggers stored messages from its buttons.
How is it connected, and how many can I use?
Bus powered from the VZX-8 over RJ45, daisy-chained in / out: up to 8 per VZX-8, 500 m per port.

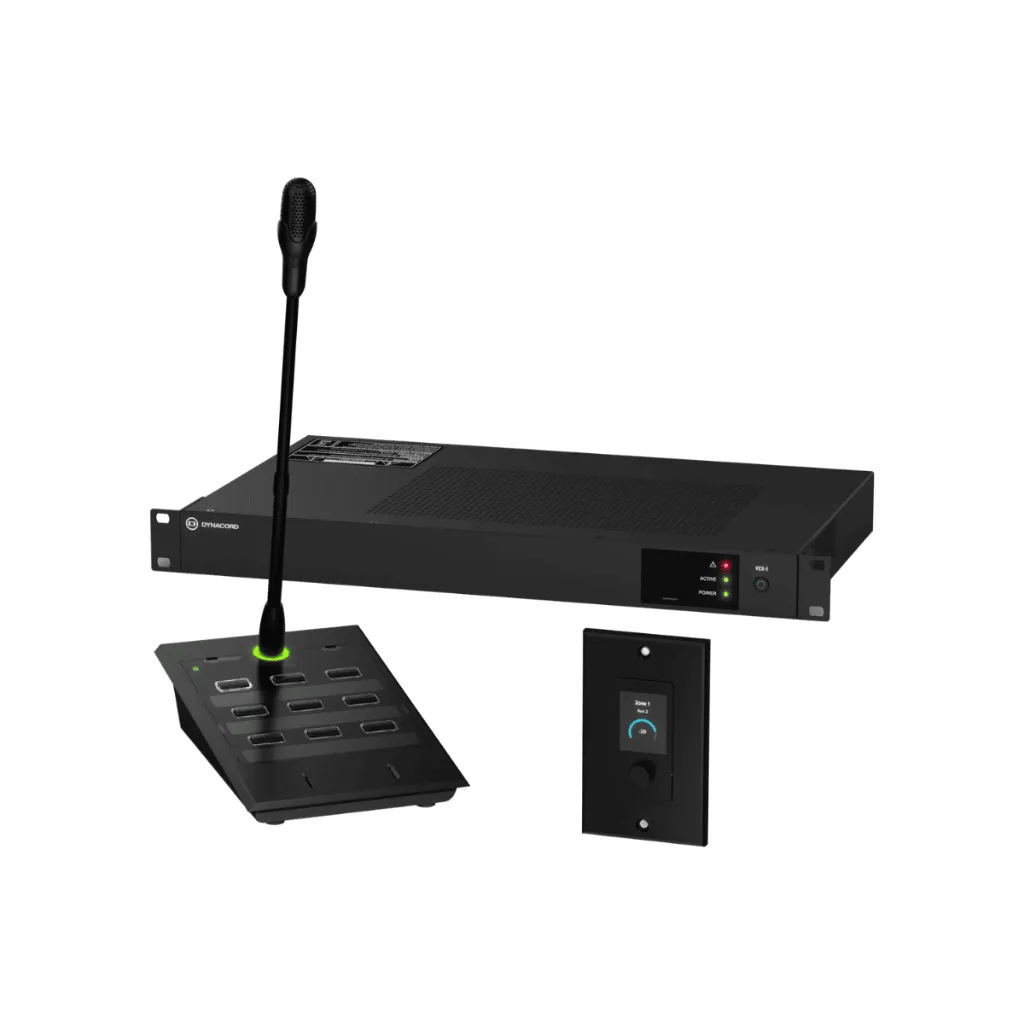

How does a V Series system fit together?
The VZX-8 is the brain: 20 sources, 8 zones, DSP, scheduled messages and a browser Web App. Its two RJ45 outputs carry zones 1-4 and 5-8 to V600:4 or V600:2 amplifiers, one cable each. VCS-8 call stations and VWP-EU wall panels daisy-chain on its two accessory ports: bus powered, up to 500 m per port, 16 devices in total, at most 8 call stations.
Who supplies Dynacord in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Dynacord across the UAE and support you after the sale. Prices are quoted per project: contact us and we will send a quote.
