DICENTIS Wireless
Secure, interference-free Wi-Fi conferencing that is quick to install and easy to reposition
DICENTIS Wireless
Secure, interference-free Wi-Fi conferencing that is quick to install and easy to reposition
Bosch DCNM-WDE Product Highlights

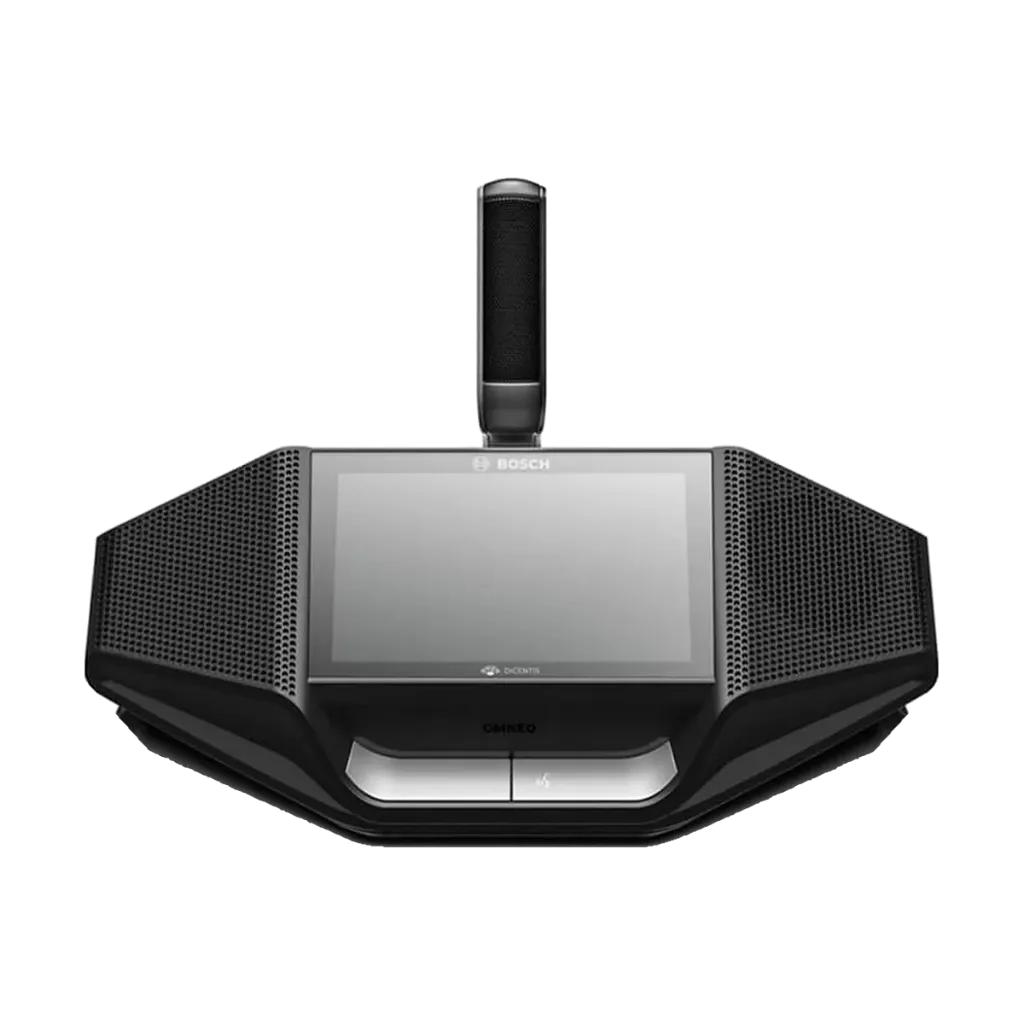

Explore the key capabilities of the Bosch DCNM-WDE DICENTIS Wireless Device Extended: touch screen, NFC identification, voting and secure Wi-Fi.4.3-Inch Touch Screen
Shows your logo, the speaker list and the request list, in several languages in original characters.
Built-in NFC Reader
Participants log in with their NFC card, with a DCNM-LSID license.
Voting at the Seat
Coloured voting buttons and bar-graph results on screen, with a DCNM-LSVT license.
Secure Wi-Fi
IEEE 802.11n in the 2.4 and 5 GHz bands, WPA2 encrypted, with automatic channel switching.
Over 20 Hours
Runs more than 20 hours on a removable DCNM-WLIION2 battery pack.
Participant, Dual Use or Chair
Set as participant, dual use or chairperson from the DCNM-WAP web browser interface.
Key specs
- 4.3-inch capacitive touch screen
- Built-in NFC reader (ISO/IEC 14443 A)
- Participant, dual use or chairperson
- Voting with DCNM-LSVT, ID with DCNM-LSID
- Wi-Fi IEEE 802.11n, 2.4 and 5 GHz, WPA2
- Socket for DCNM-HDMIC, MICS or MICL
- Over 20 h per battery (20% speaking)
- 72 x 259 x 139 mm, 670 g (1131 g with battery)
|
Electrical |
||
|
Supply voltage (battery pack) |
7.5 Vdc |
|
|
Power consumption |
4.5 W |
|
|
Operating time DCNM‑WDE |
> 20 hours (20% speech, 80% listening) |
|
|
Frequency response |
100 Hz – 20 kHz) (-3 dB at nominal level) |
|
|
THD at nominal level |
< 0.1 % |
|
|
Dynamic range |
> 90 dB |
|
|
Signal‑to‑noise ratio |
> 90 dB |
|
|
Headphone load impedance |
> 32 ohm <1k ohm |
|
|
Headphone output power |
15 mW |
|
|
Radio |
|
|
WIFI standard |
IEEE 802.11n |
|
Frequency Range |
2.4 GHz and 5 GHz (ISM license free) |
|
Audio inputs |
||
|
Nominal microphone input |
80 dB SPL according IEC60914 |
|
|
Maximum microphone input |
110 dB SPL according IEC60914 |
|
|
Audio outputs |
||
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
|
Loudspeaker maximum output |
80 dB SPL |
|
|
Headphone nominal output |
0 dBV |
|
|
Headphone maximum output |
3 dBV |
|
|
General |
||
|
Screen size (DCNM‑WDE only) |
4.3 inch |
|
|
Screen type (DCNM‑WDE only) |
Capacitive multi‑touch |
|
|
Supported contactless NFC tag (DCNM‑WDE only) |
According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
|
|
Mechanical |
||
|
Mounting |
Tabletop |
|
|
Dimensions (H x W x D) without microphone |
72 x 259 x139 mm (2.8 x 10.2 x 5.5 in) |
|
|
Weight: DCNM‑WDE DCNM‑WDE + Battery Pack |
670 g (1.47 lb) 1131 g (2.49 lb) |
|
|
Color (top and base) |
Traffic black (RAL 9017) |
|
Know before you buy
Quick answers about the DCNM-WDE, and how it compares.
DCNM-WD or DCNM-WDE?
| DCNM-WD | DCNM-WDE | |
|---|---|---|
| Screen | None | 4.3-inch touch: custom logo, speaker list, request list, user interface languages in original characters |
| NFC identification | No | Yes, with DCNM-LSID |
| Voting at the seat | No | Yes, with DCNM-LSVT |
| Dual use | With DCNM-LSDU | With DCNM-LSDU |
| Battery life | Over 24 h | Over 20 h |
| Weight with battery | 1051 g | 1131 g |
Both have a microphone socket, a built-in loudspeaker and two headphone sockets, and can be set as a participant, dual use or chairperson device. Choose the WDE where participants vote or log in with NFC cards.
What does the touch screen show?
The 4.3-inch capacitive touch screen shows your custom logo (uploaded in the access point web interface), the speaker list and the request list, with the user interface in several languages in their original characters. With an identification license it shows a welcome screen with the participant's details after login.
How does NFC identification work?
With a DCNM-LSID license, participants log in by holding their NFC card to the device (ISO/IEC 14443 Type A, MIFARE). You can allow login only at assigned seats or at any seat, and names show on the device and in the web browser interface. A WDE can also be set as an NFC reader to link new cards to participants quickly.
How do participants vote?
With a DCNM-LSVT license (ask us), voting is run from the access point web interface: enter the topic and pick an answer set (for/against, yes/no, with or without abstain). Participants confirm their presence and vote with coloured buttons on the screen, and see the results as coloured bar graphs. In dual use both participants vote at the same time with their own buttons, so the device needs two LSVT licenses.
How long does the battery last?
Over 20 hours (20% speaking, 80% listening) on a fully charged DCNM-WLIION2. The pack swaps in seconds, and the access point web interface shows battery status per seat. A DCNM-WCH05 charges five packs at once in about three hours.
Can participants listen on headphones?
Yes. Each device has two 3.5 mm stereo headphone sockets, left and right, each with its own volume control, so the speaker is clear even in a noisy room. The built-in loudspeaker and microphone can be on at the same time for a face-to-face feel; a built-in feedback suppressor prevents howling.
Is a microphone included?
No. DICENTIS discussion devices come without a microphone, so you choose one for each seat: the DCNM-HDMIC high directive microphone, or the DCNM-MICS (short) or DCNM-MICL (long) stem microphone. All three click into the same socket.
The screw-lock DCNM-MICSLS / DCNM-MICSLL are for flush seats and do not fit these devices.
What do I need for a DICENTIS Wireless system?
DICENTIS Wireless runs stand-alone, with no central control unit. You need:
- One DCNM-WAP access point: controls up to 120 DICENTIS devices. You set up and run the meeting from its web browser interface on a tablet or laptop.
- A wireless device per seat: DCNM-WD for discussion, or DCNM-WDE with a touch screen and NFC reader.
- A microphone per device: DCNM-HDMIC, DCNM-MICS or DCNM-MICL.
- A battery pack per device: DCNM-WLIION2, charged five at a time in the DCNM-WCH05.
- Optional licenses for dual use, identification, voting and camera control.
Typical coverage is 30 x 30 m per access point. A second WAP can be set up as a secondary access point for redundancy and meeting continuity.
Which licenses does DICENTIS Wireless use?
Discussion works without a license. These functions are added with licenses, activated in the DCNM-WAP web browser interface:
| Function | License | How many |
|---|---|---|
| Dual use: two participants share one device | DCNM-LSDU | One per WD or WDE |
| Identification by NFC card | DCNM-LSID | One per WDE, two in dual use |
| Voting at the seat | DCNM-LSVT (ask us) | One per WDE, two in dual use |
| Camera prepositions per seat | DCNM-LCC (ask us) | One per WAP |
Identification and voting work on the DCNM-WDE only. Each license is delivered as an activation code by e-mail.
Will DICENTIS Wireless interfere with our Wi-Fi?
No. It uses standard Wi-Fi (IEEE 802.11n) in the license-free 2.4 GHz and 5 GHz bands and is designed to co-exist with other Wi-Fi networks, mobile phones and access points nearby.
- Automatic channel switching: the access point moves to another channel seamlessly.
- Range test: checks that every device is in range on any channel the system may use.
- Packet loss concealment: masks lost packets in the audio.
- WPA2 encryption: protects against eavesdropping and unauthorized access.
No extra Wi-Fi router is needed: the tablet used for control connects to the DCNM-WAP directly.
Who supplies Bosch DICENTIS in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch DICENTIS across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
