DICENTIS Wireless
Secure, interference-free Wi-Fi conferencing that is quick to install and easy to reposition
DICENTIS Wireless
Secure, interference-free Wi-Fi conferencing that is quick to install and easy to reposition

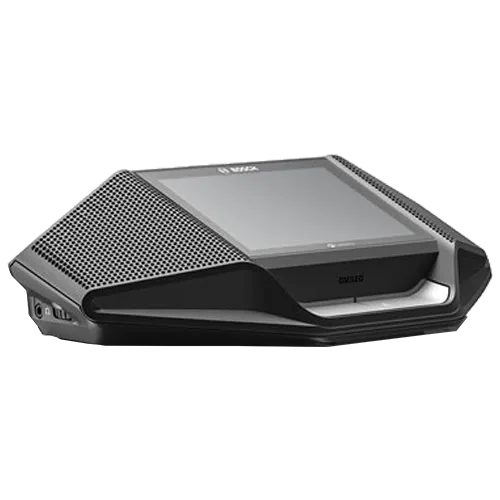

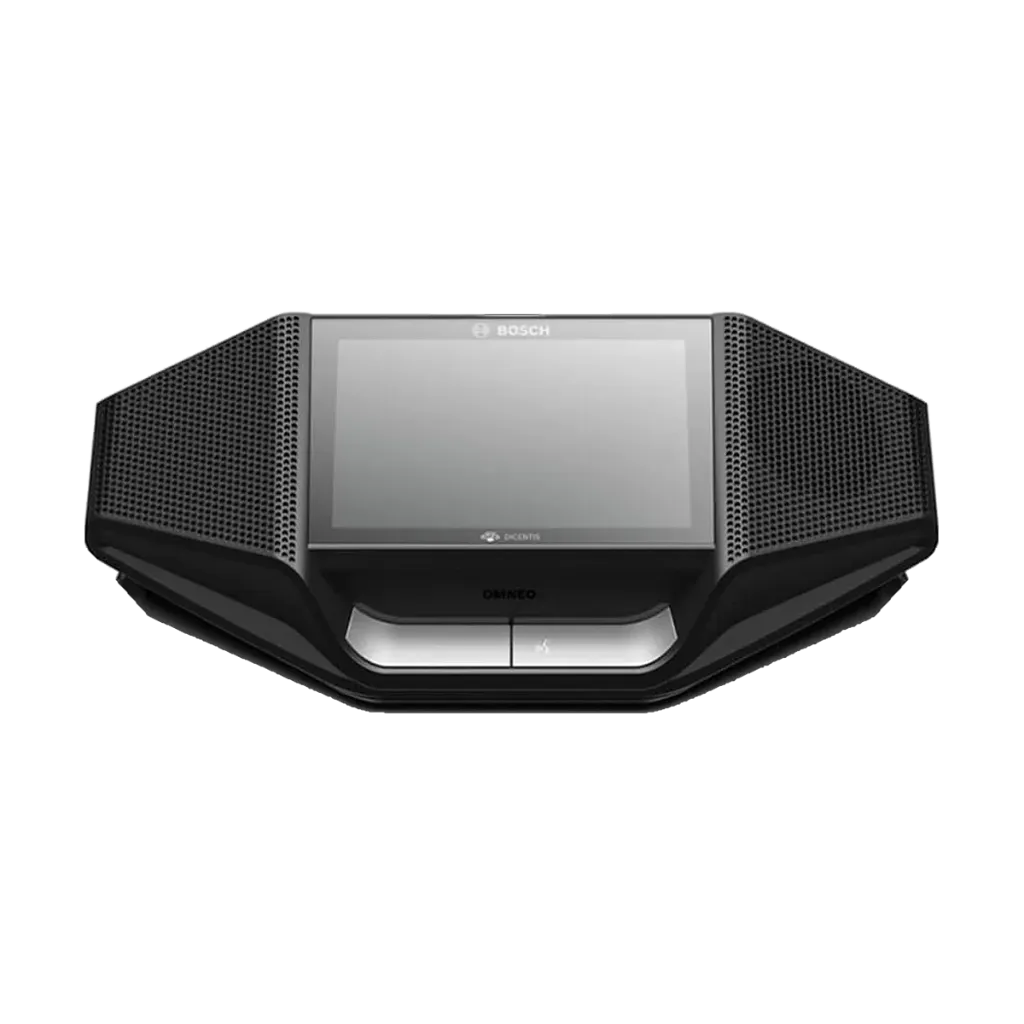

Bosch DCNM-WDE Product Highlights
Explore the key capabilities of the Bosch DCNM-WDE DICENTIS Wireless Device Extended: touch screen, NFC identification, voting and secure Wi-Fi.4.3-Inch Touch Screen
Shows your logo, the speaker list and the request list, in several languages in original characters.
Built-in NFC Reader
Participants log in with their NFC card, with a DCNM-LSID license.
Voting at the Seat
Coloured voting buttons and bar-graph results on screen, with a DCNM-LSVT license.
Secure Wi-Fi
IEEE 802.11n in the 2.4 and 5 GHz bands, WPA2 encrypted, with automatic channel switching.
Over 20 Hours
Runs more than 20 hours on a removable DCNM-WLIION2 battery pack.
Participant, Dual Use or Chair
Set as participant, dual use or chairperson from the DCNM-WAP web browser interface.
Key specs
- 4.3-inch capacitive touch screen
- Built-in NFC reader (ISO/IEC 14443 A)
- Participant, dual use or chairperson
- Voting with DCNM-LSVT, ID with DCNM-LSID
- Wi-Fi IEEE 802.11n, 2.4 and 5 GHz, WPA2

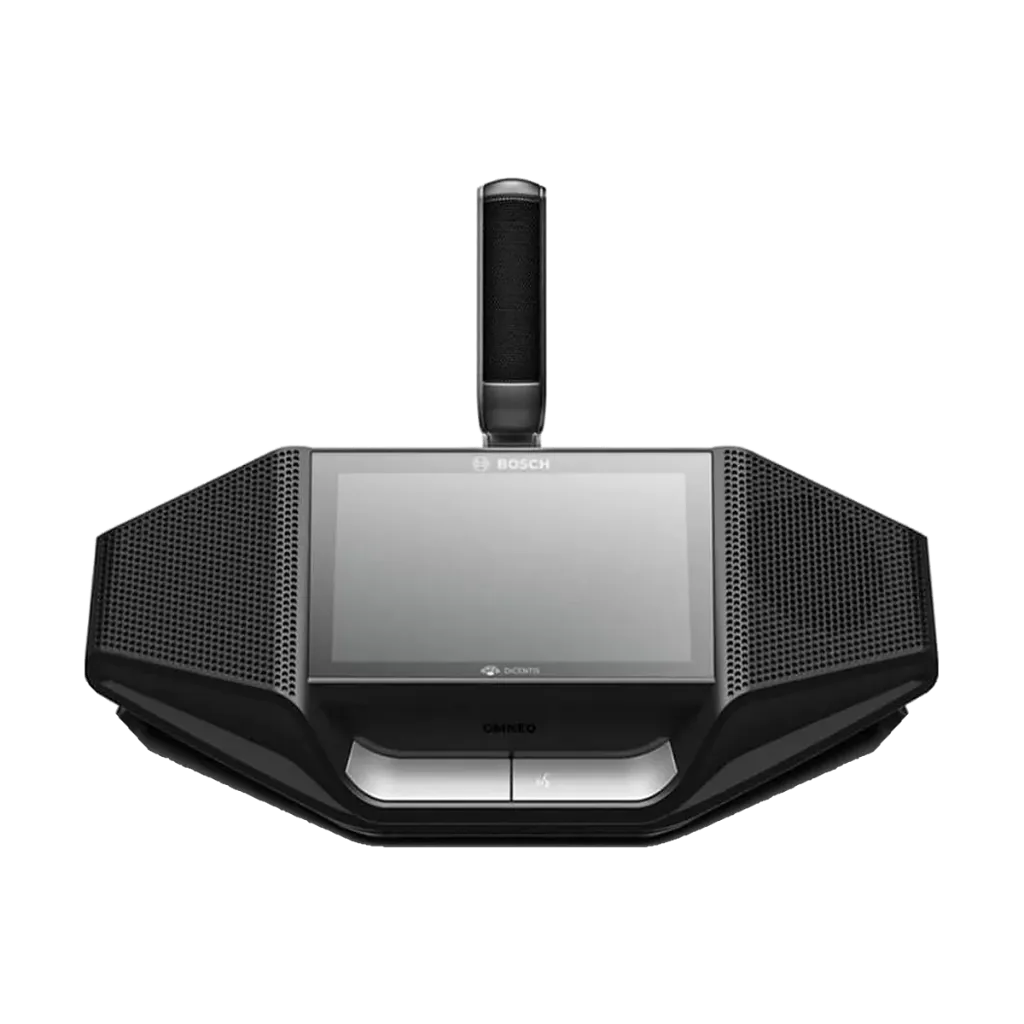

- Socket for DCNM-HDMIC, MICS or MICL
- Over 20 h per battery (20% speaking)
- 72 x 259 x 139 mm, 670 g (1131 g with battery)
|
Electrical |
||
|
Supply voltage (battery pack) |
7.5 Vdc |
|
|
Power consumption |
4.5 W |
|
|
Operating time DCNM‑WDE |
> 20 hours (20% speech, 80% listening) |
|
|
Frequency response |
100 Hz – 20 kHz) (-3 dB at nominal level) |
|
|
THD at nominal level |
< 0.1 % |
|
|
Dynamic range |
> 90 dB |
|
|
Signal‑to‑noise ratio |
> 90 dB |
|
|
Headphone load impedance |
> 32 ohm <1k ohm |
|
|
Headphone output power |
15 mW |
|
|
Radio |
|
|
WIFI standard |
IEEE 802.11n |
|
Frequency Range |
2.4 GHz and 5 GHz (ISM license free) |
|
Audio inputs |
||
|
Nominal microphone input |
80 dB SPL according IEC60914 |
|
|
Maximum microphone input |
110 dB SPL according IEC60914 |
|
|
Audio outputs |
||
|
Loudspeaker nominal output |
72 dB SPL at 0.5 m |
|
|
Loudspeaker maximum output |
80 dB SPL |
|
|
Headphone nominal output |
0 dBV |
|
|
Headphone maximum output |
3 dBV |
|
|
General |
||
|
Screen size (DCNM‑WDE only) |
4.3 inch |
|
|
Screen type (DCNM‑WDE only) |
Capacitive multi‑touch |
|
|
Supported contactless NFC tag (DCNM‑WDE only) |
According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
|
|
Mechanical |
||
|
Mounting |
Tabletop |
|
|
Dimensions (H x W x D) without microphone |
72 x 259 x139 mm (2.8 x 10.2 x 5.5 in) |
|
|
Weight: DCNM‑WDE DCNM‑WDE + Battery Pack |
670 g (1.47 lb) 1131 g (2.49 lb) |
|
|
Color (top and base) |
Traffic black (RAL 9017) |
|
