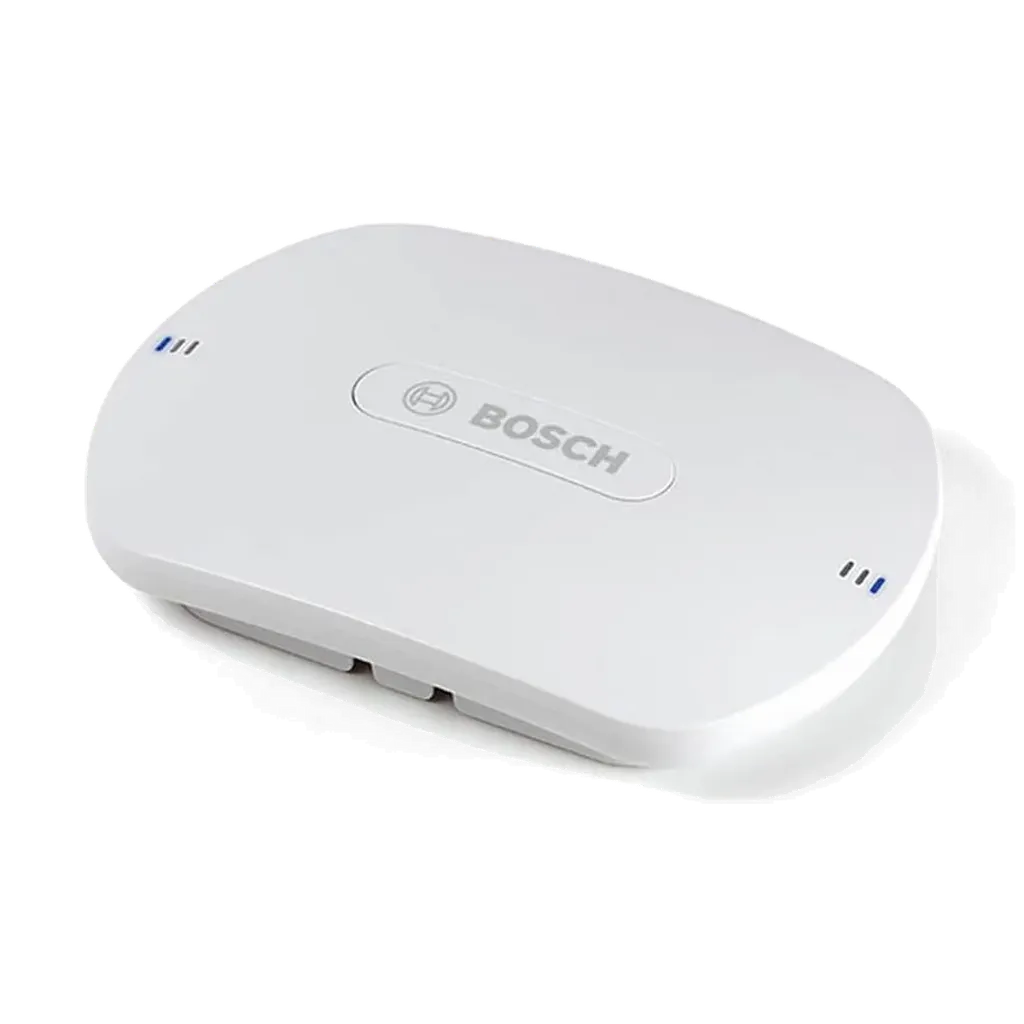

DCNM-WAP

DCNM-WAP

(0 reviews)

The heart of a DICENTIS Wireless system. It runs stand-alone, with no central control unit, and controls up to 120 DICENTIS devices over WPA2-encrypted Wi-Fi in the 2.4 and 5 GHz bands. Set up, run and license the whole system from its built-in web browser interface on a tablet or laptop. Power adapter and mounting bracket included. Scroll down for details.

See full specs and details Have a question? 8 answered
AED 0 AED 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Contact Us
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch, Invented for life
Bosch DICENTIS Wireless DCNM-WDE discussion device on a meeting table with delegates

DICENTIS Wireless

Secure, interference-free Wi-Fi conferencing that is quick to install and easy to reposition

Bosch DCNM-WAP Product Highlights

Explore the key capabilities of the Bosch DCNM-WAP DICENTIS Wireless Access Point, the heart of a DICENTIS Wireless system.

Stand-Alone

Runs the whole system with no central control unit, for up to 120 DICENTIS devices.

Web Browser Control

Set up, run and license the system from the built-in web browser interface on a tablet or laptop.

Zero Interference

Standard Wi-Fi in 2.4 and 5 GHz, seamless automatic channel switching and a range test.

WPA2 Security

WPA2 encryption for secure communication with every device.

Camera Control

Native support for up to six SDI cameras; seat prepositions with a DCNM-LCC license.

Flexible Power and Mounting

Power adapter, PoE or DICENTIS system cable; wall, ceiling or floor stand, bracket included.

Technical Specifications

Key specs

  • Stand-alone, no central control unit
  • Up to 120 DICENTIS devices
  • Wi-Fi IEEE 802.11n, 2.4 and 5 GHz
  • WPA2, automatic channel switching
  • Typical coverage 30 x 30 m
  • Power: adapter, PoE or DICENTIS cable
  • Balanced line in and out (6.3 mm jacks)
  • Wall, ceiling or floor stand mounting
  • 285 x 202 x 65 mm, 725 g, RAL 7035 light grey
Chat on WhatsApp

Supply voltage (PSU)

100‑240 Vac 50‑60 Hz in
48 Vdc out

PoE

802.3af, 802.3at - type 1 mode A
(endspan), mode B (midspan)

DCNM system supply

48 Vdc

Power consumption

10 W

Frequency response

80 Hz - 20 kHz

THD at nominal level

<0.1 %

Dynamic range

>98 dBA

Signal‑to‑noise ratio

>96 dBA

Ethernet

1000Base‑T IEEE 802.3ab

Jack nominal

-18 dBV

Jack maximum

+18 dBV

Jack nominal

-18 dBV

Jack maximum

+20 dBV

WIFI standard

IEEE 802.11n

Frequency Range

2.4 GHz and 5 GHz (ISM license free)

Mounting

Ceiling, Wall or Tripod floor stand (using included bracket)

Dimensions (H x W x D) with bracket

285 x 202 x 65 mm

(11.2 x 8.0 x 2.6 in)

Weight:

with bracket

without bracket



958 g (2.11 lb)

725 g (1.60 lb)

Color

Light grey (RAL 000 7500)

Operating temperature

5 ºC to +45 ºC

(41 ºF to +113 ºF)

Storage and transport temperature

-20 ºC to +70 ºC

(-4 ºF to +158 ºF)

Relative humidity

< 95 %, > 5 %
