CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
Bosch CCSD-FDL Product Highlights

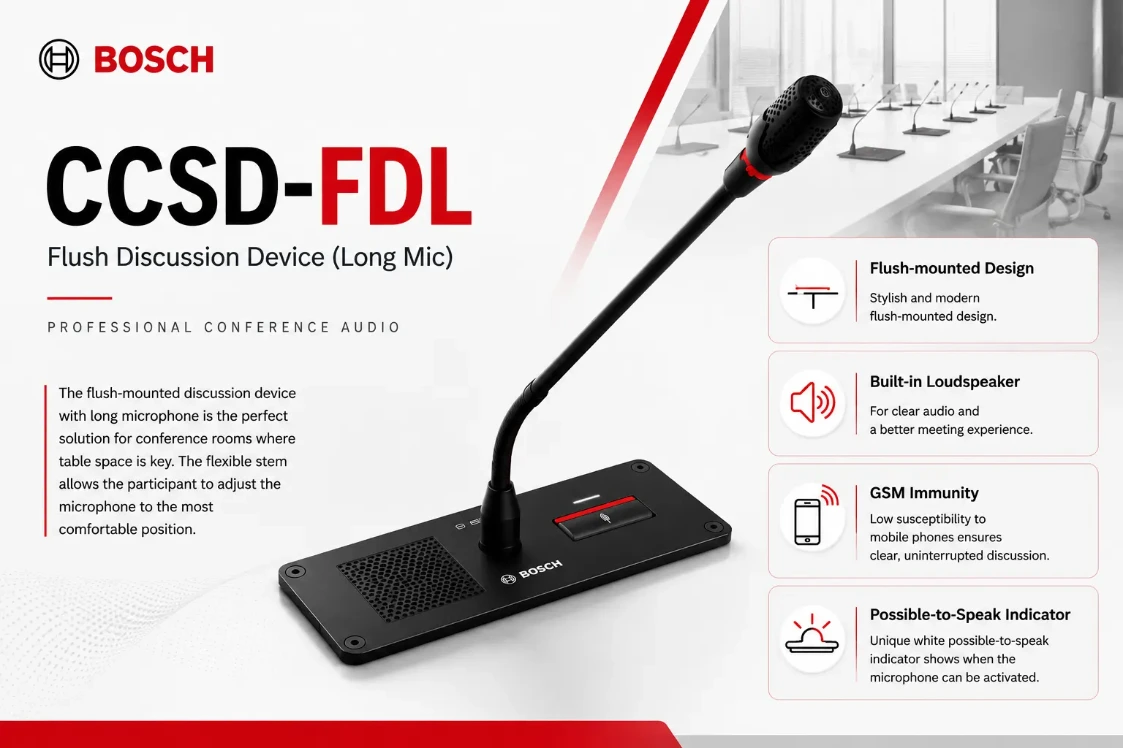

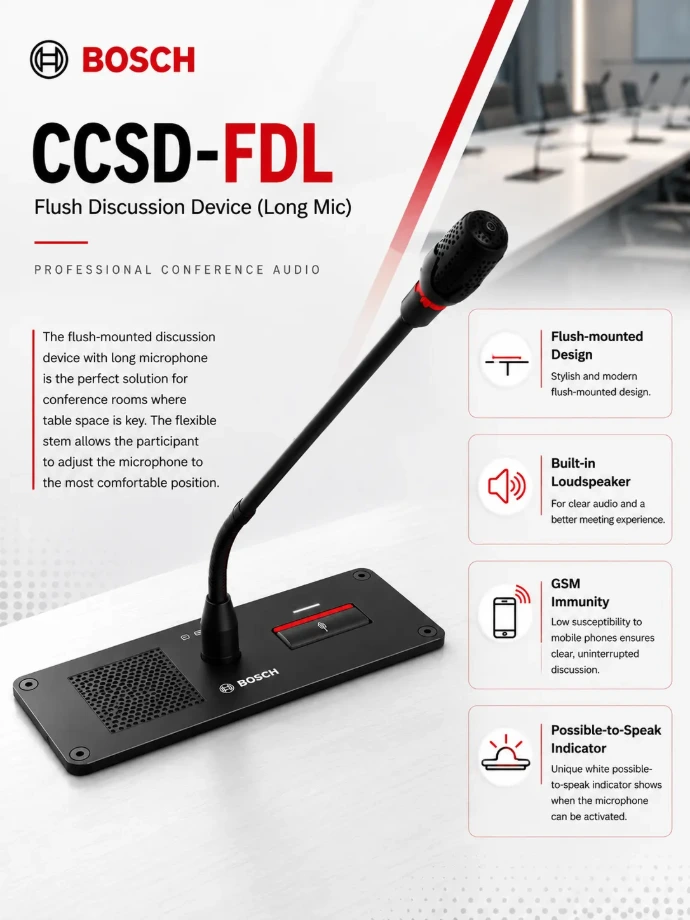

Explore the key capabilities of the Bosch CCSD-FDL CCS 1000 D flush discussion device with long microphone.Possible-to-Speak Light
A white light shows when the microphone can be switched on; green shows a waiting request.
Flush-Mounted Design
Fits into the table, for rooms where table space is key.
480 mm Flexible Microphone
Fixed cardioid microphone on a long flexible stem.
Built-in Loudspeaker
Loudspeaker and microphone can be on together for a face-to-face feel; volume set centrally.
Mobile Phone Immunity
Low susceptibility to mobile phone interference.
Easy Installation
Cut-out template and screws included; tables up to 40 mm thick, up to 35 devices per trunk.
Key specs
- Flush-mounted participant device
- 480 mm flexible-stem cardioid mic
- White / green status lights
- Built-in loudspeaker, 72 dB SPL
- Tables up to 40 mm, template included
- Up to 35 flush devices per trunk
- 63 x 173 x 92 mm, 560 g
- 1.5 W, RAL 9017 Traffic black
Technical Specifications
|
Power consumption (W) |
1.50 W |
|
Frequency response (Hz) |
30Hz - 20,000 Hz |
|
Total harmonic distortion + noise (%) |
< 2% |
|
Minimum signal-to-noise ratio (dBA) |
> 75 dBA |
|
Sample rate (kHz) |
44.10 kHz |
|
Maximum number of flush discussion devices supported per trunk |
35 |
|
Nominal acoustic output level (dB SPL) (loudspeaker) |
72 dB SPL |
|
Nominal acoustic input level (dB SPL) (microphone) |
85 dB SPL |
|
Frequency response (Hz) (participants’ loudspeaker) |
200 Hz – 16,000 Hz |
|
Frequency response (Hz) (participants’ microphone) |
125 Hz ‒ 15,000 Hz |
|
Polar pattern (microphone) |
Cardioid |
|
Dimensions (H x W x D) (mm) (excluding microphone) |
63 mm x 173 mm x 92 mm |
|
Dimensions (H x W x D) (in) (excluding microphone) |
2.48 in x 6.81 in x 3.62 in |
|
Thickness (mm) |
3 mm |
|
Thickness (in) |
0.12 in |
|
Maximum table thickness (mm) |
40 mm |
|
Maximum table thickness (in) |
1.57 in |
|
Microphone stem length (mm) |
480 mm |
|
Microphone stem length (in) |
18.90 in |
|
Mounting type |
Flush-mounted
|
|
Material |
Plastic ABS+PC |
|
Color (RAL) |
RAL 9017 Traffic black |
|
Connector type |
6-pin Connector male |
|
Cable length (m) |
2 m |
|
Cable length (ft) |
6.56 ft |
|
Weight (g) |
560 g |
|
Weight (lb) |
1.23 lb |
|
Operating temperature (°C) |
0 °C – 35 °C |
|
Operating temperature (°F) |
32 °F – 95 °F |
|
Storage temperature (°C) |
-40 °C – 70 °C |
|
Storage temperature (°F) |
-40 °F – 158 °F |
|
Operating relative humidity, noncondensing (%) |
95% |
|
Air pressure (hPa) |
600 hPa – 1,100 hPa |
Know before you buy
Quick answers about the CCSD-FDL, and how it compares.
Which CCS 1000 D discussion device do I need?
| Device | Mounting | Microphone | Role | Size, weight |
|---|---|---|---|---|
| CCSD-DL2 | Tabletop | Long, 480 mm | Participant or chair | 50 x 150 x 132 mm, about 1 kg |
| CCSD-DS2 | Tabletop | Short, 310 mm | Participant or chair | 50 x 150 x 132 mm, about 1 kg |
| CCSD-DL | Tabletop | Long, 480 mm | Participant or chair | 64 x 203 x 146 mm, about 1 kg |
| CCSD-DS | Tabletop | Short, 310 mm | Participant or chair | 64 x 203 x 146 mm, about 1 kg |
| CCSD-FDL | Flush | Long, 480 mm | Participant | 63 x 173 x 92 mm, 560 g |
| CCSD-FCML | Flush | Long, 480 mm | Chairperson | 63 x 173 x 92 mm, 560 g |
All have a flexible-stem cardioid microphone, built-in loudspeaker and the white possible-to-speak light. Tabletop devices add a headphone socket. Short-microphone flush versions: CCSD-FDS (ask us), CCSD-FCMS (ask us).
How is the flush device installed?
It fits into a cut-out in tables up to 40 mm thick; a cut-out template and five wood screws are in the box. The 2 m cable with locking 6-pole connector and the loop-through socket daisy-chain the devices, up to 35 flush devices per trunk.
What do the lights on the device mean?
- White above the microphone button: you can switch your microphone on now.
- Green above the button and in the microphone head: your request is in the waiting list; it flashes when you are next.
- The microphone head has a light ring as well.
How do I set up a chairperson seat?
Tabletop devices ship with a participant microphone button. For the chairperson, clip on the chairperson buttons (microphone and priority) and set the concealed slide switch under the device to chairperson; no system restart. For the CCSD-DL2 and CCSD-DS2 the buttons are ordered separately: CCSD-DCBCM (ask us), 10 pairs with the removal tool. For the original CCSD-DL / DS, ask us.
Flush seats use the CCSD-FCML, a dedicated chairperson device with its own priority button.
The chairperson holds the priority button to overrule all participant microphones; a chime announces it. Up to 25 devices can be chairperson or interruption microphones.
Which discussion modes does CCS 1000 D have?
- Open: participants press to speak; when the open microphones are full, the next request joins the waiting list.
- Override: a new speaker switches off the microphone that has been on longest (never the chairperson).
- Voice activation: microphones switch on when someone speaks; hold the button to mute.
- Push to talk: the microphone is on while the button is held.
Up to 4 open microphones are set on the control unit, up to 25 in the web browser interface. An interruption microphone, for example at a podium, always gets the floor.
What do I need for a CCS 1000 D system?
- A control unit: CCSD-CURD with MP3 recorder and feedback suppression, or CCSD-CU (ask us) without them. It powers and controls up to 80 discussion devices on two trunks of 40.
- Extension units for bigger rooms: each CCSD-EXU powers up to 85 more devices, for a maximum of 245.
- Tabletop devices: CCSD-DL2 (long microphone) or CCSD-DS2 (short microphone), each set as participant or chairperson.
- Flush devices: CCSD-FDL for participants and CCSD-FCML for the chairperson, both with long microphones; short-microphone CCSD-FDS (ask us) and CCSD-FCMS (ask us). Up to 35 flush devices per trunk.
- A tablet, laptop or PC for the web browser interface and advanced settings.
Devices daisy-chain with their own 2 m cables and are plug and play: no restart when you add or remove one.
Who supplies Bosch CCS 1000 D in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch CCS 1000 D across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
