CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
Bosch CCSD-DS Product Highlights

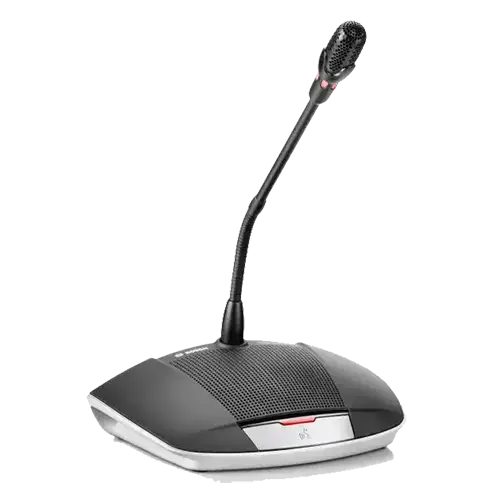

Explore the key capabilities of the Bosch CCSD-DS CCS 1000 D Discussion Device with short microphone.Possible-to-Speak Light
A white light above the microphone button shows when the microphone can be switched on.
Plug and Play
Connect or remove devices without a restart, for fast installation and changes.
Participant or Chairperson
Becomes a chairperson device with priority button by changing the buttons and a slide switch.
310 mm Flexible Microphone
Fixed cardioid microphone on a flexible 310 mm stem, easy to adjust.
Loudspeaker and Headphones
Built-in loudspeaker that stays on while you speak, plus a headphone socket with volume wheel.
Mobile Phone Immunity
Immune to mobile phone interference for clear, uninterrupted discussion.
CCS 1000 D Features
Bosch-designed microphone for crystal-clear speech
Sturdy casing with built-in loudspeaker
LED shows when to speak (white), queue (green) and mic on (red)
Delegate unit converts to a chairperson unit in seconds
Headphone socket with volume control
CCS 1000 D Features
Bosch-designed microphone for crystal-clear speech
Sturdy casing with built-in loudspeaker
LED shows when to speak (white), queue (green) and mic on (red)
Delegate unit converts to a chairperson unit in seconds
Headphone socket with volume control
Key specs
- 310 mm flexible-stem cardioid mic
- Participant or chairperson device
- White possible-to-speak light
- Built-in loudspeaker, 72 dB SPL
- 3.5 mm headphone socket with volume
- Plug and play daisy-chain, 2 m cable
- 64 x 203 x 146 mm, about 1 kg
- Black top, pearl light grey base
|
Electrical |
|
|
Power consumption |
1.3 W |
|
Frequency response |
30 Hz to 20 kHz (System electrical) |
|
THD |
<0.5 % |
|
S/N |
>93 dBA |
|
Sampling rate |
44.1 kHz |
|
Headphones load impedance |
> 32 ohms < 1k ohm |
|
Loudspeaker max. peak output power |
4 W |
|
Acoustical |
|
|
Loudspeaker nominal output |
72 dB SPL |
|
Participants loudspeaker frequency response |
200 Hz to 16 kHz (acoustical) |
|
Microphone polar pattern |
Cardioid |
|
Participants microphone frequency response |
125 Hz to 15 kHz |
|
Microphone nominal input |
85 dB SPL |
|
Mechanical |
||
|
Dimensions device without microphone (H x W x D) |
64 x 203 x 146 mm (2.5 x 8.0 x 5.7 in) |
|
|
Height with microphone in horizontal position |
130 mm (5.1 in) |
|
|
Length of microphone from mounting surface |
CCSD‑DS: 310 mm (12.2 in) | |
|
Weight |
Approx. 1 kg (2.2 lb) |
|
|
Mounting |
Tabletop (portable or fixed) |
|
|
Material (top) |
Plastic ABS+PC |
|
|
Material (base) |
Metal ZnAl4 |
|
|
Color (top) |
Traffic black (RAL 9017) matt- gloss |
|
|
Color (base) |
Pearl light grey (RAL 9022) matt- gloss |
|
|
Environmental |
||
|
Operating temperature |
0 ºC to +35 ºC (+32 ºF to +95 ºF) |
|
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
|
Relative humidity |
5% to 98% non-condensing |
|
|
Air pressure |
600 to 1100 hPa |
|
