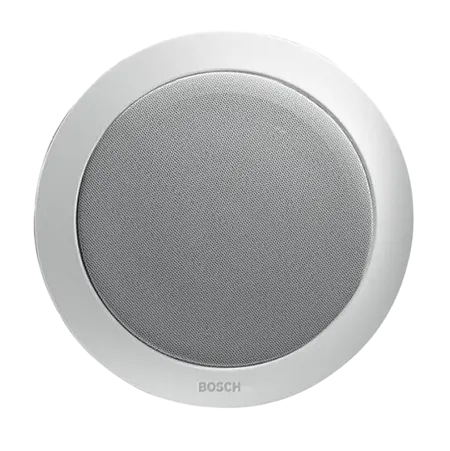

LBC3086/41
Ceiling loudspeaker with mounting ring, 6W
6 / 3 / 1.5 / 0.75 W | Metal grille | 90 dB SPL (1W, 1m) | 90 Hz to 20 kHz | EN54-24 with LBC3081/02
LBC3086/41
Ceiling loudspeaker with mounting ring, 6W
6 / 3 / 1.5 / 0.75 W | Metal grille | 90 dB SPL (1W, 1m) | 90 Hz to 20 kHz | EN54-24 with LBC3081/02
Bosch LBC3086/41 Product Highlights
Explore the key capabilities of the Bosch LBC3086/41 ceiling loudspeaker.
EN54-24 with Fire Dome
With the LBC3081/02 fire dome: EN54-24, BS 5839-8 and IP32.
Line Stays Up in a Fire
Ceramic terminal blocks, thermal fuse and heat-resistant wiring.
Speech and Music
90 dB SPL at 1 W, 1 m; 90 Hz to 20 kHz for speech and music reproduction.
Wide Coverage
Opening angle 180° / 50° at 1 kHz / 4 kHz.
Ring and Bayonet
A mounting ring with three spring clamps; the loudspeaker locks in with a bayonet.
Four Power Taps
6, 3, 1.5 and 0.75 W in 3 dB steps, loop-through terminal.
Key specs
- Taps 6 / 3 / 1.5 / 0.75 W (100 V), max 9 W
- 98 / 90 dB SPL at 6 W / 1 W (1 kHz, 1 m)
- 90 Hz to 20 kHz
- Opening angle 180° / 50°
- 196 mm cut-out, ceilings 9 to 25 mm
- Ø 216 mm, depth 90 mm, 1.3 kg
- Metal grille, mounting ring with bayonet
- 3-pole ceramic screw terminal, loop-through
- RAL 9010 white
- EN54-24, BS 5839-8, IP32 with LBC3081/02
|
Electrical |
||
|
Maximum power |
9 W |
|
|
Rated power |
6 / 3 / 1.5 / 0.75 W |
|
|
Sound pressure level at 6 W / 1 W (1 kHz, 1 m) |
98 dB / 90 dB (SPL) |
|
|
Sound pressure level at 6 W / 1 W (1 kHz, 4 m) |
89 dB / 81 dB (SPL) |
|
|
Effective frequency range (-10 dB) |
90 Hz to 20 kHz |
|
|
Opening angle at 1 kHz/4 kHz (-6 dB) |
180° / 50° |
|
|
Rated voltage Rated impedance 3 W 1.5 W 0.75 W |
100 V 1667 Ohm 3333 Ohm 6667 Ohm 13333 Ohm |
|
|
Connector |
3-pole screw terminal block |
|
|
Mechanical |
||
|
Diameter |
216 mm (8.5 in) |
|
|
Maximum depth |
90 mm (3.54 in) |
|
|
Ceiling thickness |
9 to 25 mm (0.35 to 0.98 in) |
|
|
Mounting cut-out |
196 mm (7.7 in) |
|
|
Weight |
1.3 kg (2.86 lb) |
|
|
Color |
White (RAL 9010) |
|
|
Magnet weight |
150 g (5.3 oz) |
|
|
Environmental |
|
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
|
Relative humidity |
<95% |
|
Know before you buy
Quick answers about the LBC3086/41, and how it compares.
Is the LBC3086/41 EN54-24?
Yes, when fitted with the LBC3081/02 steel fire dome: EN54-24, BS 5839-8 and IP32. Without it, it is a 6 W ceiling loudspeaker with ceramic terminals and thermal fuse.
How do the 6 W ceiling loudspeakers compare?
| Model | Build | SPL 1 W, 1 m (1 kHz) | Frequency range | Cut-out | EN54-24 |
|---|---|---|---|---|---|
| LC3-UC06 | ABS | 86 dB | 90 Hz to 20 kHz | 167 mm | No |
| LC3-UC06E | ABS | 86 dB | 90 Hz to 20 kHz | 167 mm | With LC3-CBB |
| LC9-UC06 | Metal grille, plastic surround | 92 dB | 80 Hz to 20 kHz | - | No |
| LHM0606/10 | Metal grille | 86 dB | 80 Hz to 18 kHz | 165 mm | No |
| LBC3090/01 | ABS grille, metal frame | 91 dB | 70 Hz to 18 kHz | 182 mm | No |
| LBC3090/31 | Metal grille | 91 dB | 70 Hz to 18 kHz | 172 mm | No |
| LBC3951/11 | Metal grille, 4-inch, IPx4 | 88 dB | 60 Hz to 18 kHz | 145 mm | No |
| LBC3086/41 | Metal grille | 90 dB | 90 Hz to 20 kHz | 196 mm | With LBC3081/02 |
| LC3-UM06E | Metal grille, fire dome | 92 dB | 290 Hz to 18 kHz | 170 mm | Yes |
| LC1-UM06E8 | Steel, modular | 89 dB | 70 Hz to 20 kHz | 190 / 200 mm | In LC1 housing |
The new series is on Entry and Mid Level pages, all with a 180 mm cut-out.
Which fire dome or back box fits my ceiling loudspeaker?
- LBC3080/01: steel fire dome, flame red RAL 3000, EN54-24 certified, for LBC3090/01, LBC3090/31, LHM0606/10, LHM0606/00, LHM0626/00 and LBC3087/41. A white version, LBC3080/11, is available (ask us).
- LBC3081/02: steel fire dome, flame red, for LBC3086/41. With it, the LBC3086/41 is EN54-24 certified.
- LC3-CBB: ABS back box for the LC3 range. The LC3-UC06E is EN54-24 only with it.
- LC1-MFDS metal fire dome, LC1-CMR mounting ring with LC1-CBB back box, or LC1-MMSB bracket: housings for the LC1 range.
The LC3-UM06E and the new Mid and Performance Level models have a metal fire dome built in.
What cut-out does the ceiling loudspeaker need?
The new series is standardized on 180 mm: every Entry and Mid Level model and the 4-inch LCP-20MWE. The 6.5-inch LCP-30MWE needs 272 mm.
Replacing older loudspeakers? Their EN54 cut-outs differ: LBC3099 210 mm, LC1-MFD and LC1-MFDS 190 mm, LC1-CMR 200 mm, LBC3086 196 mm, LC4-MFD 178 mm, LC4-CBB 162 mm, LC3-UM06E 170 mm. Ask us for the right model for your existing holes.
What do the power taps mean?
Each loudspeaker can be set to one of its power taps, for example 6 / 3 W. Choose a lower tap for small or quiet areas and a higher tap for large or noisy ones. Add up the taps of every loudspeaker on a line: the amplifier must deliver at least that total.
Many 6 W ceiling loudspeakers are tapped down to 3 W, 1.5 W or 0.75 W in the field; in smaller or low-noise areas 3 W is more than enough.
Who supplies Bosch loudspeakers in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch loudspeakers across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
