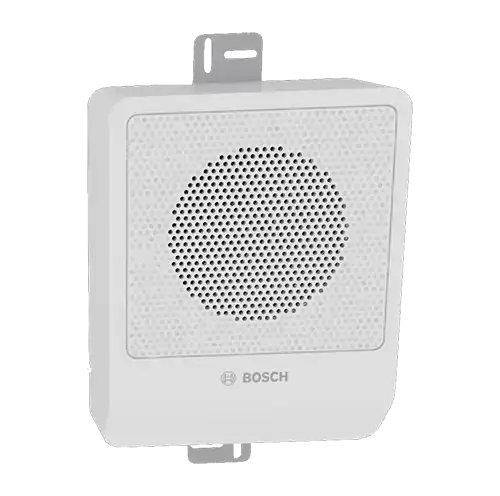

LB10-UC06-FL
Flat cabinet loudspeaker, white, 6W
6 / 3 / 1.5 / 0.75 W | Solid ABS | 91 dB SPL (1W, 1m) | 145 Hz to 18 kHz | Non-EN54
LB10-UC06-FL
Flat cabinet loudspeaker, white, 6W
6 / 3 / 1.5 / 0.75 W | Solid ABS | 91 dB SPL (1W, 1m) | 145 Hz to 18 kHz | Non-EN54
Bosch LB10-UC06-FL Product Highlights
Explore the key capabilities of the Bosch LB10-UC06-FL cabinet loudspeaker.
Flat Design
Only 66 mm deep: neat on walls and ceilings.
Speech and Music
Good speech and background music, 91 dB at 1 W.
Wide Coverage
Opening angle 168° / 89°, 145 Hz to 18 kHz.
Solid ABS
A robust solid ABS housing, white RAL 9003.
Wall or Ceiling
Three keyholes, or the brackets for wall or ceiling.
Simple Power Setting
Taps on 100 V via a 4-pole screw terminal.
LB10-UC06-FL
The LB10-UC06-Fx are 6W, Flat White, general-purpose, cost-effective loudspeakers for indoor use. Keyholes at the rear are provided for quick and easy wall mounting.
Features
Good speech intelligibility and background music reproduction, ABS construction, Mounting brackets for wall or ceiling mounting, Complies with international installation and safety regulations
Certification
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards.
Key specs
- Taps 6 / 3 / 1.5 / 0.75 W (100 V)
- 99 / 91 dB SPL at 6 W / 1 W (1 m)
- 145 Hz to 18 kHz (-10 dB)
- Opening angle 168° / 89° (1 / 4 kHz)
- 205 x 160 x 66 mm, 0.83 kg
- Solid ABS
- Keyholes and brackets for wall or ceiling
- 4-pole screw terminal
- White RAL 9003
- Not EN54-24
Electrical | |
Rated power | 6 / 3 / 1.5 / 0.75 W |
Sound pressure level at 6 W / 1 W (1 m) | 99 dB / 91 dB (SPL) |
Effective frequency range | 145 Hz to 18 kHz (-10 dB) |
Opening angle | 1 kHz / 4 kHz (-6 dB) |
horizontal | 168º / 89º |
vertical | 168º / 89º |
Rated input voltage | 100 V |
Rated impedance | 1667 ohm |
Connector | 4-pole screw terminal block |
Mechanical | |
Dimensions (H x W x D) | 205 mm x 160 mm x 66 mm (7.82 in x 6.07 in x 2.69 in) |
Weight | 0.83 kg (1.83 lb) |
Color LB10-UC06-FD | Black (RAL 9004) |
Color LB10-UC06-FL | White (RAL 9003) |
Environmental | |
Operating temperature | -25 ºC to +55ºC (-13 ºF to +131 ºF) |
Storage and transport temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
Relative humidity | <95% |
Know before you buy
Quick answers about the LB10-UC06-FL, and how it compares.
Which cabinet loudspeaker do I need?
| Model | Power | Build | SPL 1 W, 1 m | Frequency range | Use |
|---|---|---|---|---|---|
| LB1-UW06-FD1 / LB1-UW06-FL1 | 6 W | MDF, cloth front | 91 dB | 185 Hz to 17 kHz | Indoor |
| LB1-CW06-D1 / LB1-CW06-L1 | 6 W | MDF corner cabinet | 91 dB | 180 Hz to 20 kHz | Indoor corners |
| LB10-UC06-FL | 6 W | Flat ABS | 91 dB | 145 Hz to 18 kHz | Indoor |
| LB10-UC06-L / LB10-UC06V-L | 6 W | ABS, angled front; V with volume control | 91 dB | 145 Hz to 18 kHz | Indoor |
| LB7-UC06E | 6 W | ABS, metal grille, EN54-24 | 93 dB | 170 Hz to 20 kHz | Voice alarm |
| LB8-UM06E | 6 W | Square metal, EN54-24 | 93 dB | 210 Hz to 18 kHz | Voice alarm |
| LB1-BW12-D1 / LB1-BW12-L1 | 12 W | MDF, bidirectional | 86 dB | 140 Hz to 20 kHz | Corridors |
| LB2-UC15-D1 / LB2-UC15-L1 | 15 W | ABS, aluminium grille, IP65 | 87 dB | 95 Hz to 20 kHz | Indoor and outdoor |
| LB2-UC30-D1 / LB2-UC30-L1 | 30 W | ABS, aluminium grille, IP65 | 90 dB | 100 Hz to 19 kHz | Indoor and outdoor |
| LB1-UM20E-D / LB1-UM20E-L | 20 W | Aluminium, IP65, EN54-24 | 88 dB | 90 Hz to 20 kHz | Indoor, outdoor, voice alarm |
| LB1-UM50E-L | 50 W | Aluminium, IP65, EN54-24 | 91 dB | 90 Hz to 20 kHz | Indoor, outdoor, voice alarm |
Codes ending D are black or charcoal, L are white. For evacuation systems pick the EN54-24 LB1-UM models.
What do the power taps mean?
Each loudspeaker can be set to one of its power taps, for example 6 / 3 W. Choose a lower tap for small or quiet areas and a higher tap for large or noisy ones. Add up the taps of every loudspeaker on a line: the amplifier must deliver at least that total.
Many 6 W ceiling loudspeakers are tapped down to 3 W, 1.5 W or 0.75 W in the field; in smaller or low-noise areas 3 W is more than enough.
Who supplies Bosch loudspeakers in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch loudspeakers across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
