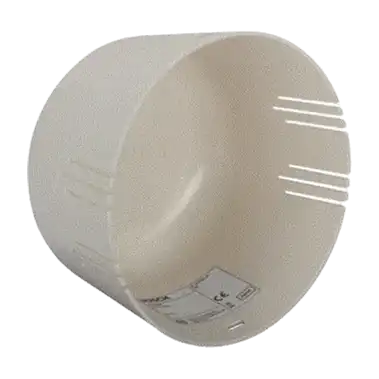

LC3-CBB
LC3 back box
ABS | Ø 148 x 96.3 mm | Snap-in | EN54-24 for LC3-UC06E
LC3-CBB
LC3 back box
ABS | Ø 148 x 96.3 mm | Snap-in | EN54-24 for LC3-UC06E
Key specs
- Back box for LC3-UC06 and LC3-UC06E
- Ø 148 mm, depth 96.3 mm, 110 g
- ABS, RAL 9010 white
- Snap-in, knock-outs for 2 grommets and 2 glands
- EN54-24 and IP21C with LC3-UC06E
|
Key Specifications |
|
|
Color |
White |
|
Material |
Plastic |
|
Operating temperature (°C) |
-25 – 55 °C |
|
Storage temperature (°C) |
-40 – 70 °C |
|
Weight (g) |
110 G |
|
Weight (lb) |
0.24 lb |
|
Color |
White |
|
Material |
Plastic |
Know before you buy
Quick answers about the LC3-CBB, and how it compares.
Which fire dome or back box fits my ceiling loudspeaker?
- LBC3080/01: steel fire dome, flame red RAL 3000, EN54-24 certified, for LBC3090/01, LBC3090/31, LHM0606/10, LHM0606/00, LHM0626/00 and LBC3087/41. A white version, LBC3080/11, is available (ask us).
- LBC3081/02: steel fire dome, flame red, for LBC3086/41. With it, the LBC3086/41 is EN54-24 certified.
- LC3-CBB: ABS back box for the LC3 range. The LC3-UC06E is EN54-24 only with it.
- LC1-MFDS metal fire dome, LC1-CMR mounting ring with LC1-CBB back box, or LC1-MMSB bracket: housings for the LC1 range.
The LC3-UM06E and the new Mid and Performance Level models have a metal fire dome built in.
