LBC3081/02
Steel fire dome for LBC3086/41
Steel | Flame red RAL 3000 | For LBC3086/41 | Makes it EN54-24
LBC3081/02
Steel fire dome for LBC3086/41
Steel | Flame red RAL 3000 | For LBC3086/41 | Makes it EN54-24

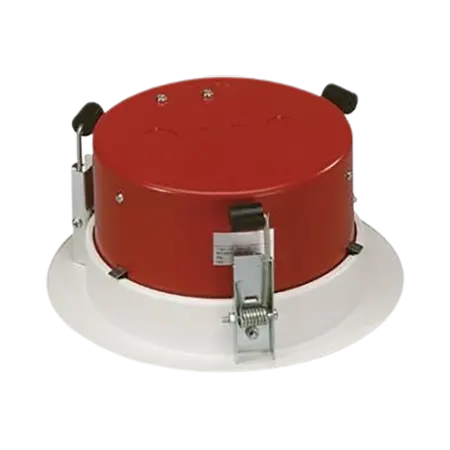

🔥 Metal Fire Dome for LBC 3086/41 Ceiling Loudspeaker
Model: LBC 3081/02
Overview
During a fire, ceiling cavities can allow flames to spread rapidly throughout a building. The LBC 3081/02 Steel Fire Dome is designed to prevent fire from entering the ceiling cavity through the loudspeaker opening, helping to improve overall building fire safety.
📝 Description
This optional steel fire dome is installed by clicking it into the loudspeaker mounting ring using three integrated leaf springs before inserting the loudspeaker.
For added convenience, a built-in safety cord allows the installer to temporarily hang the loudspeaker during installation. After installation, the cord continues to provide additional reassurance.
The fire dome is provided with knockout holes for two supplied grommets and two PG13 cable glands, allowing secure and flexible cable entry.
✅ Key Features
- 🔥 Prevents fire spread through ceiling cavities
- 🛡️ Durable steel construction
- ⚙️ Easy installation with leaf-spring mounting system
- 🔗 Safety cord for secure and convenient installation
- 🔌 Knockout holes for grommets and PG13 cable glands
Key specs
- Metal fire dome for LBC3086/41
- Steel, flame red RAL 3000
- LBC3086/41 becomes EN54-24, BS 5839-8, IP32
Know before you buy
Quick answers about the LBC3081/02, and how it compares.
Which fire dome or back box fits my ceiling loudspeaker?
- LBC3080/01: steel fire dome, flame red RAL 3000, EN54-24 certified, for LBC3090/01, LBC3090/31, LHM0606/10, LHM0606/00, LHM0626/00 and LBC3087/41. A white version, LBC3080/11, is available (ask us).
- LBC3081/02: steel fire dome, flame red, for LBC3086/41. With it, the LBC3086/41 is EN54-24 certified.
- LC3-CBB: ABS back box for the LC3 range. The LC3-UC06E is EN54-24 only with it.
- LC1-MFDS metal fire dome, LC1-CMR mounting ring with LC1-CBB back box, or LC1-MMSB bracket: housings for the LC1 range.
The LC3-UM06E and the new Mid and Performance Level models have a metal fire dome built in.
Who supplies Bosch loudspeakers in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch loudspeakers across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
