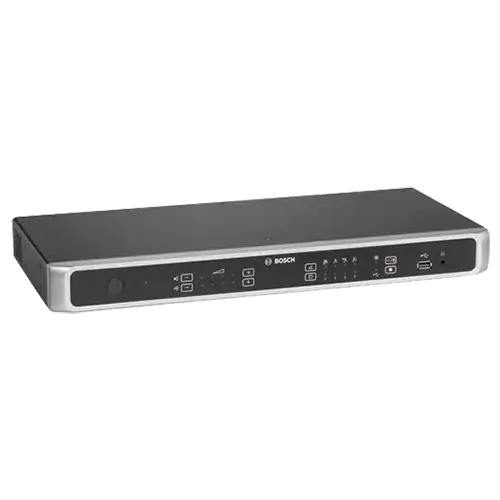

Bosch CCSD-CURD Product Highlights
Explore the key capabilities of the Bosch CCSD-CURD Control Unit with recorder and DAFS, the heart of a CCS 1000 D system.Plug and Play, 80 Devices
Powers and controls up to 80 discussion devices, added or removed without a restart.
Built-in MP3 Recorder
Records to internal memory or a USB stick up to 128 GB, about 4,000 hours.
Feedback Suppression
DAFS stops howling, so loudspeakers can be set as loud as needed.
Web Browser Control
Configure and run the system from a tablet, laptop or PC, plus a RESTful API.
Automatic Camera Control
Up to six cameras follow the speaker: ONVIF Profile-S, Panasonic and Sony.
Four Discussion Modes
Open, override, voice activation and push to talk, up to 25 open microphones.
Technical Specifications
Key specs
- Up to 80 devices, 2 trunks of 40
- Up to 245 devices with CCSD-EXU
- MP3 recorder: internal and USB
- DAFS feedback suppression
- Open, override, voice, push-to-talk
- Up to 6 cameras, ONVIF Profile-S
- 4 RCA outputs for individual recording
- 19-inch, 1 RU, 3.4 kg
Supply voltage Adaptor | 100 to 240 VAC, 50/60 Hz |
Current Consumption voltage Adaptor | 1.9 A (100 VAC) to 1 A 240 (VAC) |
DC voltage Control Unit | 24 V, 6.0 A |
Maximum number of Discussion Devices for Control Unit (without Extension Unit) | 40 Discussion Devices per trunk 80 Discussion Device in total 24 V, Max 5.2 A (short-circuited protected) |
Discussion Device loudspeakers volume control | 15 steps of 1.5 dB (starting from -10.5 dB) |
Limit threshold level to unit | 12 dB above nominal level |
Gain reduction due to number of open microphones (NOM) | 1/SQRT (NOM) |
Sample rate | 44.1 kHz |
Frequency response | 30 Hz to 20 kHz |
Ethernet speed | 1 Gb/s |
Nominal input (85 dB SPL) | < 0.5% |
Max. input (110 dB SPL) | < 0.5% |
XLR nominal microphone input | -56 dBV |
XLR maximum microphone input | -26 dBV |
RCA nominal input | -24 dBV (+/- 6 dB) |
RCA maximum input | +6 dBV |
S/N | > 93 dBA |
Frequency response | 30 Hz to 20 kHz |
THD | <0.1% |
RCA nominal output | -24 dBV (+6/- 24 dB) |
RCA maximum output | +6 dBV |
S/N | > 93 dBA |
Frequency response | 30 Hz to 20 kHz |
THD | <0.1% |
Recording/ Playback (bit rate) | 64, 96, 128, 256 Kbit/sec |
Recording/ Playback (sample frequency) | 44.1 kHz |
Nominal output | 72 dB SPL |
Frequency response | 200 Hz to 16 kHz (acoustical) |
Gain range | Mute -10.5 to +12 dB |
SanDisk USB memory stick | Formatted with FAT32 file system. Maximum size: 128 GB. |
Dimensions including feet (H x W x D) | 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high |
Height of feet | 5.5 mm (0.2 in) |
Mounting | Tabletop or 19 “ rack |
Material (top and base) | Painted metal |
Color (top and base) | Traffic black (RAL 9017) matt- gloss |
Rim front panel | Pearl light grey (RAL 9022) matt- gloss |
Weight (CCSD‑CURD) | Approx. 3.4 kg (7.5 lb) |
|
Operating temperature |
5 ºC to +45 ºC (+41 ºF to +113 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
5% to 98% non-condensing |
Know before you buy
Quick answers about the CCSD-CURD, and how it compares.
What does the built-in recorder do?
It records discussions as MP3 to the internal memory (up to 8 hours) or to a USB stick of up to 128 GB (up to 4,000 hours at 64 kbit/s). Files are split per hour with date and time; continuous recording, for example for courtrooms, can be set. Four RCA outputs record individual microphones. The built-in monitor loudspeaker and headphone socket let you listen live or pre-listen to recordings.
What is DAFS?
Digital Acoustic Feedback Suppression stops howling (the Larsen effect), so the loudspeaker volume can be as loud as needed for clear speech without feedback.
Which cameras can it control?
ONVIF Profile-S cameras are discovered automatically, plus Panasonic AW-HE40, HE50, HE60, HE120, HE130, AW-UE70 and Sony SRG-300SE / SRG-360SHE over IP. Up to six cameras and a video switcher (TvOne CORIOmatrix or Kramer MV-6), with HD-SDI switching to hall displays.
What else can be connected?
- XLR input with phantom power for a wired or wireless guest microphone
- RCA input for music or another audio source, RCA output to a sound reinforcement system
- One RCA in/out for a recorder, an audio processor, a telephone or video link, or the participant loudspeaker signal
- Ethernet for the web browser interface and API, micro USB for updates and copying recordings
CCSD-CURD or CCSD-CU?
Both power up to 80 devices with the same connections and web browser interface. The CCSD-CURD adds the MP3 recorder, DAFS, the monitor loudspeaker and headphone socket, and four RCA outputs for individual recording. The CCSD-CU (ask us) has none of these.
Which discussion modes does CCS 1000 D have?
- Open: participants press to speak; when the open microphones are full, the next request joins the waiting list.
- Override: a new speaker switches off the microphone that has been on longest (never the chairperson).
- Voice activation: microphones switch on when someone speaks; hold the button to mute.
- Push to talk: the microphone is on while the button is held.
Up to 4 open microphones are set on the control unit, up to 25 in the web browser interface. An interruption microphone, for example at a podium, always gets the floor.
What do I need for a CCS 1000 D system?
- A control unit: CCSD-CURD with MP3 recorder and feedback suppression, or CCSD-CU (ask us) without them. It powers and controls up to 80 discussion devices on two trunks of 40.
- Extension units for bigger rooms: each CCSD-EXU powers up to 85 more devices, for a maximum of 245.
- Tabletop devices: CCSD-DL2 (long microphone) or CCSD-DS2 (short microphone), each set as participant or chairperson.
- Flush devices: CCSD-FDL for participants and CCSD-FCML for the chairperson, both with long microphones; short-microphone CCSD-FDS (ask us) and CCSD-FCMS (ask us). Up to 35 flush devices per trunk.
- A tablet, laptop or PC for the web browser interface and advanced settings.
Devices daisy-chain with their own 2 m cables and are plug and play: no restart when you add or remove one.
Who supplies Bosch CCS 1000 D in the UAE, and what warranty do I get?
Protechtors General Trading LLC (hik.ae) is an authorized partner of Bosch, Dynacord and Electro-Voice in the UAE, so everything we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to our office in Dubai and after inspection it is repaired or replaced as needed.
We supply Bosch CCS 1000 D across the UAE and support you after the sale. Prices are quoted per project: tell us what you need and we will send a quote.
